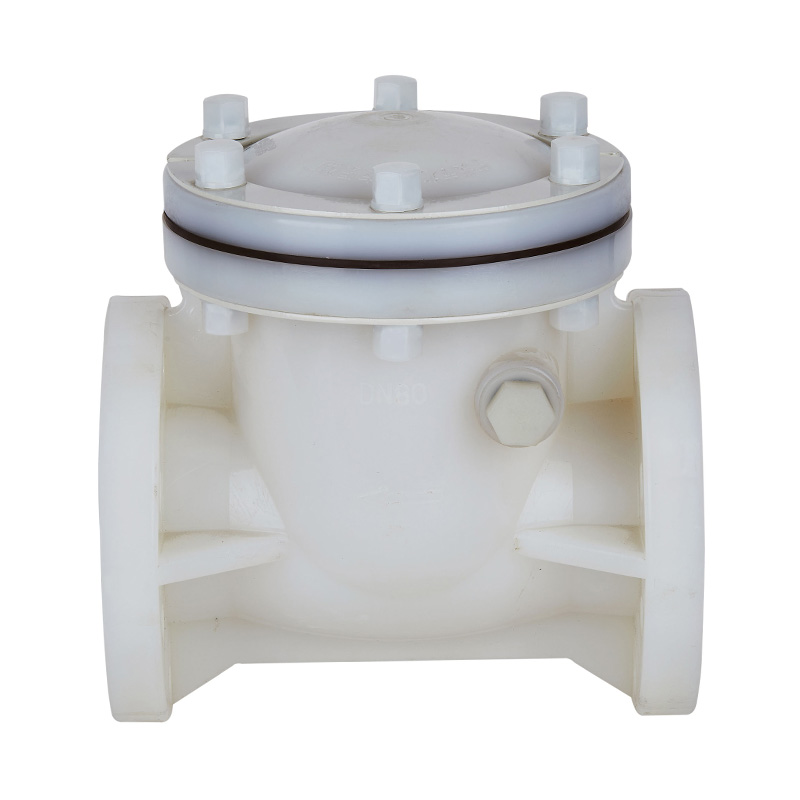

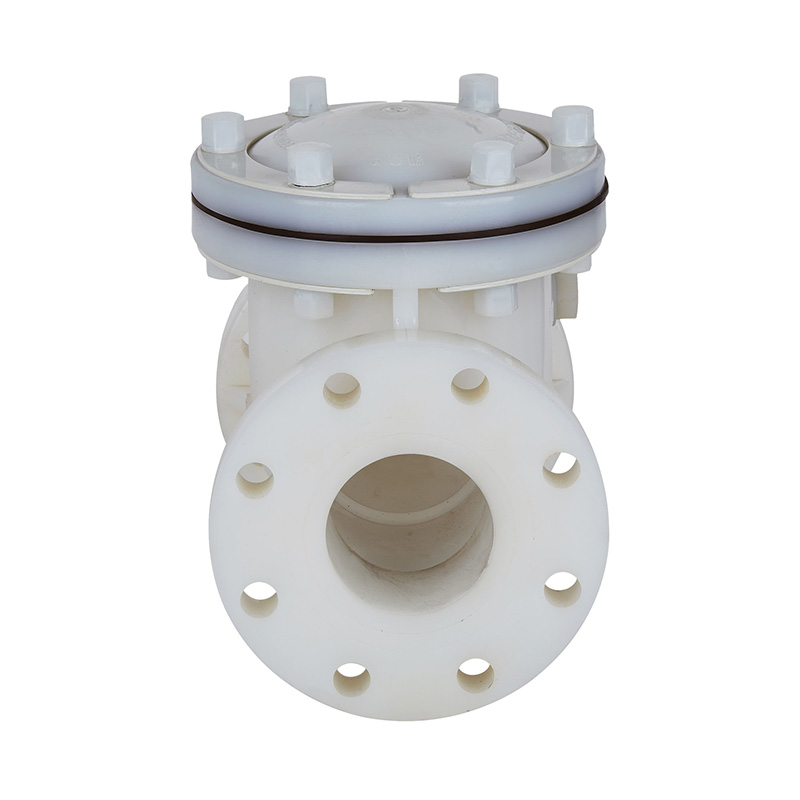

PVDF H44F-10F Swing Type Check Valve DN15-300 GB Standard

PVDF Wafer Swing Check Valve DN15-DN300 Industrial and Sanitary Plastic Check Valve
Type: Plastic Check Valves
Origin: China
Brand Name: KXPV
Model Number: H44F-10F
Application: General
Temperature of Media: Medium Temperature, Normal Temperature
Power: Manual
Media: Acid
Port Size: DN15-DN300
Structure: Check
Product name: Wafer Check valve
Color: White
Packing: Carton Box
Delivery Time: 7 Days
MOQ: 1 Piece

Pressure Class: 1.0Mpa(10bar)

Product Structural Features

1.To prevent the phenomenon of liquid counter-current to protect the pump equipment.
2.Because it is a cantilever check valve, there is less resistance to flow.
3.Using all plastic materials, it provides outstanding resistance to corrosive fluids such as acids and alkalis.
4.Not only remove the valve body from the piping, but also open the bonnet for internal inspection and maintenance.



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table

No.

Name

Material

1

Cap nut

FRPP

2

Bonnet

FRPP,PVDF,PVC-C,PVC-U,PPH

3

Rocker

FRPP,PVDF,PVC-C,PVC-U,PPH

4

Capping

FRPP,PVDF,PVC-C,PVC-U,PPH

5

Sealing ring

EPDM,FPM

6

Seal nut

FRPP,PVDF,PVC-C,PVC-U,PPH

7

Connecting rod

FRPP,PVDF,PVC-C,PVC-U,PPH

8

Body

FRPP,PVDF,PVC-C,PVC-U,PPH

9

Hexagon bolt

Steel,StainlessSteel

10

O-rings

EPDM,FPM

11

Hexagon bolt

FRPP,PVDF,PVC-C,PVC-U,PPH

12

Filling plece

Steel,StainlessSteel

13

Hexagonal nut

Steel,StainlessSteel



Swing Type Check Valve Assembly Detail Drawing



Dimension List



DN(mm) D d L b n-Φ
GB JIS ANSI GB JIS ANSI
15(1/2") 115  65  70  160  18  4-Φ14 4-Φ15
20(3/4") 115  75  75  69.9  160  18  4-Φ14 4-Φ15 4-Φ16
25(1") 115  85  90  79.4  160  18  4-Φ18 4-Φ19 4-Φ16
32(11/4") 145  100  100  170  20  4-Φ18 4-Φ19
40(11/2") 145  110  105  98.4  170  20  4-18 4-Φ19 4-Φ16
50(2") 160  125  120  120.7  200  21  4-Φ18 4-Φ19 4-Φ18
65(21/2") 180  145  140  139.7  245  25  4-Φ18 4-Φ19 4-Φ18
80(3") 195  160  150  152.4  265  26  8-Φ18 8-Φ19 4-Φ18
100(4") 230  180  175  190.5  300  26  8-Φ18 8-Φ19 8-Φ18
125(5") 250  210  210  215.9  350  30  8-Φ18 8-Φ23 8-Φ22
150(6") 280  240  240  241.3  400  30  8-Φ22 8-Φ23 8-Φ22
200(8") 340  295  290  298.5  500  30  8-P22 12-Φ23 8-Φ22
250(10") 390  350  355  362  575  38  12-Φ22 12-Φ25 12-Φ26
300(12") 445  400  400  575  38  12-p22 16-Φ25
