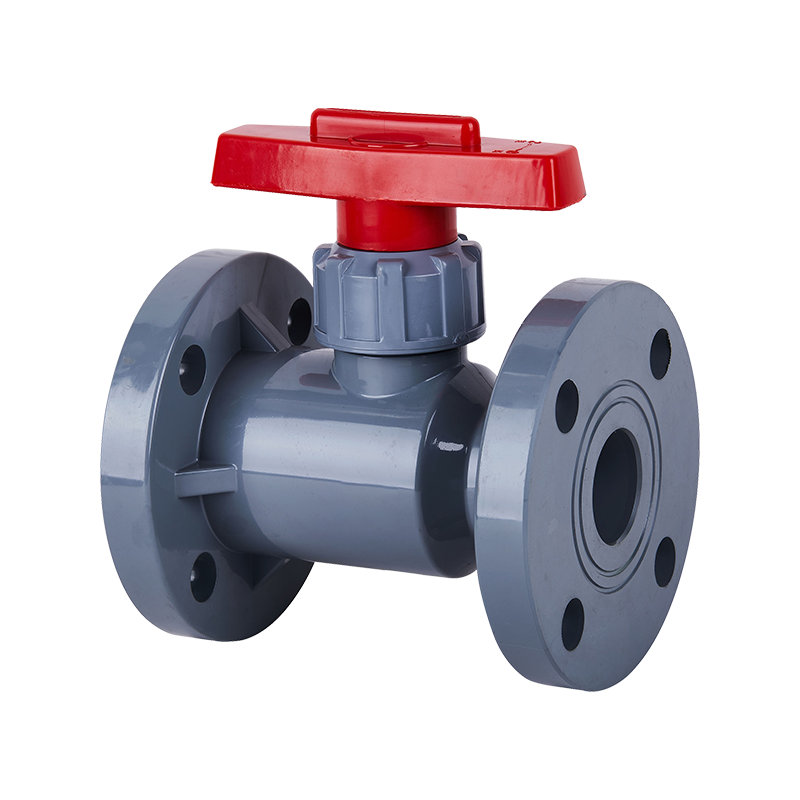

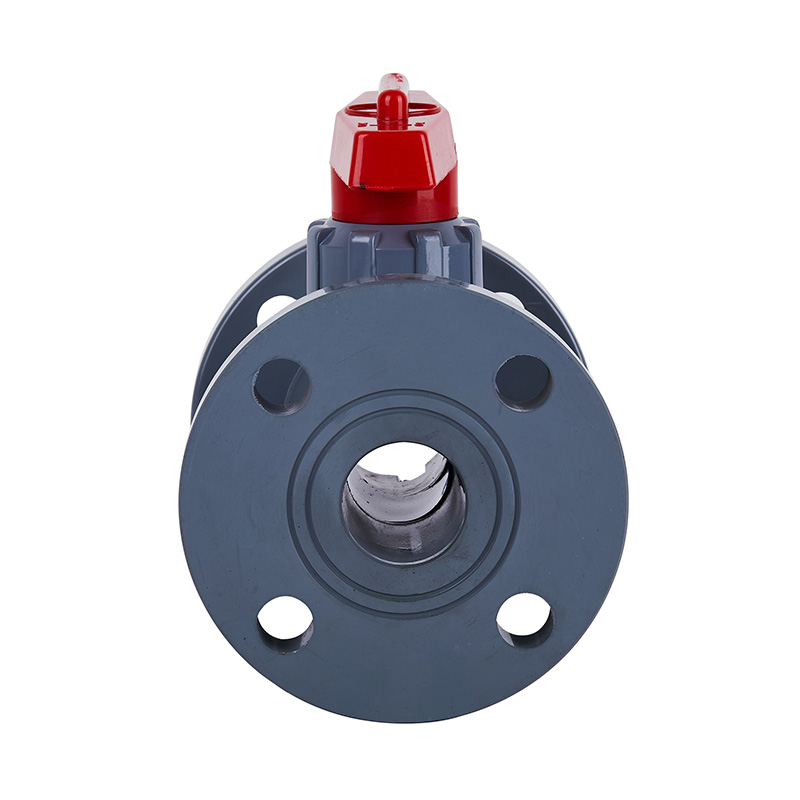

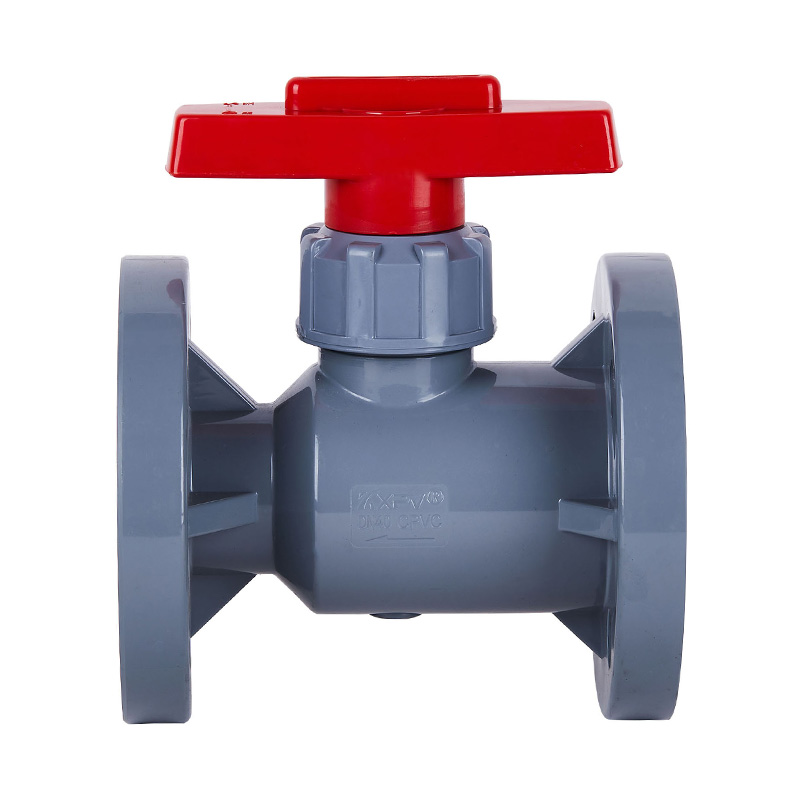

Heat Resistant Plastic CPVC Bodily Form Ball Valve

Heat Resistant Plastic CPVC Bodily Form Ball Valve

Heat Resistant DN15-DN300 Manual Plastic CPVC PVC Bodily Form Industrial Flanged Ball Valve ANSI Standard Plumbing material for water supply

Type:BALL VALVES, 2way

Model Number:Q41F-10V

Application:General

Temperature of Media:High Temperature, Low Temperature

Power:Manual

Media:Acid

Port Size:DN15-DN300

Structure:Ball

Standard:ANSI

Body material:CPVC

Seal Material:PTFE VITON

End Connection:Falnge

Warranty:1year

MOQ:1 Pc

Delivery Time:7 Days

Supply Ability:10000 Piece/Pieces per Day

Contact Us

Heat Resistant Plastic CPVC Bodily Form Ball Valve Details

Main structural features
1.  Engineering plastic series ball valve adopts FRPP,PVDF, CPVC, UPVC, PPH etc the corrosion resistance thermoplastic plastic which formed in a single injection molding and has a strong ability to resist corrosion.
2. Reliable seal,small opening and closing torque Opening and closing torque .
3. Small fluid resistance,Open/close quickly.
4. Simple structure,beautiful appearance.



App temperature bound list



Material Medium temperature°C Material Medium temperature°C
RPP -14℃~+90℃ PVDF -40℃~+140℃
UPVC -10℃~+70℃ CPVC -20℃ ~+95℃





Part material list



No. Name Material
1 Handle FRPP、PVDF、UPVC、CPVC、PPH
2 Retaining Nut FRPP、PVDF、UPVC、CPVC、PPH
3 Inner Plug FRPP、PVDF、UPVC、CPVC、PPH
4 Stem FRPP、PVDF、UPVC、CPVC、PPH
5 Stem seal PTFE
6 Sealed ball PTFE
7 Seal seat FRPP、PVDF、UPVC、CPVC、PPH
8 Ball FRPP、PVDF、UPVC、CPVC、PPH
9 Body FRPP、PVDF、UPVC、CPVC、PPH
