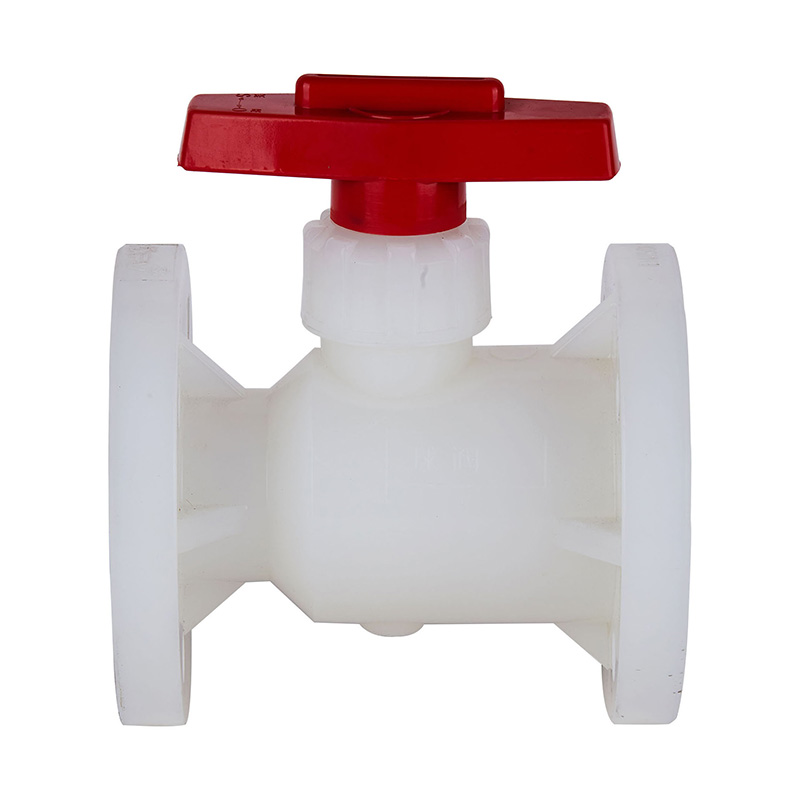

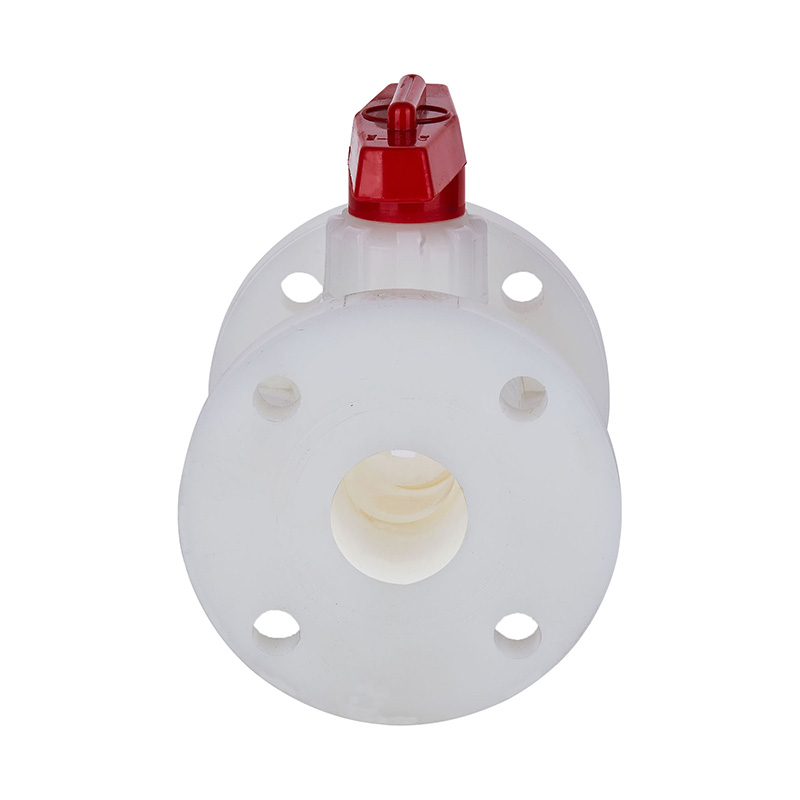

Best quality White 3 Inch 5 Inch 10 Inch PVDF Bodily Form Ball Valve two way Plastic PVDF segment trunnion Flange Ball Valve
Model NO.:Q41F-10F
Type:BALL VALVES, 2way
Material:Plastic
Colour:White
Connection Form:Flange
Driving Mode:Manual
Nominal Pressure:10kg
Channel:Straight Through Type
Structure:Fixed Ball Valve
Body material:PVDF
Function:Bypass-Valve
Temperature:High Temperature
Application:Industrial Usage, Water Industrial Usage
Specification:DN15-DN300
Standard:ANSI
Seal Material:PTFE
Origin:Beilun Ningbo China
HS Code:8481804090
MOQ:2 Pc
Main structural features
1. Engineering plastic series ball valve adopts FRPP,PVDF, CPVC, UPVC, PPH etc the corrosion resistance thermoplastic plastic which formed in a single injection molding and has a strong ability to resist corrosion.
2. Reliable seal,small opening and closing torque Opening and closing torque .
3. Small fluid resistance,Open/close quickly.
4. Simple structure,beautiful appearance.
App temperature bound list |
Material | Medium temperature°C | Material | Medium temperature°C |
RPP | -14℃~+90℃ | PVDF | -40℃~+140℃ |
UPVC | -10℃~+70℃ | CPVC | -20℃ ~+95℃ |
Part material list |
No. | Name | Material |
1 | Handle | FRPP、PVDF、UPVC、CPVC、PPH |
2 | Retaining Nut | FRPP、PVDF、UPVC、CPVC、PPH |
3 | Inner Plug | FRPP、PVDF、UPVC、CPVC、PPH |
4 | Stem | FRPP、PVDF、UPVC、CPVC、PPH |
5 | Stem seal | PTFE |
6 | Sealed ball | PTFE |
7 | Seal seat | FRPP、PVDF、UPVC、CPVC、PPH |
8 | Ball | FRPP、PVDF、UPVC、CPVC、PPH |
9 | Body | FRPP、PVDF、UPVC、CPVC、PPH |
