FRPP/Rpp Boddily Form Straight Through Type Ball Valve

FRPP/Rpp Boddily Form Straight Through Type Ball Valve

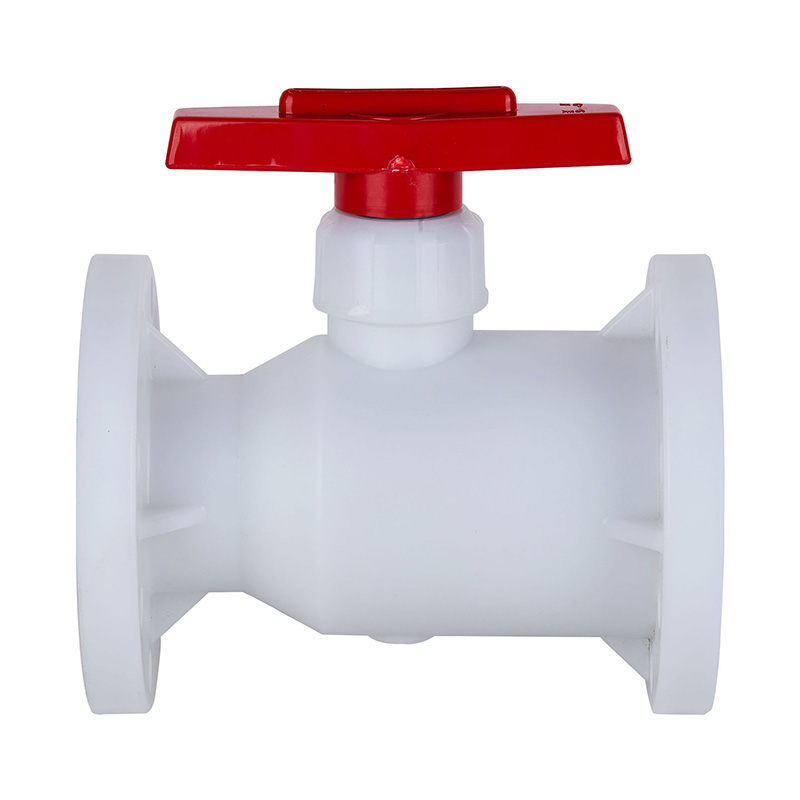

FRPP/Rpp Boddily Form DN15-DN100 Ball Valve Straight Through Type High Temperature Plastic Flange Fixed Ball Valve for Industrial Water Usage

Model NO.:Q41F-10S

Material:Plastic

Connection Form:Flange

Driving Mode:Manual

Nominal Pressure:10kg

Channel:Straight Through Type

Structure:Fixed Ball Valve

Function:Bypass-Valve

Temperature:High Temperature

Application:Industrial Usage, Water Industrial Usage

Specification:DN15-DN100

Origin:Beilun Ningbo China

HS Code:8481804090

Contact Us

FRPP/Rpp Boddily Form Straight Through Type Ball Valve Details

Main structural features
1.  Engineering plastic series ball valve adopts FRPP,PVDF, CPVC, UPVC, PPH etc the corrosion resistance thermoplastic plastic which formed in a single injection molding and has a strong ability to resist corrosion.
2. Reliable seal,small opening and closing torque Opening and closing torque .
3. Small fluid resistance,Open/close quickly.
4. Simple structure,beautiful appearance.



App temperature bound list



Material Medium temperature°C Material Medium temperature°C
RPP -14℃~+90℃ PVDF -40℃~+140℃
UPVC -10℃~+70℃ CPVC -20℃ ~+95℃





Part material list



No. Name Material
1 Handle FRPP、PVDF、UPVC、CPVC、PPH
2 Retaining Nut FRPP、PVDF、UPVC、CPVC、PPH
3 Inner Plug FRPP、PVDF、UPVC、CPVC、PPH
4 Stem FRPP、PVDF、UPVC、CPVC、PPH
5 Stem seal PTFE
6 Sealed ball PTFE
7 Seal seat FRPP、PVDF、UPVC、CPVC、PPH
8 Ball FRPP、PVDF、UPVC、CPVC、PPH
9 Body FRPP、PVDF、UPVC、CPVC、PPH
