UPVC Swing Type Wafer Insert Check Valve Manufacturers

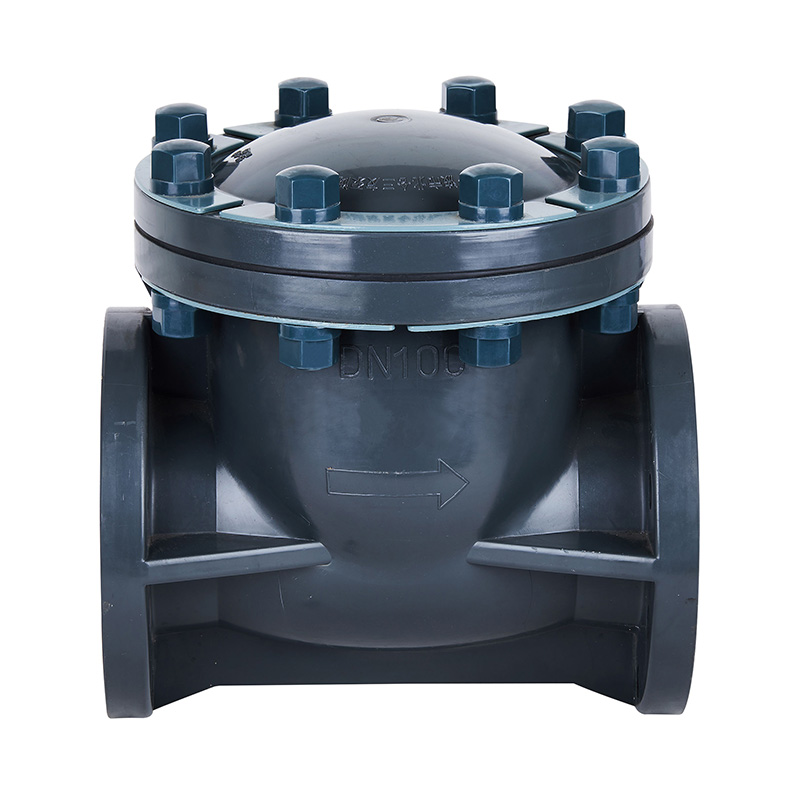

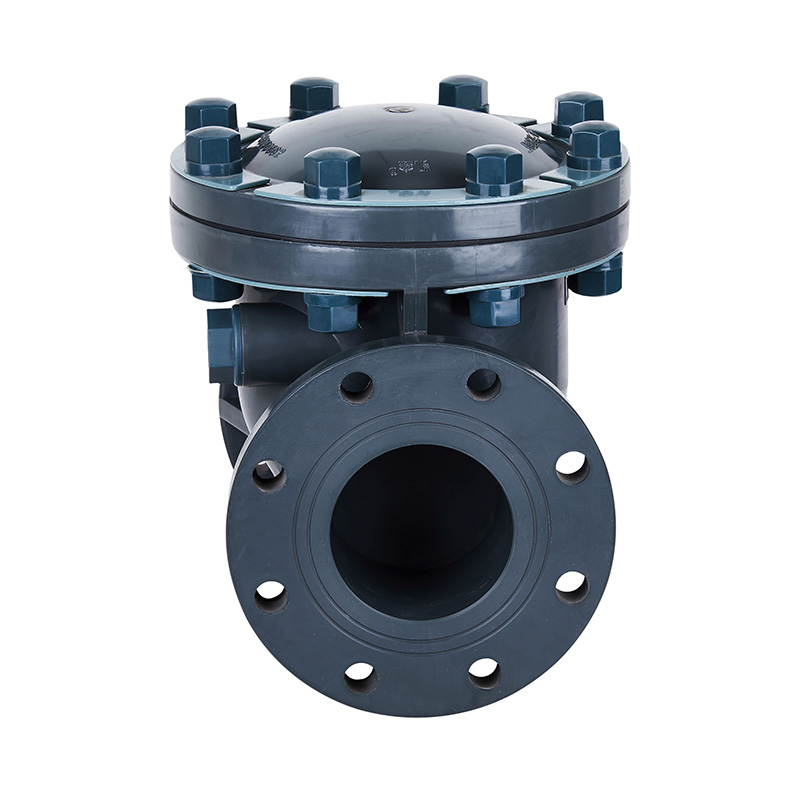

UPVC Swing Type Wafer Insert Check Valve

UPVC Swing Type Wafer Insert Check Valve

Competitive price UPVC Swing Type Check Valve Wafer Insert DN15-DN300 Plastic Valves For Drain and chemical industry

Place of Origin:China

Brand Name:KXPV

Model Number:H44F-10U

Application:General

Material:Plastic

Temperature of Media:Medium Temperature, Normal Temperature

Pressure:Medium Pressure

Power:Manual

Media:Acid

Port Size:DN15-DN300

Structure:Check

Product name:Wafer Check valve

Delivery Time:7 Days

MOQ:1 Piece

Color:Grey

Supply Ability:10000 Piece/Pieces per Month

Contact Us

UPVC Swing Type Wafer Insert Check Valve Details

Product structure features
1.To prevent the phenomenon of liquid counter-current to protect the pump equipment.
2.Because it is a cantilever check valve, there is less resistance to flow.
3.Using all plastic materials,it plays a Strong corrosion resistance to prevent acid and alkali fluid.
4.Not only remove the valve body from the piping, but also open the bonnet for internal inspection and maintenance.





Part material list



No. Name Material
1 Cap nut FRPP,PVDF,CPVC,UPVC,PPH
2 Bonnet FRPP,PVDF,CPVC,UPVC,PPH
3 Rocker FRPP,PVDF,CPVC,UPVC,PPH
4 Capping FRPP,PVDF,CPVC,UPVC,PPH
5 Seal ring EPDM,FPM
6 Seal nut FRPP,PVDF,CPVC,UPVC,PPH
7 Connecting rod FRPP,PVDF,CPVC,UPVC,PPH
8 Body FRPP,PVDF,CPVC,UPVC,PPH
9 Hexagon bolt Steel,Stainless steel
10 Rubber washer EPDM,FPM
11 Hexagon bolt FRPP,PVDF,CPVC,UPVC,PPH
12 Filling piece Steel,Stainless steel
13 Hex nuts Steel,Stainless steel
