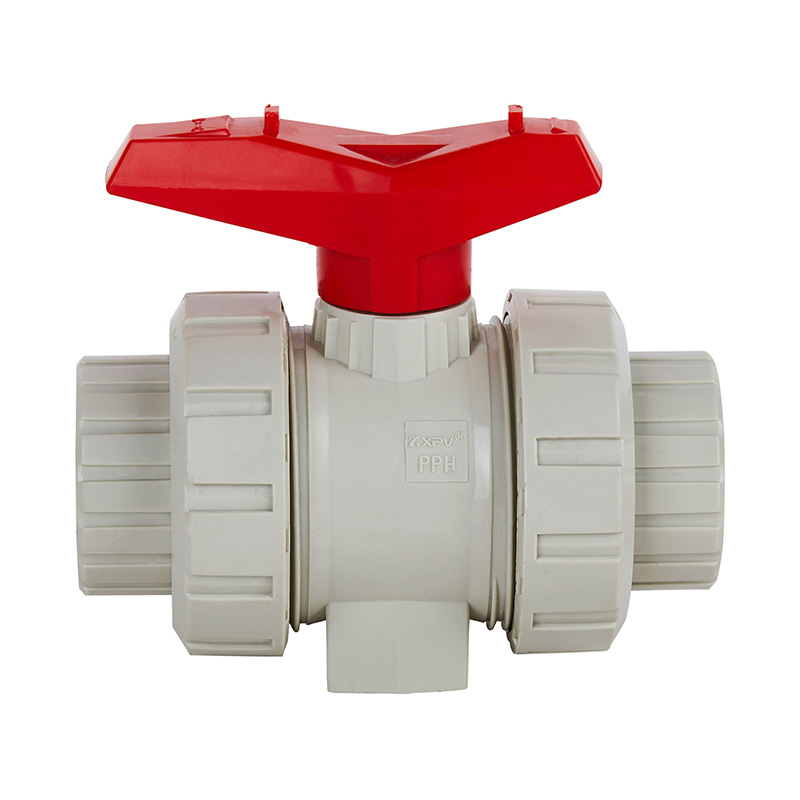

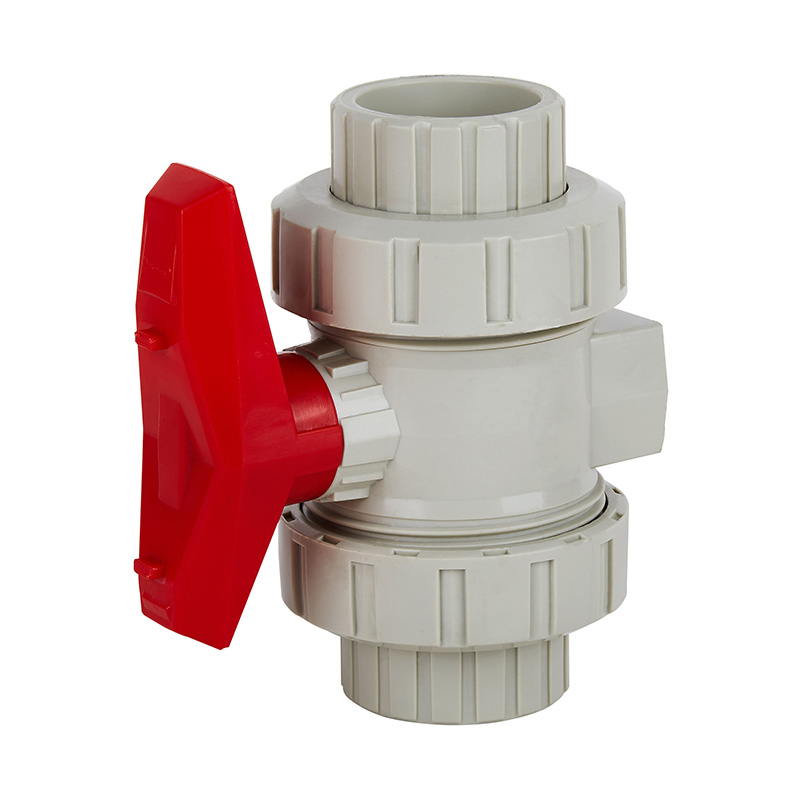

Earthy Yellow PPH Double Union Socket Ball Valve

Earthy Yellow PPH Double Union Socket Ball Valve

Earthy yellow custom size medium temperature PPH True Double Union Socket Ball Valve manual durable plastic industrial water valve

Model Number:Q61F-10S

Colour:Earthy Yellow

Application:General

Material:Plastic

Temperature of Media:Medium Temperature

Pressure:Low Pressure

Power:Manual

Media:Acid

Port Size:DN15-100 1/2"-4" 20mm-110mm

Structure:Ball

Product name:Socket Union ball valve

Body material:PPH

Connection:Union

Packing:Standard Carton Box

Design Standard:ISO STD

Seal Material:PTFE Seal

Delivery Time:7 Days

MOQ:1 Piece

Contact Us

Earthy Yellow PPH Double Union Socket Ball Valve Details

Main structural features
1.Good external seal performance With 3d CAD/CAE analysis, diaphragm valves are fitted with suitable depth of body and proper depth of screws. In addition, with high elastic rubber, the sealing performance of the valve is improved.
2.Easy to operate To reduce friction, the shape of the material and sliding parts has been updated. The proper seat shape improves the operating procedure.

Part material list



No. Name Material
1 Handle wheel Alloy material
2 Sealing ring EPDM、FPM
3 Stem FRPP、PVDF、UPVC、CPVC、PPH
4 Ball FRPP、PVDF、UPVC、CPVC、PPH
5 Sealing ring EPDM、FPM
6 Socket join FRPP、PVDF、UPVC、CPVC、PPH
7 Fight tight nut FRPP、PVDF、UPVC、CPVC、PPH
8 Inner Plug FRPP、PVDF、UPVC、CPVC、PPH
9 Ball seal PTFE
10 Body FRPP、PVDF、UPVC、CPVC、PPH
11 Sealing ring EPDM、FPM
12 Socket join FRPP、PVDF、UPVC、CPVC、PPH
13 Fight tight nut FRPP、PVDF、UPVC、CPVC、PPH
