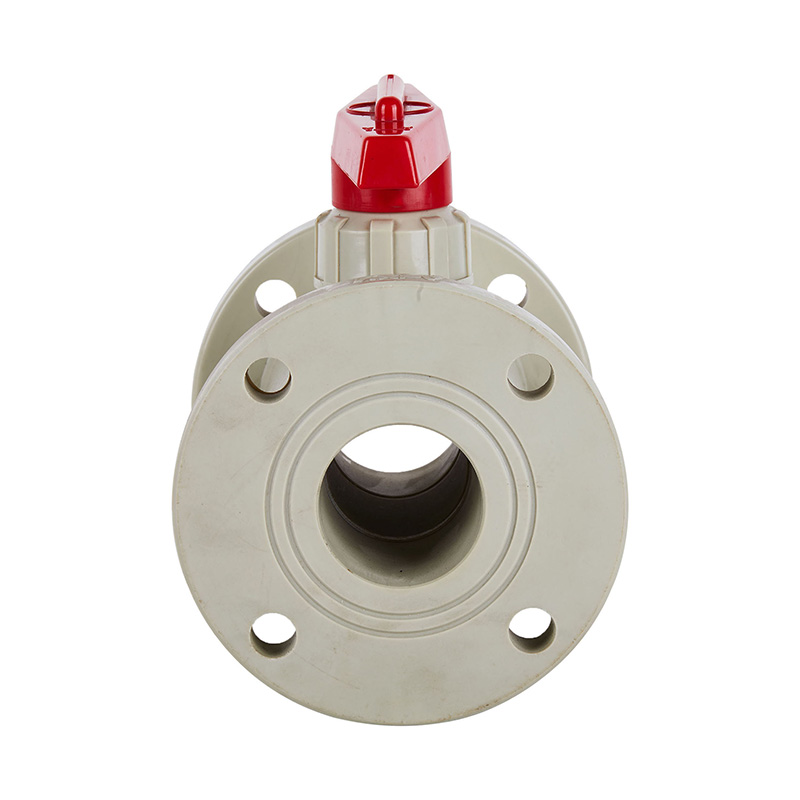

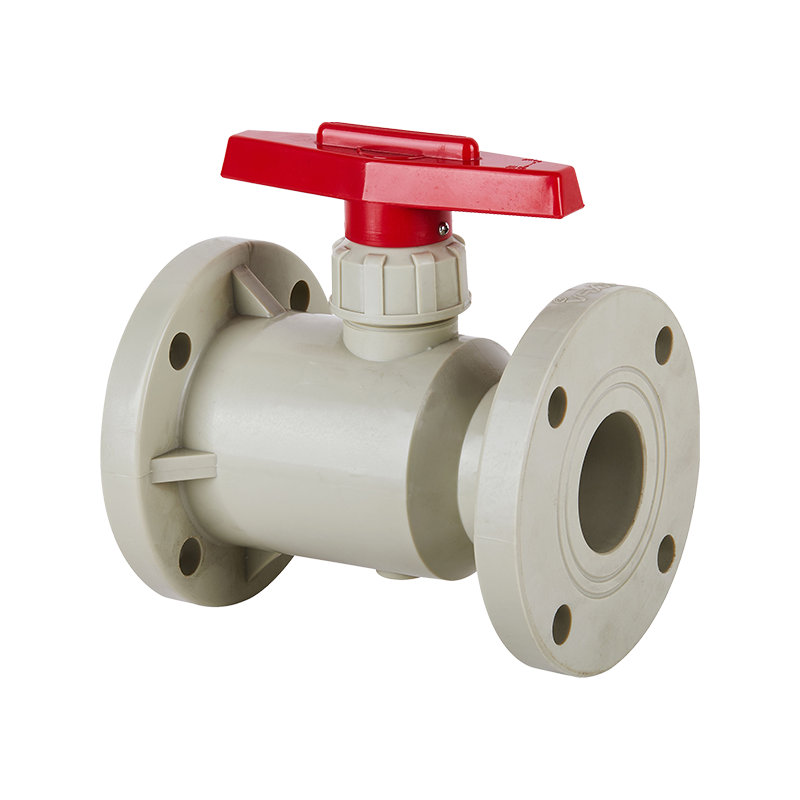

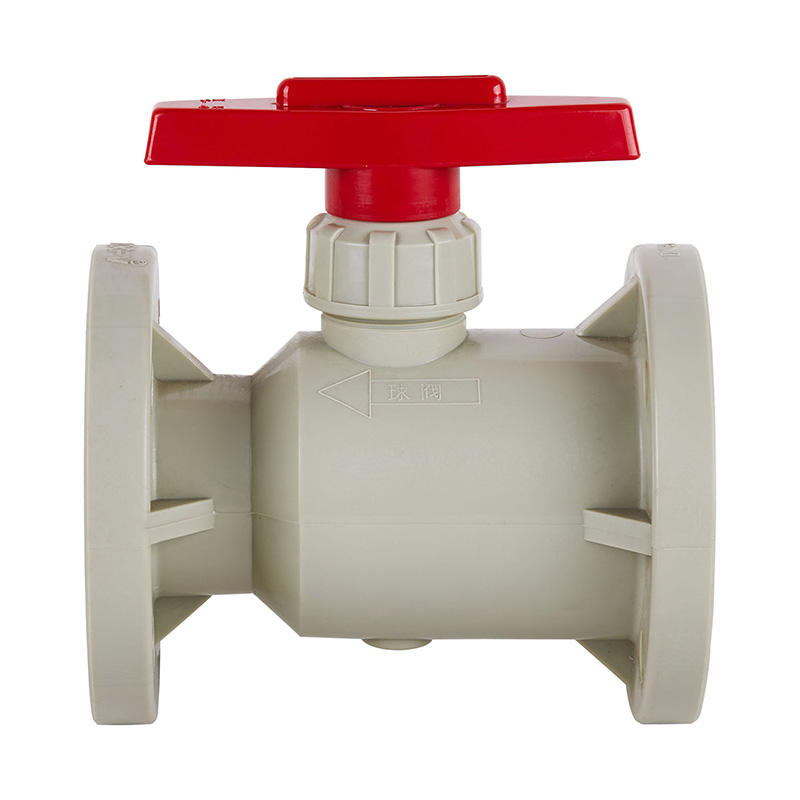

PPH Q41F-10S Flanged Ball Valve DN15-300 GB Standard

Factory supply high pressure sturable PPH Bodily Form Ball Valve custom mini 4 inch 10kg DN50-DN300 plastic industrial flange ball valve
Model Number: Q41F-10S
Material: Plastic
Connection Form: Flange
Driving Mode: Manual
Nominal Pressure: 10kg
Channel: Straight Through Type
Structure: Fixed Ball Valve
Function: Bypass-Valve
Temperature: High Temperature
Application: Industrial Usage, Water Industrial Usage
Specification: DN50-DN300
Standard: ANSI
Origin: Ningbo, Zhejiang
HS Code: 8481804090
MOQ: 2 Pc

Pressure Class: 1.0Mpa(10bar)

Product Structural Features

1.Engineering plastic series ball valve adopts FRPP, PVDF, PVC-C, PVC-U, PPH etc the corrosion resistance thermoplastic plastic which formed in a single injection molding and has a strong ability to resist corrosion.
2.Reliable seal, small opening and closing torque Opening and closing torque.
3.Small fluid resistance, Open/close quickly.
4.Simple structure, beautiful appearance.



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃



Boddily Form Ball Valve Assembly Detail Drawing





Part Material Table



No. Name Material
1 Handle Alloy material
2 Retaining Nut FRPP、PVDF、PVC-U、PVC-C、PPH
3 Locating ring FRPP、PVDF、PVC-U、PVC-C、PPH
4 Stem FRPP、PVDF、PVC-U、PVC-C、PPH
5 Stem seal PTFE
6 Sealed ball PTFE
7 Seal seat FRPP、PVDF、PVC-U、PVC-C、PPH
8 Ball FRPP、PVDF、PVC-U、PVC-C、PPH
9 Body FRPP、PVDF、PVC-U、PVC-C、PPH
Dimension List



DN(mm) D d L b n-φ
GB JIS ANSI   GB JIS ANSI GB JIS ANSI
15(1/2") 95  95    65  70  120  15  4-15 4-φ15
20(3/4") 105  100  100    75  75  69.9  120  16  4-φ15 4-φ15 4-16
25(1") 120  125  110    85  90  79.4  130  16  4-φ15 4-φ19 4-φ16
32(11/4") 135  135  115    100  100  88.9  145  18  4-Φ18 4-Φ19 4-16
40(11/2") 145  140  125    110  105  98.4  168  20  4-p18 4φ19 4-φ16
50(2") 160  155  150    125  120  120.7  180  20  4-φ19 4-φ19 4-18
65(21/2") 180  175  180    145  140  139.7  225  22  4-19 4-Φ19 4-φ18
80(3") 195  185  190    160  150  152.4  255  25  8-φ18.5 8-19 4-φ18
100(4") 229  210  229    180  175  190.5  280  25  8-Φ18.5X20 8-Φ19 8-Φ18.5X20
125(5") 254  250  254    210  210  215.9  350  30  8-Φ18.5X20 8-Φ23 8-φ22
150(6") 280  280  280    240  240  241.3  400  30  8-Φ24X27 8-Φ24X27 8-Φ24X27
200(8") 335  330  335    295  290  298.5  400  35  8-Φ23 12-Φ23 8-Φ22
250(10") 400  400  400    350  355  362  450  38  12-φ23X26 12-φ25 12-φ26
300(12") 440  440    400  400  450  38  12-Φ23 16-Φ25
