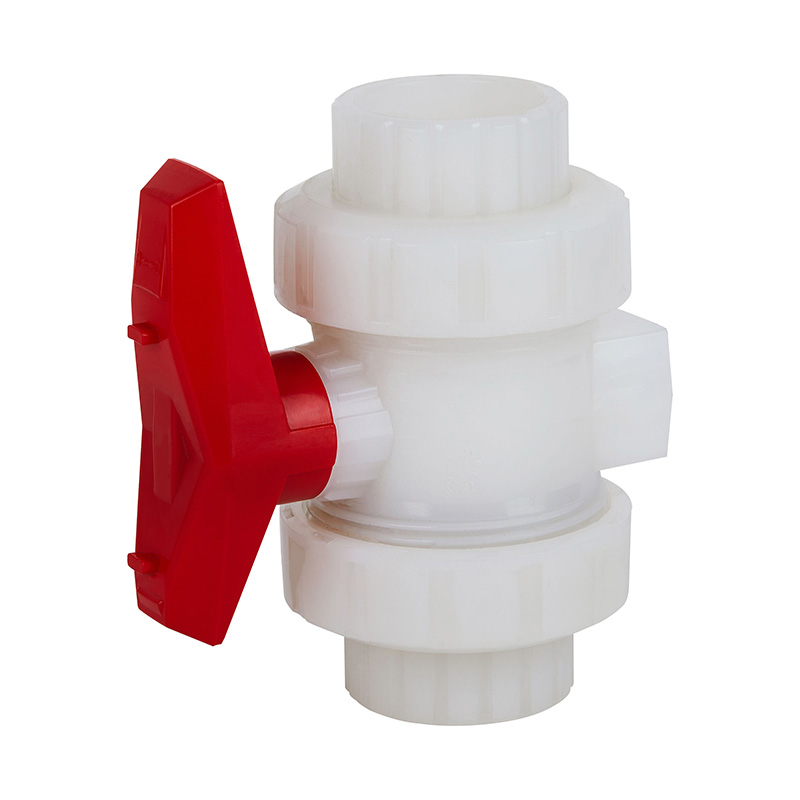

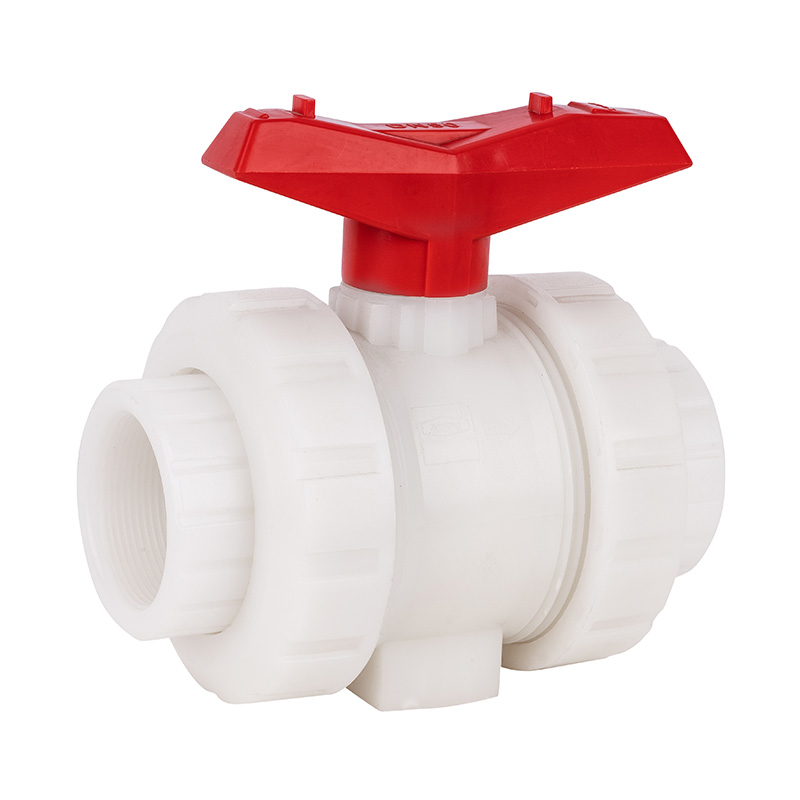

White 20mm-110mm high temperature super durable Standard PVDF Double Union Socket Ball Valve 1.0-1.6Mpa ISO STD Standard industry plastic valve
Model Number:Q61F-10F,Q11F-10F
Type:BALL VALVES
Colour: White
Application:General
Material:Plastic
Temperature of Media:High Temperature
Power:Manual
Media:Acid
Port Size:DN15-100 1/2"-4" 20mm-110mm
Structure:Ball
Product name:Socket Union ball valve
Body material:PVDF
Connection:Union
Working pressure:1.0-1.6Mpa (10-25bar)
Packing:Standard Carton Box
Design Standard:ISO STD
Seal Material:PTFE Seal
Delivery Time:7 Days
MOQ:1 Piece
Main structural features
1.Good external seal performance With 3d CAD/CAE analysis, diaphragm valves are fitted with suitable depth of body and proper depth of screws. In addition, with high elastic rubber, the sealing performance of the valve is improved.
2.Easy to operate To reduce friction, the shape of the material and sliding parts has been updated. The proper seat shape improves the operating procedure.
Part material list |
No. | Name | Material |
1 | Handle wheel | Alloy material |
2 | Sealing ring | EPDM、FPM |
3 | Stem | FRPP、PVDF、UPVC、CPVC、PPH |
4 | Ball | FRPP、PVDF、UPVC、CPVC、PPH |
5 | Sealing ring | EPDM、FPM |
6 | Socket join | FRPP、PVDF、UPVC、CPVC、PPH |
7 | Fight tight nut | FRPP、PVDF、UPVC、CPVC、PPH |
8 | Inner Plug | FRPP、PVDF、UPVC、CPVC、PPH |
9 | Ball seal | PTFE |
10 | Body | FRPP、PVDF、UPVC、CPVC、PPH |
11 | Sealing ring | EPDM、FPM |
12 | Socket join | FRPP、PVDF、UPVC、CPVC、PPH |
13 | Fight tight nut | FRPP、PVDF、UPVC、CPVC、PPH |
