PPH Swing Type Wafer Check Valve

PPH Swing Type Wafer Check Valve

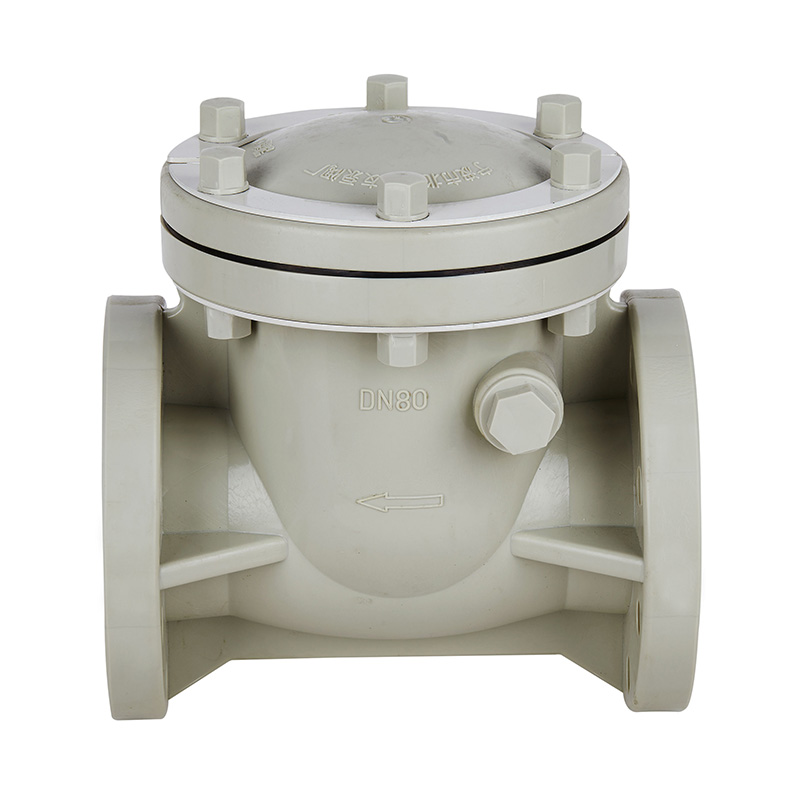

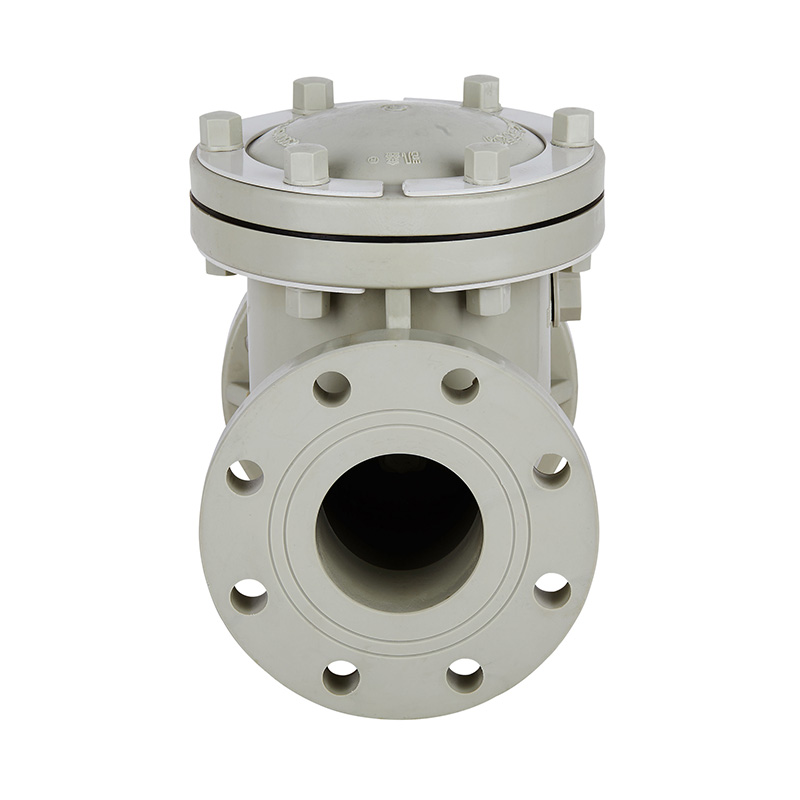

Earthy Yellow PPH Swing Type Wafer Check Valve Custom 10 Inch DN15-DN300 Plastic Industrial Flap Silent Manual Check Valve For Sewage

Place of Origin:China

Brand Name:KXPV

Model Number:H44F-10S

Application:General

Material:Plastic

Temperature of Media:Medium Temperature, Normal Temperature

Pressure:Medium Pressure

Power:Manual

Media:Acid

Port Size:DN15-DN300

Structure:Check

Product name:Wafer Check valve

Color:Earthy Yellow

Packing:Carton Box

Delivery Time:7 Days

MOQ:1 Piece

Contact Us

PPH Swing Type Wafer Check Valve Details

Product structure features
1.To prevent the phenomenon of liquid counter-current to protect the pump equipment.
2.Because it is a cantilever check valve, there is less resistance to flow.
3.Using all plastic materials,it plays a Strong corrosion resistance to prevent acid and alkali fluid.
4.Not only remove the valve body from the piping, but also open the bonnet for internal inspection and maintenance.


Part material list



No. Name Material
1 Cap nut FRPP,PVDF,CPVC,UPVC,PPH
2 Bonnet FRPP,PVDF,CPVC,UPVC,PPH
3 Rocker FRPP,PVDF,CPVC,UPVC,PPH
4 Capping FRPP,PVDF,CPVC,UPVC,PPH
5 Seal ring EPDM,FPM
6 Seal nut FRPP,PVDF,CPVC,UPVC,PPH
7 Connecting rod FRPP,PVDF,CPVC,UPVC,PPH
8 Body FRPP,PVDF,CPVC,UPVC,PPH
9 Hexagon bolt Steel,Stainless steel
10 Rubber washer EPDM,FPM
11 Hexagon bolt FRPP,PVDF,CPVC,UPVC,PPH
12 Filling piece Steel,Stainless steel
13 Hex nuts Steel,Stainless steel
