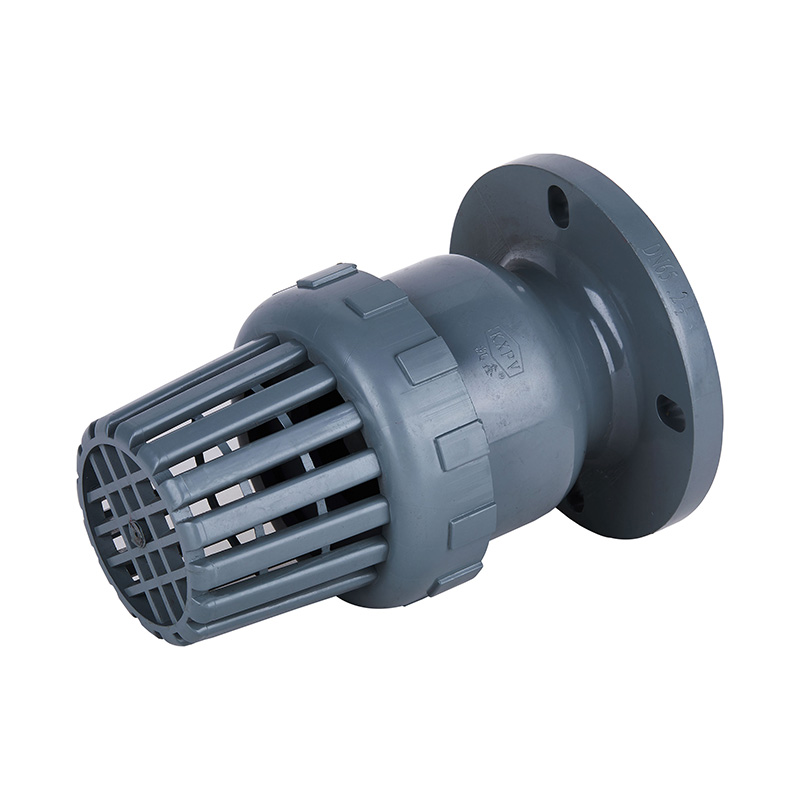

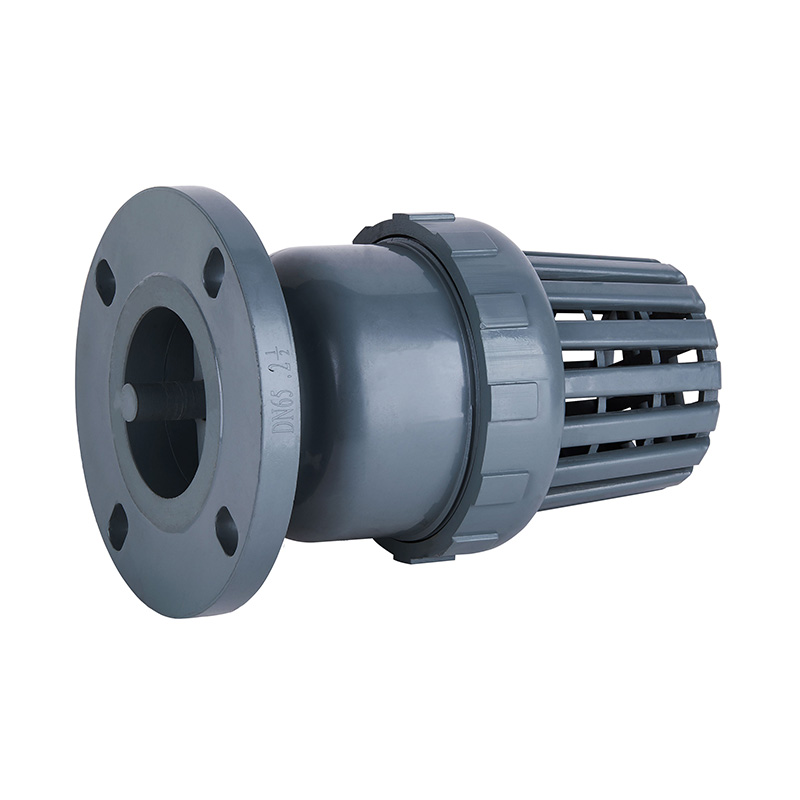

PVC-C H42F-10V Bottom Valve DN50-200 2"-8" ANSI Standard

Gray FRPP Bottom Valve Custom 4 Inches DN50-200 Low-Cost Industrial Plastic Hydraulic Valve for Water Industry ANSI Standard
Type: Hydraulic
Origin: China
Brand: KXPV
Model: H42F-10V
Application: General
Medium Temperature: Medium, Ambient
Power Supply: Manual
Medium: Acid
Port Size: DN50-200
Structure: Flanged
Product Name: Bottom Valve
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece
Color: Gray
Size: DN50-200

Pressure Class: 1.0Mpa(10bar)

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1.Production specifications range from DN15 to DN300.
2.DN200 to DN300 can be produced upon customer request.
3.Excellent sealing performance.
4.Low pressure loss.
5.Good hydraulic performance.
6.Simple structure and easy installation.



Part Material Table

No. Name Material Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Mesher PVC-C PVC-U PVDF PPH FRPP 1
2 Pistons PVC-C PVC-U PVDF PPH FRPP 1
3 Sealing rubber FPM EPDM FPM EPDM 1
4 Body PVC-C PVC-U PVDF PPH FRPP 1
5 Sealing rubber FPM EPDM FPM EPDM 1
6 Partition PVC-C PVC-U PVDF PPH FRPP 1
7 Retaining Nut PVC-C PVC-U PVDF PPH FRPP 1
Dimension List



Specification d(mm) D(mm) L(mm) b(mm) n-Φ(mm)
2"(50) 215 121 160 16 4-Φ17x20
2½"(65) 235 140 170 16 4-Φ15x19
4"(100) 315 191 220 23 8-Φ18x20

Specification d(mm) D(mm) L(mm) b(mm) n-Φ(mm)
5"(125) 330 216 250 28 8-Φ18
6"(150) 330 241 282 30 8-Φ21
8"(200) 380 299 335 32 8-Φ23
