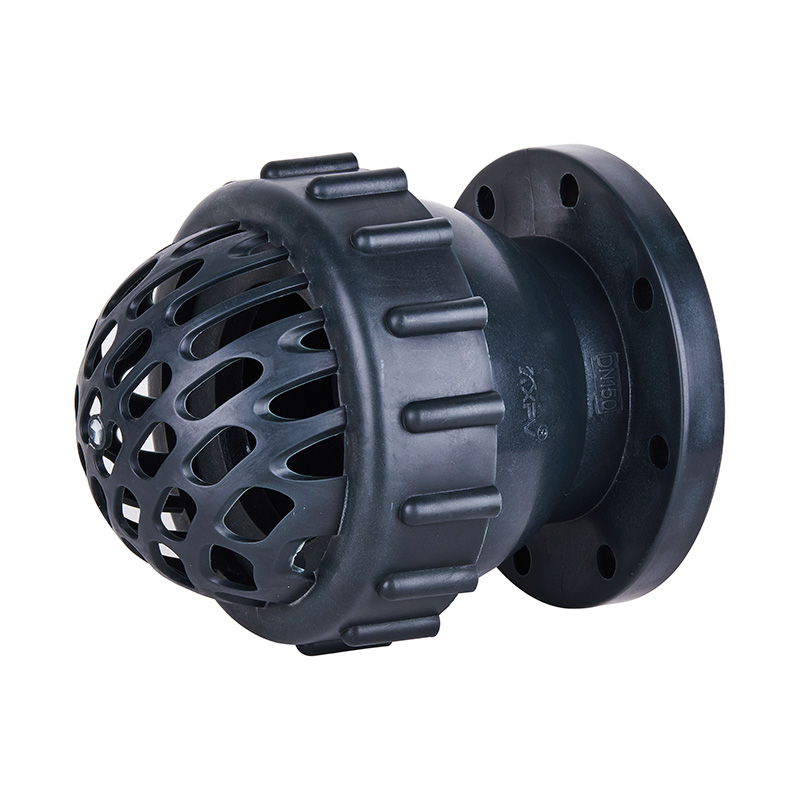

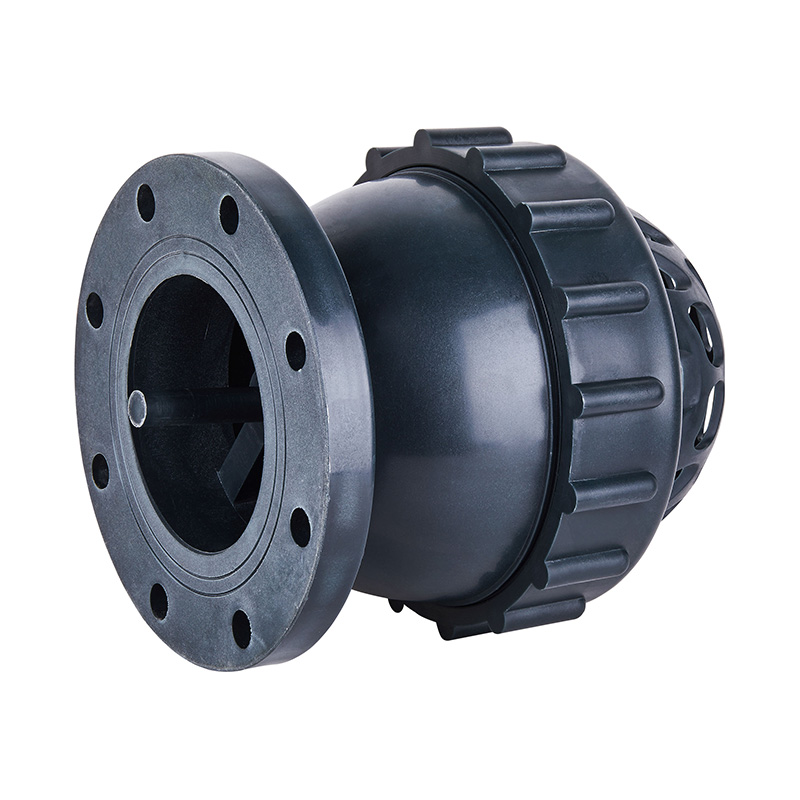

Grey FRPP Foot Operated Bottom Valve Custom 4 Inch DN15-DN300 Low Price Industrial Plastic Foot Valve for water industry
Type:Foot Valves
Place of Origin:China
Brand Name:KXPV
Model Number:H11F-10V
Application:General
Temperature of Media:Medium Temperature, Normal Temperature
Power:Manual
Media:Acid
Port Size:DN15-DN300
Structure:Plug
Product name:Bottom valve
Delivery Time:7 Days
MOQ:1 Piece
Color:Grey
Size:DN15-300
Part material list |
No. | Name | Material |
1 | Network mask | FRPP.PVDF.PPH |
2 | Partytion | FRPP.PVDF.PPH |
3 | O-Sealing ring | EPDM,FPM |
4 | Nut | FRPP.PVDF.PPH |
5 | Rubber | EPDM,FPM |
6 | Pistons | FRPP.PVDF.PPH |
7 | Body | FRPP.PVDF.PPH |
Dimension List |
Nominal diameter(mm) | Screwtop type size(mm) | N-φ | H | Nominal diameter(mm) | Receives inserts the type size(mm) | Working pressure(Mpa) | |
ZG | L | L | |||||
125(5'') | ZG5'' | 504 | 8/18 | 28 | 130 | 504 | 0.5 |
150(6'') | ZG6'' | 550 | 8/21 | 30 | 155 | 550 | 0.4 |
200(8'') | ZG8'' | 550 | 12/23 | 32 | 210 | 550 | 0.4 |
Product structure features |
1.The Size from DN50 to DN150 are standard products.
2.From DN200 to DN300 can meet customer requirements to produce.
3.Completely sealed.
4.Smaller pressure loss.
5.Good hydraulic performance.
6.Simple installation and use
Dimension List |
