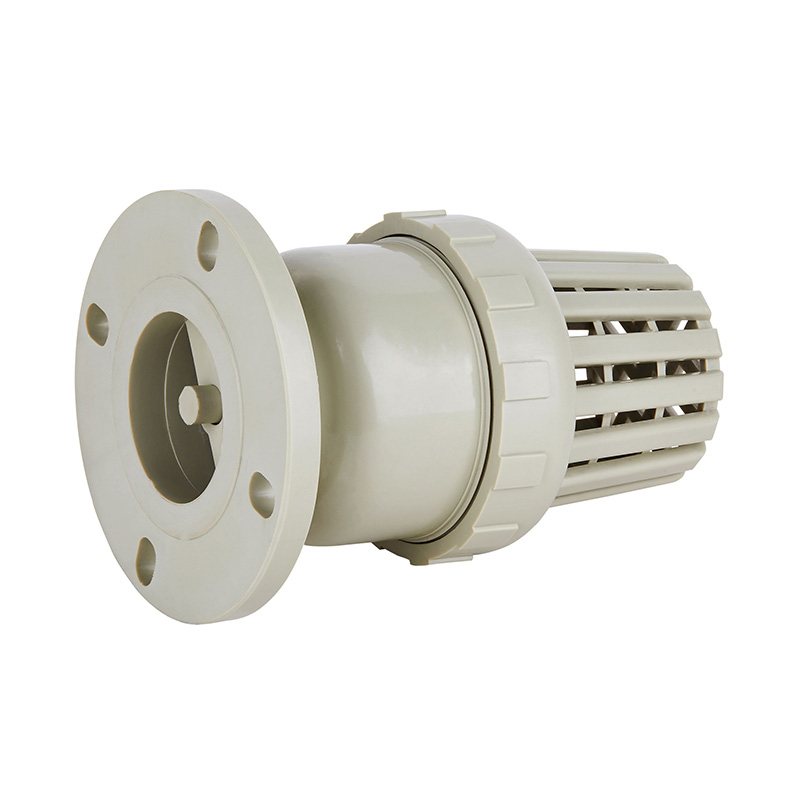

PPH H42F-10S Bottom Valve DN15-300 GB Standard

PPH Earthy Yellow Bottom Valve Custom 4 Inch DN15-DN300 Low Price Industrial Plastic Hydraulic For Water Industry
Type: Hydraulic
Place of Origin: China
Brand Name: KXPV
Model Number: H42F-10S
Application: General
Temperature of Media: Medium Temperature, Normal Temperature
Power: Manual
Media: Acid
Port Size: DN15-DN300
Structure: Flange
Product Name: Bottom Valve
Delivery Time: 7 Days
MOQ: 1 Piece
Color: Earthy Yellow
Size: DN15-300

Pressure Class: 1.0Mpa(10bar)

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Available in sizes from DN15 to DN300
2. DN200 to DN300 available upon request
3. Excellent sealing
4. Minimal pressure loss
5. Excellent hydraulic performance
6. Simple structure and easy installation



Part Material Table

No.

Name

Material

1

Body

FRPP,PVDF,PVC-C,PVC-U,PPH

2

Pistons

FRPP,PVDF,PVC-C,PVC-U,PPH

3

Sealing rubber

EPDM,FPM

4

Retaining Nut

FRPP,PVDF,PVC-C,PVC-U,PPH

5

Sealing

EPDM,FPM

6

Partition

FRPP,PVDF,PVC-C,PVC-U,PPH

7

Mesher

FRPP,PVDF,PVC-C,PVC-U,PPH

Dimension List



DN(mm) D d L b n-Φ
GB JIS ANSI GB JIS ANSI
15(1/2") 105  65  70  60.3  140  15  4-Φ14 4-Φ15 4-Φ16
20(3/4") 105  75  75  69.9  168  16  4-Φ14 4-Φ15 4-Φ16
25(1") 115  85  90  79.4  189  16  4-Φ14 4-Φ19 4-16
32(1/2") 135  100  100  88.9  210  18  4-Φ18 4-Φ19 4-Φ16
40(13/4") 145  110  105  98.4  238  20  4Φ18 4-Φ19 4-Φ16
50(2") 160  125  120  120.7  215  17  4Φ18 4-Φ19 4-Φ18
65(21/2") 170  145  140  139.7  235  17  4-Φ18 4-Φ19 4-Φ18
80(3") 192  160  150  152.4  265  21  8-Φ18 8-Φ19 4-Φ18
100(4") 220  180  175  190.5  315  23  8-Φ18 8-Φ19 8-Φ18
125(5") 250  210  210  215.9  335  31  8-Φ18 8-Φ23 8-Φ22
150(6") 282  240  240  241.3  335  31  8-Φ22 8-Φ23 8-Φ22
200(8") 335  295  290  298.5  380  32  8-Φ22 12-23 8-Φ22
250(10") 395  350  355  362  550  38  12-Φ22 12-Φ25 12-Φ26
300(12") 445  400  400  550  38  12-Φ22 16-Φ25
