PPH Integrated Flange DN15-250、DN350-400 15A-250A、350A-400A JIS Standard

Wholesale High-Quality Beige PPH Socket Flange, 1.0-1.6MPa Working Pressure DN15-DN400, Universal Plastic Pipe Fitting for Sewage and Chemical Industry, JIS Standard
Origin: China
Brand Name: KXPV
Material: PPH
Process: Forged
Connection: Socket
Shape: Equal
Head Code: Square
Color: Beige
Size: DN15-DN400
Application: Industry
Packaging: Carton
Working Pressure: 1.0-1.6MPa (10-25bar)

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. The material has high crystallinity
Polymerized from a single polypropylene monomer, the molecular chain does not contain ethylene monomer; the molecular chain has high regularity and long service life;
2. Good corrosion resistance
It can withstand the corrosion of high-concentration acids and alkalis with a pH value ranging from 1 to 14 within a certain range;
3. Heat-resistant and energy-saving
The applicable temperature range is from -20°C to 110°C; the thermal conductivity is small and has good thermal insulation performance;
4. Reliable connection performance
The strength of the hot-melt joint of this product is higher than that of the pipe body, and the joint will not be disconnected due to soil movement or load;
5. Good construction performance
This product is light in weight, has simple welding process, convenient construction, low overall project cost, and can meet complex process pipelines; PPH pipeline systems are widely used in electroplating, etching, chemical industry, pharmaceutical, sewage treatment, environmental engineering and other industries.

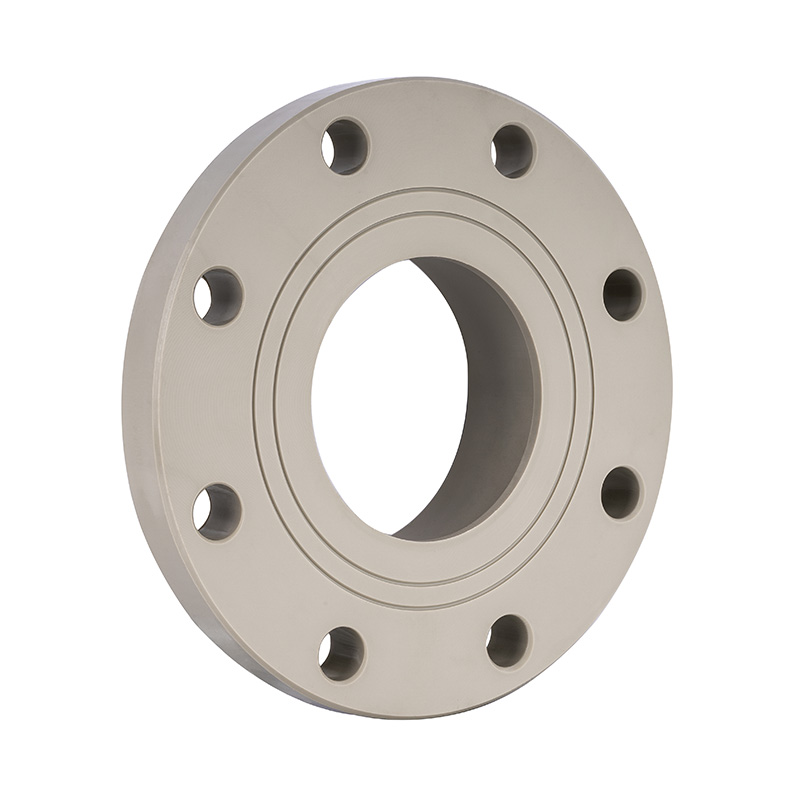

PPH Integrated Flange

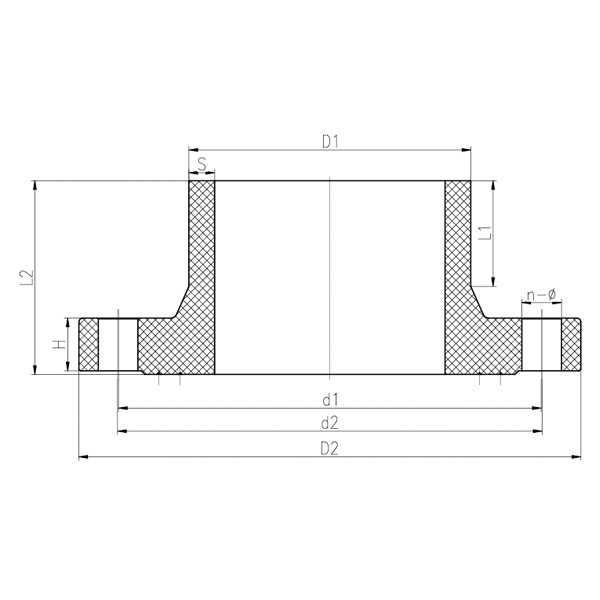

DN D1 D2 d1 d2 S L1 L2 H n-Ø Remark(mounting hole)
15 20 95 60 70 2.5 50 72 12 4-Ø15X20 PN10/16/US/Japan
20 25 105 70 75 2.7 50 74 14 4-Ø15X17.5 PN10/16/US/Japan
25 32 115 79 85 3 50 78 16 4-Ø15X18 PN10/16/US/Japan
32 40 140 89 100 3.7 50 78 16 4-Ø19X24.5 PN10/16/US/Japan
40 50 150 98 110 4.6 50 80 18 4-Ø19X25 PN10/16/US/Japan
50 63 165 120 125 5.8 50 83 18 4-Ø19x21.5 PN10/16/US/Japan
65 75 185 140 145 6.9 55 88 18 4-Ø19x21.5 PN10/16/US/Japan
80 90 200 150 160 8.2 55 90 20 8-Ø19X24 PN10/16/US/Japan
100 110 229 175 191 10 55 90 20 8-Ø19X27 PN10/16/US/Japan
125 140 254 210 216 12.7 60 110 25 8-Ø18X21 PN10/16/US/Japan
150 160 285 240 241 14.6 60 115 30 8-Ø22X23 PN10/16/US/Japan
250 280 406 350 362 25.4 60 127 35 12-Ø22X28 PN10/16/US/Japan
400 400 597 510 540 36.3 63 160 50 16-Ø26X41 PN10/16/US/Japan
