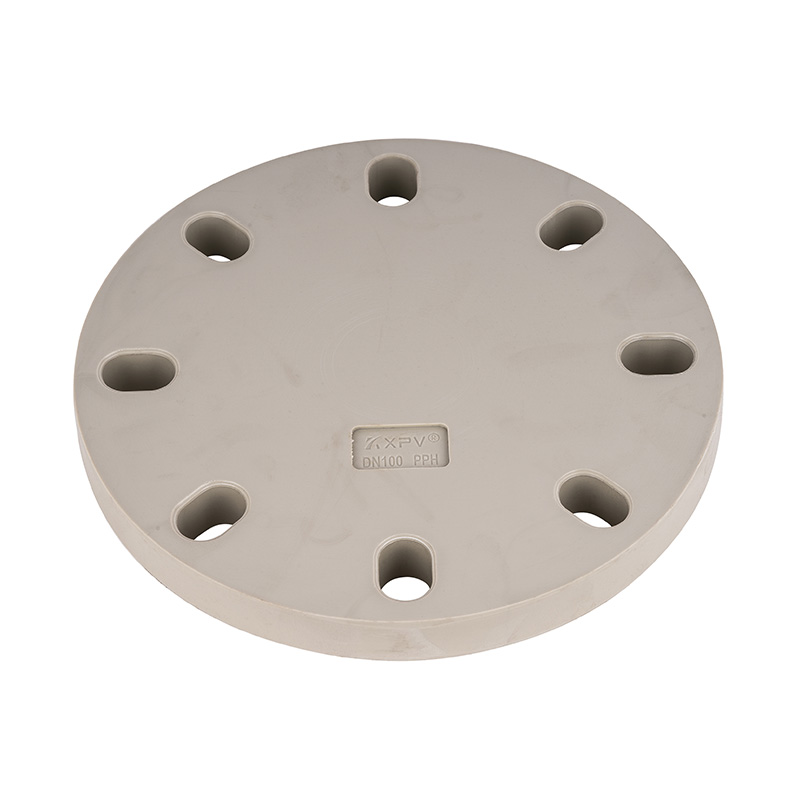

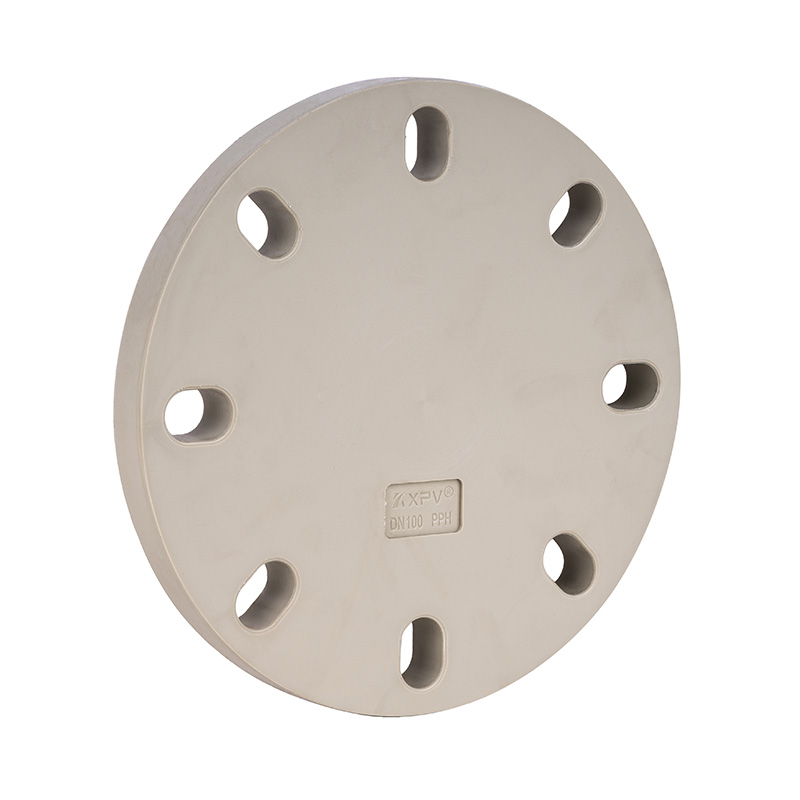

PPH Blind Flange DN15-150 15A-150A JIS Standard

Wholesale High-Quality Beige PPH Blind Flange, 1.0-1.6MPa Working Pressure DN15-150, Universal Plastic Pipe Fitting for Sewage and Chemical Industry, JIS Standard
Origin: China
Brand Name: KXPV
Material: PPH
Process: Forged
Connection: Socket
Shape: Equal
Head Code: Square
Color: Beige
Size: DN15-150
Application: Industry
Packaging: Carton
Working Pressure: 1.0-1.6MPa (10-25bar)

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. The material has high crystallinity
Polymerized from a single polypropylene monomer, the molecular chain does not contain ethylene monomer; the molecular chain has high regularity and long service life;
2. Good corrosion resistance
It can withstand the corrosion of high-concentration acids and alkalis with a pH value ranging from 1 to 14 within a certain range;
3. Heat-resistant and energy-saving
The applicable temperature range is from -20°C to 110°C; the thermal conductivity is small and has good thermal insulation performance;
4. Reliable connection performance
The strength of the hot-melt joint of this product is higher than that of the pipe body, and the joint will not be disconnected due to soil movement or load;
5. Good construction performance
This product is light in weight, has simple welding process, convenient construction, low overall project cost, and can meet complex process pipelines; PPH pipeline systems are widely used in electroplating, etching, chemical industry, pharmaceutical, sewage treatment, environmental engineering and other industries.

PPH Blind Flange

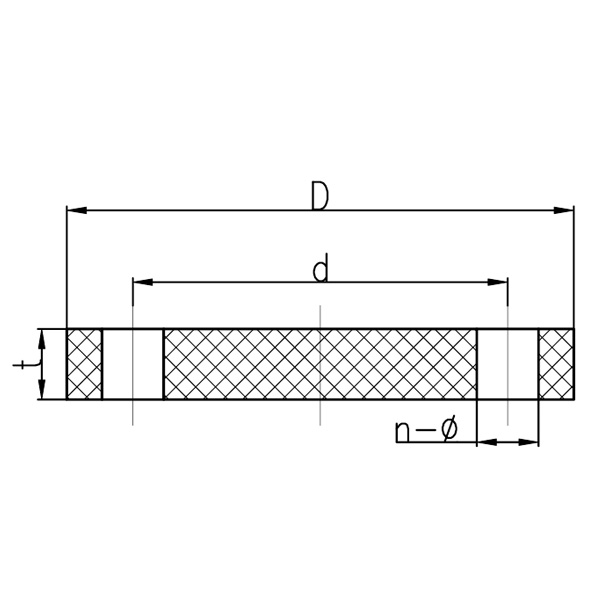

DN D d t n-Ø
15 95 70 14 4-Ø15*20
20 105 75 18 4-Ø15*18
25 125 90 18 4-Ø15*21
32 140 100 20 4-Ø18*24
40 150 105 20 4-Ø18*25
50 165 120 20 4-Ø18*22
65 185 140 20 4-Ø18*22
80 200 150 20 8-Ø18*25
100 229 175 22 8-Ø18*28
125 254 210 22 8-Ø18*23
150 285 240 24 8-Ø22*25
