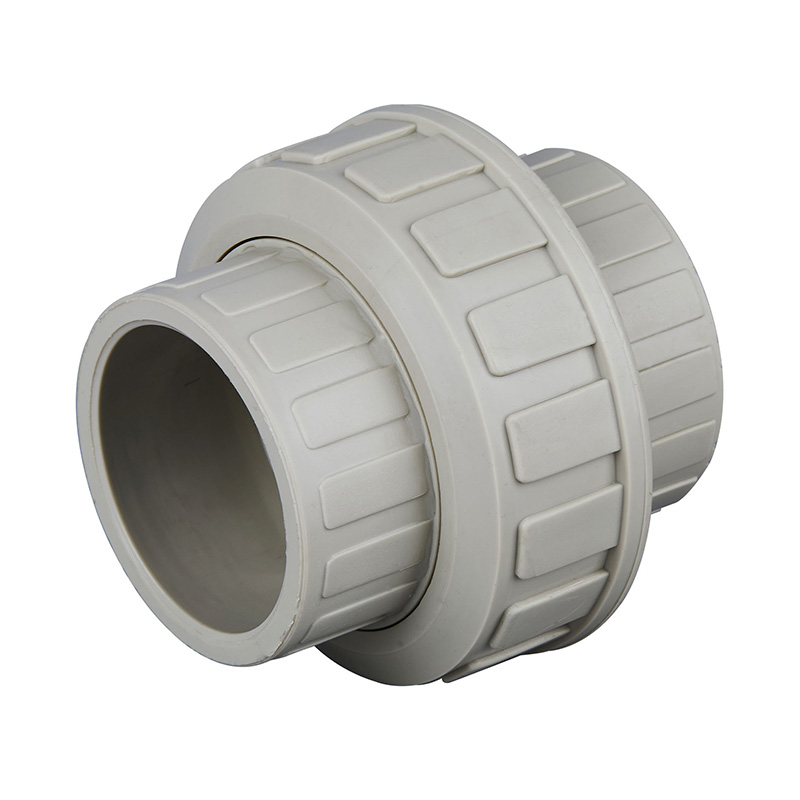

PPH Union Fitting DN15-100 GB Standard

Wholesale High Quality Earthy Yellow PPH Straight Socket Union 1.0-1.6Mpa Working Pressure DN15-DN100 Universal Plastic Pipe Fittings for sewage and chemical industry
Place of Origin: China
Brand Name: KXPV
Material: PPH
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Color: Earthy Yellow
Size: DN15-DN100
Application: Industry
Packing: Carton Box
Working Pressure: 1.0-1.6Mpa (10-25bar)

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. High Crystallinity
Made from a single polypropylene monomer, the molecular chain contains no ethylene monomers; the molecular chain is highly regular and offers a long service life.
2. Excellent Corrosion Resistance
It can withstand corrosion from high-concentration acids and bases within a pH range of 1-14.
3. Heat-Resistant, Insulating, and Energy-Saving
It can operate in temperatures from -20°C to 110°C. Its low thermal conductivity provides excellent insulation performance.
4. Reliable Connection
The hot-melt joints are stronger than the pipe itself, preventing them from breaking due to soil movement or loads.
5. Excellent Construction Performance
This product is lightweight, features a simple welding process, is easy to install, and offers a low overall cost, suitable for complex process piping. PPH piping systems are widely used in industries such as electroplating, etching, chemicals, pharmaceuticals, wastewater treatment, and environmental engineering.

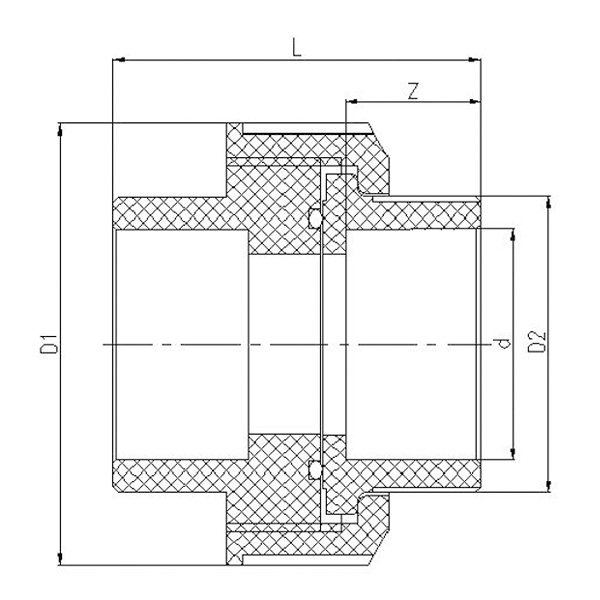

PPH Hot Melt Socket Joint

DN D1 D2 d L Z
15  49  26.5  20  52  14.5
20  57  33.5  25  62.5  18
25  68  40.5  32  65.5  20
32  82.5  51.5  40  77  22
40  95.5  63  50  79.5  25
50  124.5  77  63  88  28
65  141  96  75  117.5  31.5
80  155  106  90  129.5  35
100  188  125  110  156  41
