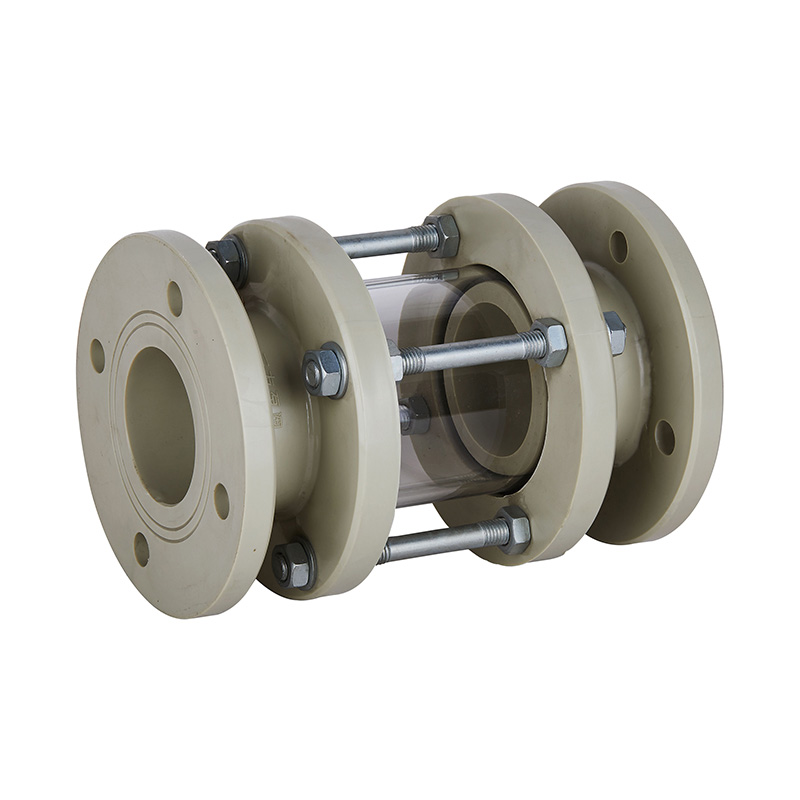

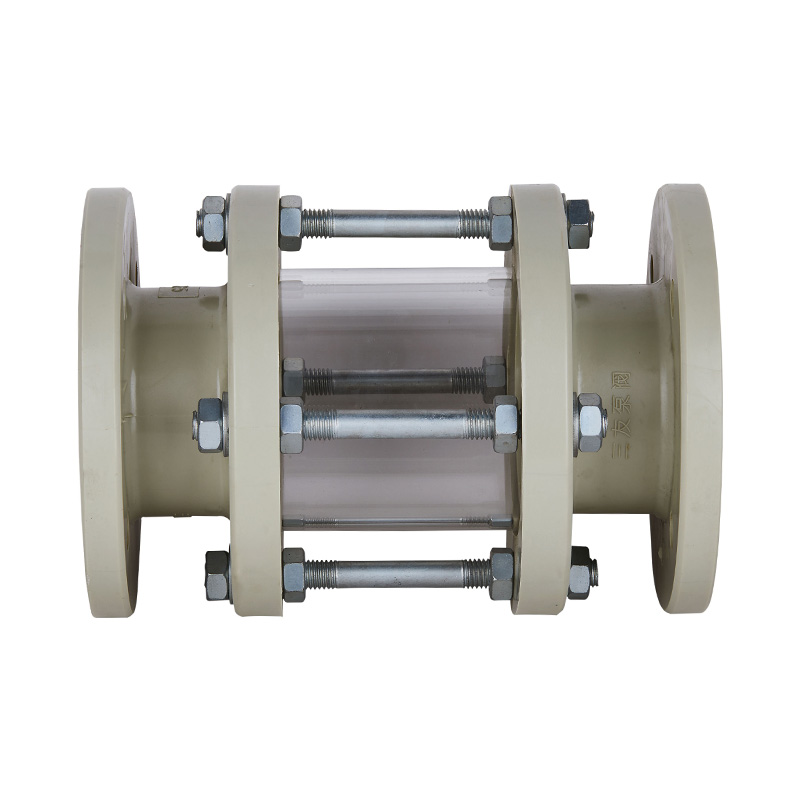

PPH Sight Glass DN25-200 1"-8" ANSI Standard

Beige PPH Sight Glass Tubular Oil Liquid Level Pressure-Reducing DN15-200 Plastic PPH Sight Glass Flow Indicator ANSI Standard
Origin: Zhejiang, Ningbo
Brand Name: KXPV
Process: Forging
Connection Type: Flanged
Shape: Reducer
Material: PPH
Color: Beige
Head Code: Hexagonal
Product Name: Sight Glass
Size: DN15-200
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece
Supply Capacity: 10,000 Pieces/Month

Pressure Class: 1.0Mpa(10bar)

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1.Compact and aesthetically pleasing design.
2.Lightweight body for easy installation.
3.Wear-resistant, easy to disassemble, and simple maintenance.
4.Made with borosilicate glass, offering strong corrosion resistance and wide application.
Suitable for most harsh working environments, with a long service life

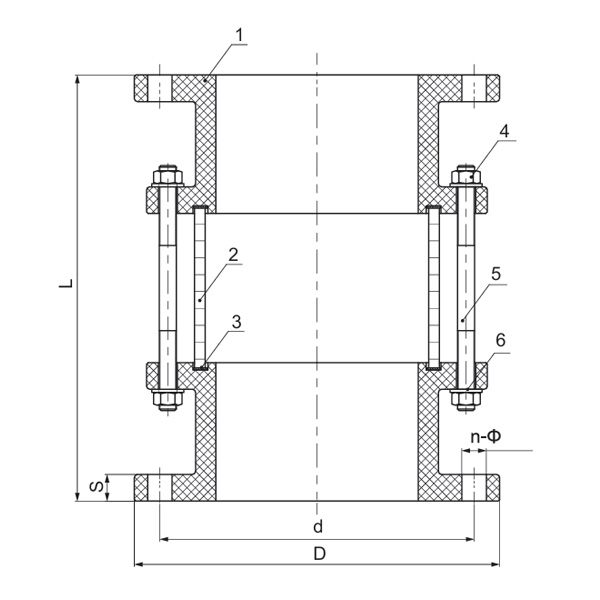

Part Material Table

No. Name Material Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Base PVC-C PVC-U PVDF PPH FRPP 2
2 Glass BSi BSi BSi BSi BSi 1
3 Sealing rubber FPM EPDM FPM EPDM EPDM 2
4 Hexagonal nut 304 Iron 304 Iron Iron 16-32
5 Double header stud 304 Iron 304 Iron Iron 4-8
6 Filling piece 304 Iron 304 Iron Iron 16-32
Dimension List



Specification D(mm) d(mm) L(mm) s(mm) n-Φ(mm)
1"(25) 115 79 238 15 4-Φ16
1½"(40) 150 98 230 16 4-Φ16
2"(50) 165 121 233 17 4-Φ19
2½"(65) 195 140 277 20 4-Φ19
3"(80) 195 152 277 20 8-Φ19
4"(100) 220 191 310 21 8-Φ19
5"(125) 250 216 350 26 8-Φ22
6"(150) 285 241 385 27 8-Φ23
8"(200) 340 299 400 25 8-Φ23x29
