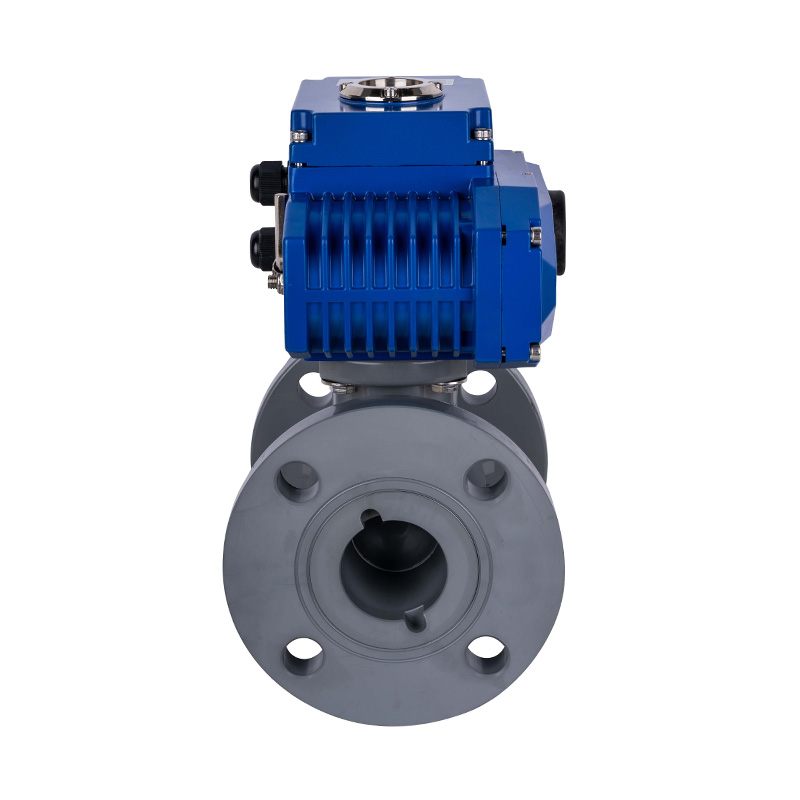

PVC-C D941F-10V Electric Flange Ball Valve DN15-300 GB Standard

Competitive price Custom PVC-C electric actuator ball valve for agriculture and water systems
Type: Ball Valve
Place of Origin: China
Brand Name: KXPV
Model: D941X-10V
Application: General
Media Temperature: High,Medium
Power: Pneumatic
Media: Acids
Port Sizes: DN15-300
Construction: Fixed Ball Valve
Body Material: PVC-C
Connection: Flange Ends
Standard: GB/T37842 F4
Application: Industrial
Working Temperature: -20~+95℃
Delivery Time: 7 Days
MOQ: 1 Piece

Pressure Class: 1.0Mpa(10bar)

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. These engineering plastic ball valves are injection-molded in one piece using corrosion-resistant thermoplastics such as FRPP, PVDF, PVC-C, PVC-U, and PPH, offering strong corrosion resistance.
2. The PTFE seat is adjustable for tightness.
3. Double-layer O-rings provide dual leak protection.
4. Exquisite appearance, smooth surface, fine machining, and full-flow design.
5. The actuator can be remotely controlled via a computer or control center, controlling the flow and flow of media by opening and closing the valve. This provides greater convenience and speed, reduces labor costs, and ensures the safety of on-site workers.



Dimension List

DN(mm) D d L H b n-Φ
GB JIS ANSI GB JIS ANSI GB JIS ANSI
15(1/2") 95  95  65  70  120  160  15  4-Φ15 4-Φ15
20(3/4") 105  100  75  75  120  160  16  4-Φ15 4-Φ15
25(1") 120  125  85  90  130  162  16  4-Φ15 4-Φ19
32(11/4") 135  135  100  100  145  190  18  4-Φ18 4-Φ19
40(11/2") 145  140  125  110  105  98.4  168  220  20  4-Φ18 4-Φ19 4-Φ16
50(2") 160  155  150  125  120  120.7  180  230  20  4-Φ19 4-Φ19 4-Φ18
65(2-1/2") 180  145  225  245  22  4-Φ19
80(3") 195  160  255  280  25  8-18.5
100(4") 229  229  180  190.5  280  295  25  8-Φ18.5X20 8-Φ18.5X20
125(5") 254  250  254  210  210  215.9  350  340  30  8-Φ18.5X20 8-Φ23 8-Φ22
150(6") 280  280  280  240  240  241.3  400  360  30  8-Φ24X27 8-Φ24X27 8-Φ24X27
200(8") 335  330  335  295  290  298.5  400  400  35  8-Φ23 12-Φ23 8-Φ22
250(10") 400  400  400  350  355  362  450  460  38  12-Φ23X26 12-Φ25 12-Φ26
300(12") 440  440  400  400  450  460  38  12-Φ23 16-Φ25
