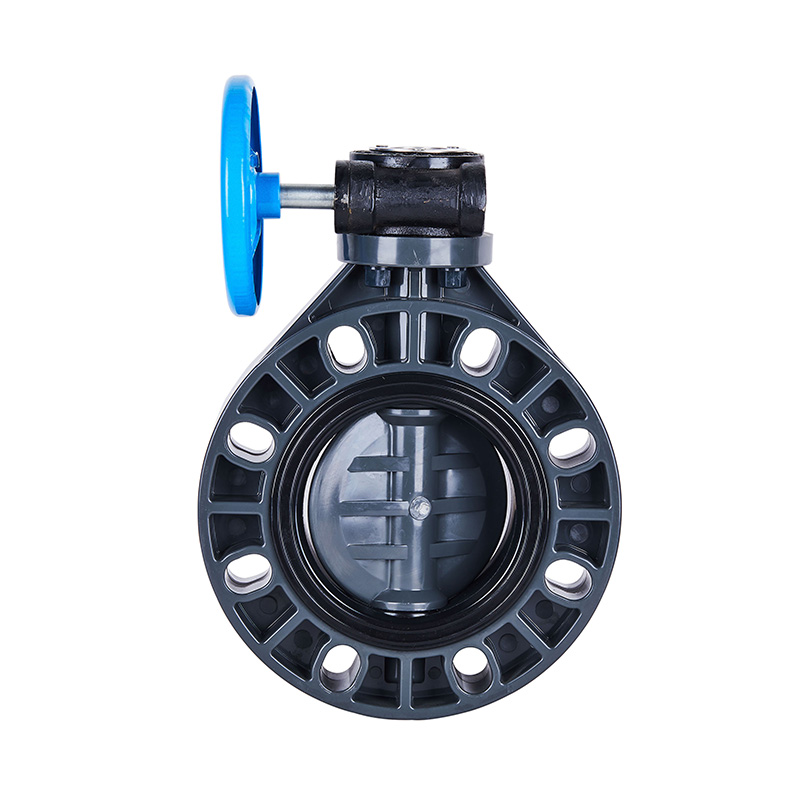

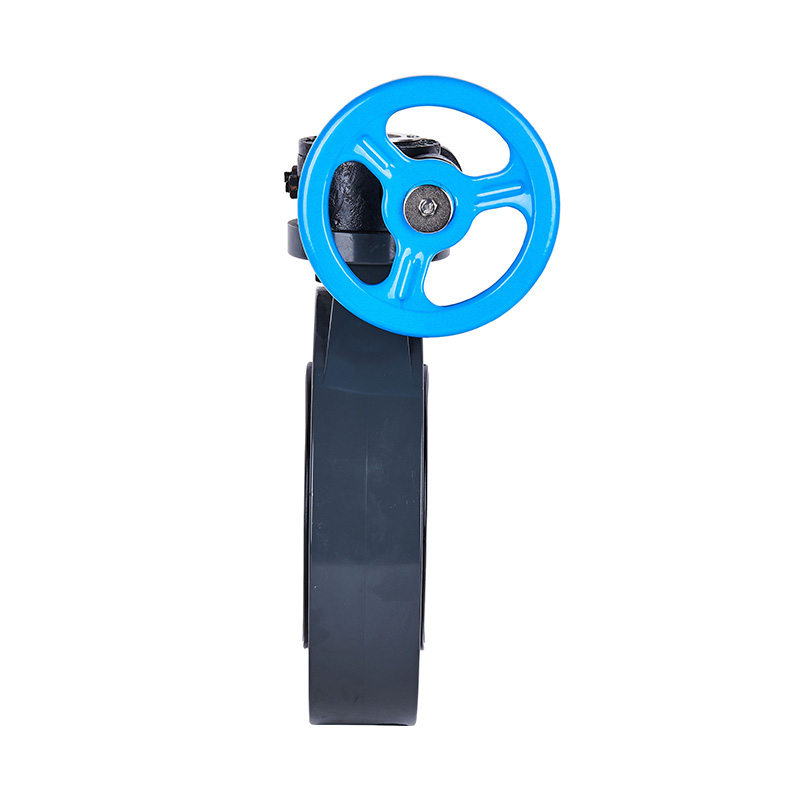

New Universal Standard UPVC Worm Gear Butterfly Valve High Performance DIN JIS ANSI Flange Ends DN50-DN200 Valve for Water Treatment
Place of Origin:China
Brand Name:KXPV
Model Number:D371X-10U
Application:General
Material:Plastic
Temperature of Media:High Temperature, Medium Temperature
Pressure:Medium Pressure
Power:Manual
Media:Acid
Port Size:DN50-DN200
Structure:Butterfly
Body material:UPVC
Connection:Flange Ends
Standard:DIN3352 F4
Usage:Industry
Working Temperature:-10--70
Main structural features
1.High corrosion resistance
Using the whole plastic mold, the valve body is made of strong anti-corrosive synthetic rubber.
2.Good sealing performance
Good sealing performance is suitable for conveying high viscosity liquid and mud.
3.Face to face short distance
Easy to install, because the size of face to face is short.
Part material list |
No. | Name | Material |
1 | Hand whell | Cast lron,Aluminum alloy |
2 | Worm gear bear | Steel |
3 | Data lpate | ABS |
4 | Hexagon bolt | Steel,Stainless steel |
5 | Worm gear lid | Cast lron,Aluminum alloy |
6 | Worm gear | Cast lron,Aluminum alloy |
7 | Limit bolt | Steel |
8 | Stem | Steel,Stainless steel |
9 | Double headed stud | Steel |
10 | Hex nuts | Steel |
11 |
Rubber seal | EPDM,FPM |
12 |
Disc | FRPP,PVDF,CPVC,UPVC,PPH |
13 |
Body | FRPP,PVDF,CPVC,UPVC,PPH |
This valve can be equipped with actuators according to customer requirements,can be installed pneumatic or electric actuators reduction gear box,using the related material quickly install the module,bolt hole size comply with relevant industry standards.
