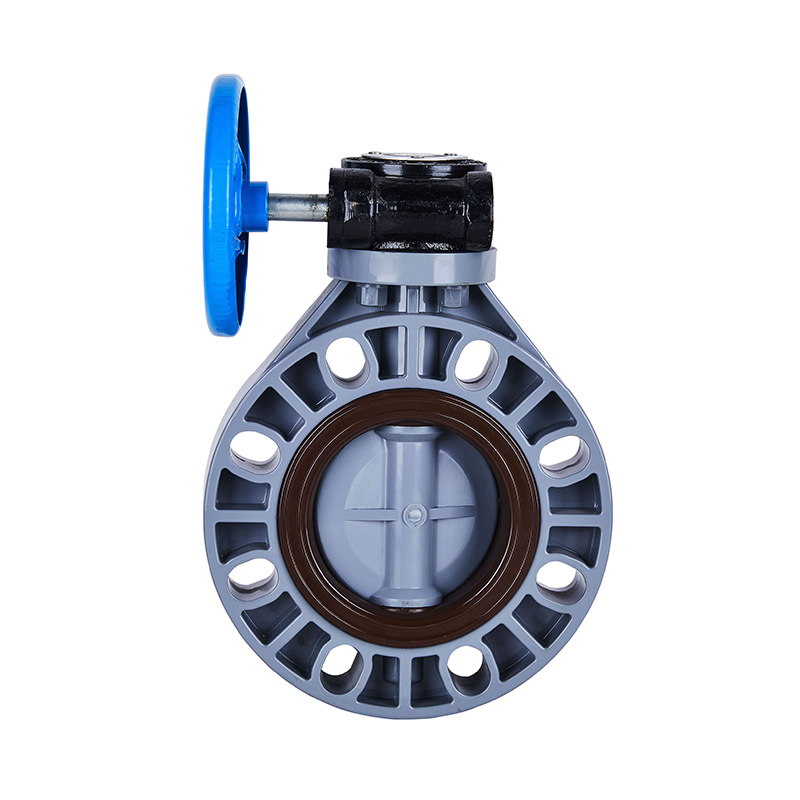

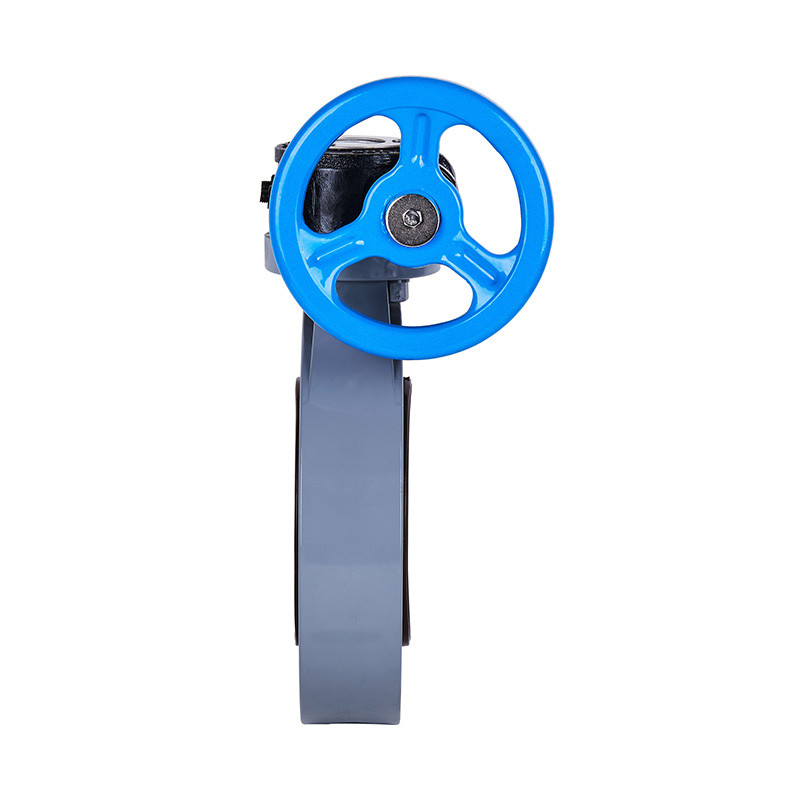

New arrival CPVC Worm Gear Butterfly Valve Manual Flange Connection Single-Eccentric Sealing Industrial Plastic Valve for Water and Chemical industry
Model NO.:D371X-10V
Driving Mode:Manual
Connection Form:Flange
Structure:Single-Eccentric Sealing
Seal Form:Auto Sealed
Valve Stem:Normal
Work Pressure:Low Pressure (Pn<1.6mpa)
Working Temperature:Normal Temperature (-40°C<T<120°C)
Material of Seal Surface:Soft Sealed
Application:Industrial Usage, Water Industrial Usage, Household Usage
Trademark:KXPV
Specification:DN150- DN1000
Origin:Beilun Ningbo China
HS Code:8481804090
Main structural features
1.High corrosion resistance
Using the whole plastic mold, the valve body is made of strong anti-corrosive synthetic rubber.
2.Good sealing performance
Good sealing performance is suitable for conveying high viscosity liquid and mud.
3.Face to face short distance
Easy to install, because the size of face to face is short.
| Part material list |
| No. | Name | Material |
| 1 | Hand whell | Cast lron,Aluminum alloy |
| 2 | Worm gear bear | Steel |
| 3 | Data lpate | ABS |
| 4 | Hexagon bolt | Steel,Stainless steel |
| 5 | Worm gear lid | Cast lron,Aluminum alloy |
| 6 | Worm gear | Cast lron,Aluminum alloy |
| 7 | Limit bolt | Steel |
| 8 | Stem | Steel,Stainless steel |
| 9 | Double headed stud | Steel |
| 10 | Hex nuts | Steel |
|
11 |
Rubber seal | EPDM,FPM |
|
12 |
Disc | FRPP,PVDF,CPVC,UPVC,PPH |
|
13 |
Body | FRPP,PVDF,CPVC,UPVC,PPH |
This valve can be equipped with actuators according to customer requirements,can be installed pneumatic or electric actuators reduction gear box,using the related material quickly install the module,bolt hole size comply with relevant industry standards.
