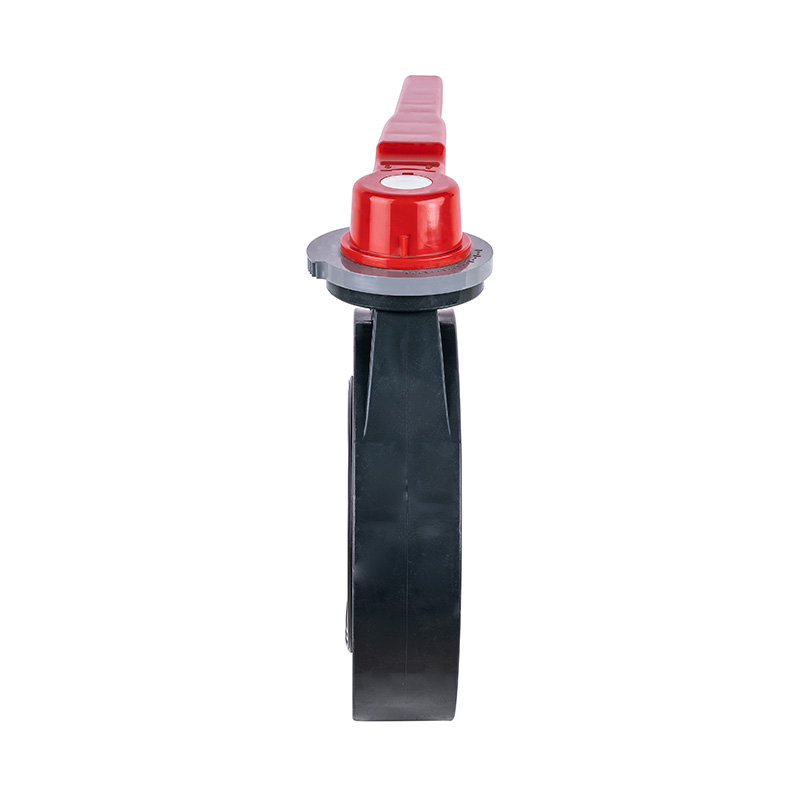

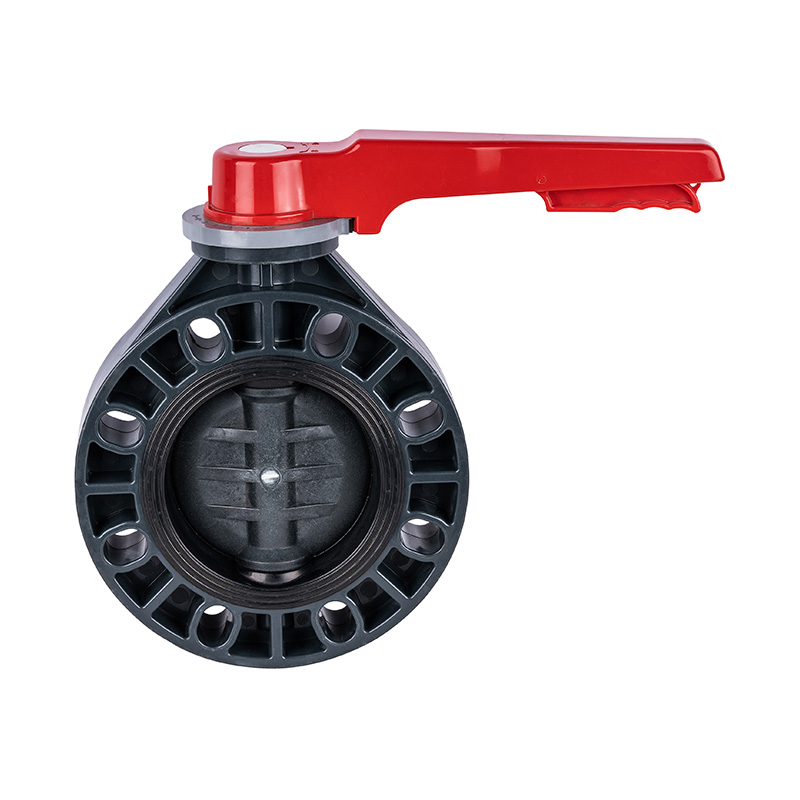

PVC-U D71X-10U Handle Butterfly Valve DN40-200 1-1/2"-8" ANSI Standard

New Arrival PVC-U Hand Lever Butterfly Valve DN15–200 Industrial Soft-Seal Center Sealed Plastic Valve ANSI Standard
Model: DN15–200
Operation Mode: Manual
Connection Type: Wafer
Structure: Center Sealed
Sealing Type: Resilient Sealed
Stem: Standard
Pressure Class: 1.0Mpa(10bar)
Working Temperature: -5~45℃
Sealing Surface Material: Soft Seal
Application: Industrial Use, Water Treatment Use
Stem Material: Steel, Stainless Steel
Brand: KXPV
Specification: DN15–200
Origin: Zhejiang, Ningbo

Product Structural Features
1.The valve is compact and lightweight, easy to disassemble and maintain, and can be installed in any position.
2.Simple and compact structure with low operating torque, allowing rapid 90° rotation for quick opening.
3.Linear flow characteristics with excellent regulating performance



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table



No. Name Material Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Handle Alloy material 1
2 Locating rod Alloy material 1
3 Positioning plate Alloy material 1
4 Nut Cup FRPP PPH FRPP 4
5 Body PVC-C PVC-U PVDF PPH FRPP 1
6 Disc PVC-C PVC-U PVDF PPH FRPP 1
7 Sealing rubber FPM EPDM FPM EPDM 1
8 Stem Steel 1
9 Pin Steel 1

Dimension List



Specification D1(mm) D2(mm) D3(mm) D4(mm) T(mm) n-Φ(mm)
1½"(40) 148 96 110 41.5 39 4-Φ19*25
2"(50) 162 108 125 48.5 43 4-Φ19*26
2½"(65) 180 128 145 63 45 4-Φ19*26
3"(80) 196 148 160 75.5 45 8-Φ19*24
4"(100) 225 168 191 95 56.5 8-Φ19*29
5"(125) 255 200 216 120 65 8-Φ23*31
6"(150) 285 225 241 143.5 75 8-Φ23*31
8"(200) 340 280 299 195 85 8-Φ23*32
JIS:12-Φ23*27
