17 New CPVC Hand Wheel Type Butterfly Valve Manufacturers

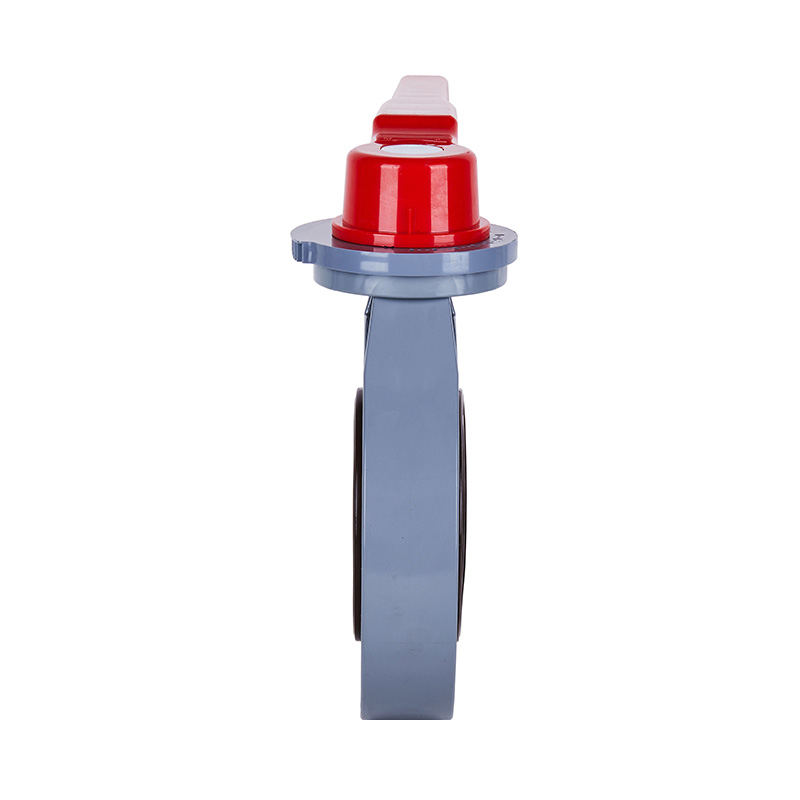

17 New CPVC Hand Wheel Type Butterfly Valve

17 New CPVC Hand Wheel Type Butterfly Valve

Main Structural Features

1.To improve the long-term performance
The spherification and thinness of the valve body have obtained excellent durability and flow characteristics.Besides,It adopts the preventing measures of flange overturning valve body,it will prevent the valve seats being damaged when the piping flange is tight and connect with valve body.

2.Full resin
Excellent corrosion resistant resin is used to further expand the use of resin valves.

3.Easier operation method
Remove the handle and the locking plate easily. It is easier to switch from handle to gear type and automatic valve.

Contact Us

17 New CPVC Hand Wheel Type Butterfly Valve Details

Main structural features
1.To improve the long-term performance
The spherification and thinness of the valve body have obtained excellent durability and flow characteristics.Besides,It adopts the preventing measures of flange overturning valve body,it will prevent the valve seats being damaged when the piping flange is tight and connect with valve body.
2.Full resin
Excellent corrosion resistant resin is used to further expand the use of resin valves.
3.Easier operation method
Remove the handle and the locking plate easily. It is easier to switch from handle to gear type and automatic valve.
4.Change the opening and closing direction of the handle
The handle and the locking plate have a 180 degree turn function, which can be changed in the direction of the handle.





Part material list



No. Name Material
1 Handle head Alloy material
2 Hexagonal nut Steel,Stainless steel
3 Hand whell Alloy material
4 Stem Steel,Stainless steel
5 Spring Steel
6 Adjust the positioning plate Alloy material
7 Pin Steel
8 Locating rod Alloy material
9 Body FRPP,PVDF,CPVC,UPVC,PPH
10 Sealing rubber EPDM,FPM

11

Disc FRPP,PVDF,CPVC,UPVC,PPH
