| App Temperature Bound List |
| Material | Medium temperature℃ | Material | Medium temperature℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVC-C | -20℃~+95℃ | PVC-U | -5℃~+45℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| FRPP | -20℃~+120℃ | PPH | -20℃~+110℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVDF | 40℃~+150℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Structural Features |
1. Lightweight: PVC-U is only 1/10 the weight of cast iron, making it easy to transport and install, reducing costs.
2. Superior Chemical Resistance: PVC-U has excellent resistance to acids and alkalis, with the exception of strong acids and alkalis near their saturation point.
3. Durable: PVC-U offers excellent weather resistance and is resistant to corrosion by bacteria and fungi.
4. Non-conductive: PVC-U is non-conductive and is not susceptible to corrosion by electrolysis or electric current, eliminating the need for secondary processing. It is non-flammable and does not support combustion, eliminating fire safety concerns.
5. Low resistance and high flow rate: The smooth inner wall minimizes fluid flow loss, and dirt is less likely to adhere to the smooth pipe surface, making maintenance simple and cost-effective.
6. Easy Installation and Low Cost: Cutting and joining are simple. PVC glue has proven to be safe, reliable, easy to use, and cost-effective.

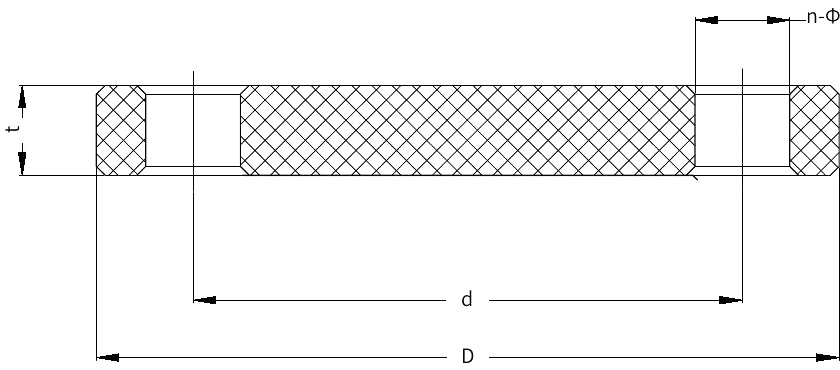

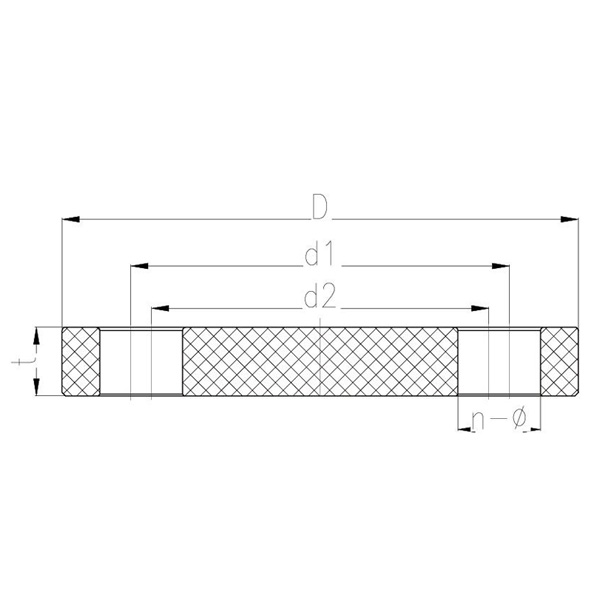

| PVC-U Blind Flange |

| DN | D | d1 | d2 | t | n-Φ | ||||||||||||||||||||||||
| 15 | 95 | 70 | 60 | 14 | 4-Φ15X20 | ||||||||||||||||||||||||
| 20 | 105 | 75 | 70 | 18 | 4-Φ15X17.5 | ||||||||||||||||||||||||
| 25 | 125 | 90 | 79 | 18 | 4-Φ15X20.5 | ||||||||||||||||||||||||
| 32 | 140 | 100 | 89 | 20 | 4-Φ18X23.5 | ||||||||||||||||||||||||
| 40 | 150 | 112 | 98 | 20 | 4-Φ18X25 | ||||||||||||||||||||||||
| 50 | 165 | 127.5 | 120 | 20 | 4-Φ18X21.75 | ||||||||||||||||||||||||
| 65 | 185 | 148 | 140 | 20 | 4-Φ18X22 | ||||||||||||||||||||||||
| 80 | 200 | 163 | 150 | 20 | 8-Φ18X24.5 | ||||||||||||||||||||||||
| 100 | 229 | 195 | 175 | 22 | 8-Φ18X28 | ||||||||||||||||||||||||
| 125 | 254 | 220 | 210 | 22 | 8-Φ18X23 | ||||||||||||||||||||||||
| 150 | 285 | 246 | 240 | 24 | 8-Φ22X25 | ||||||||||||||||||||||||
| 200(PN10) | 347 | 305 | 295 | 32 | 8-Φ23X28 | ||||||||||||||||||||||||
| 200(PN16) | 341 | 296 | 32 | 12-Φ22 | |||||||||||||||||||||||||
| 250 | 406 | 369 | 350 | 34 | 12-Φ23X32.5 | ||||||||||||||||||||||||
| 300 | 445 | 400 | 40 | 12-Φ23 | |||||||||||||||||||||||||
| 350 | 505 | 460 | 40 | 16-Φ23 | |||||||||||||||||||||||||
| 400 | 570 | 515 | 40 | 16-Φ27 | |||||||||||||||||||||||||
| 450 | 625 | 565 | 38 | 20-Φ26 | |||||||||||||||||||||||||
| 500 | 670 | 620 | 40 | 20-Φ27 | |||||||||||||||||||||||||
| 600 | 800 | 740 | 720 | 50 | 20-30X40 | ||||||||||||||||||||||||
