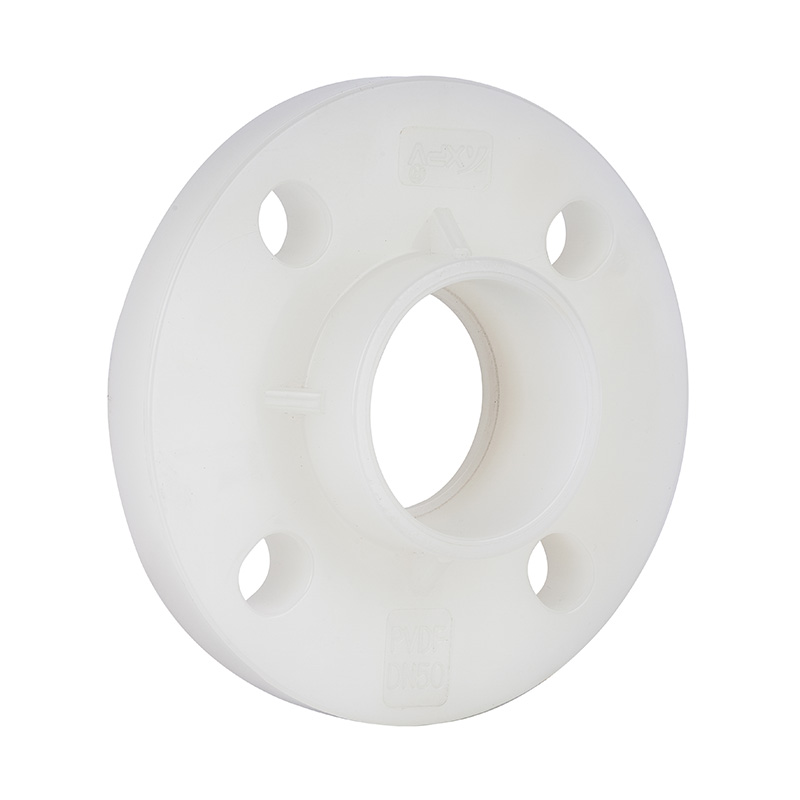

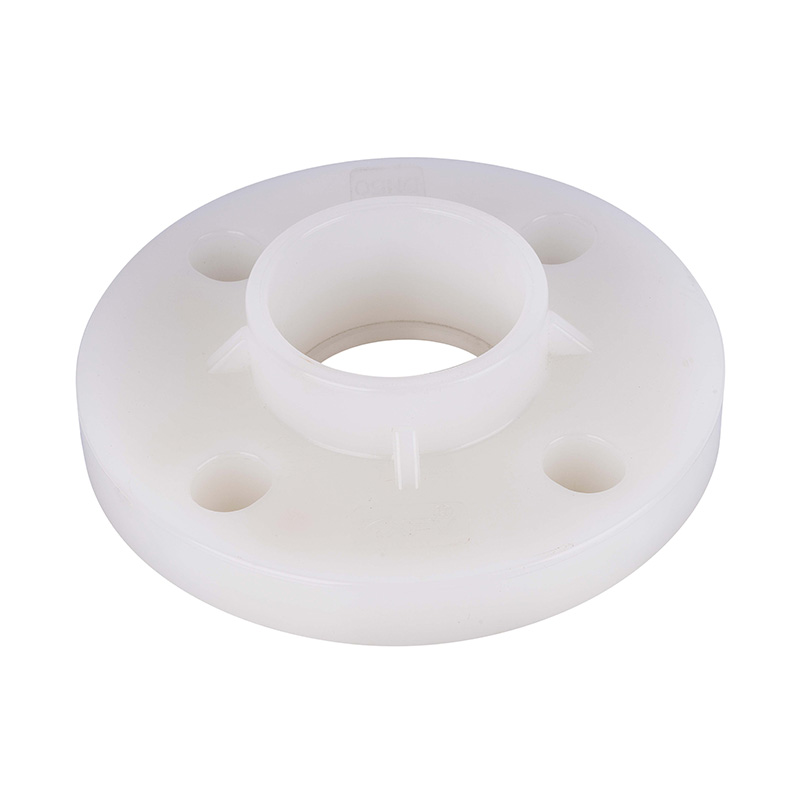

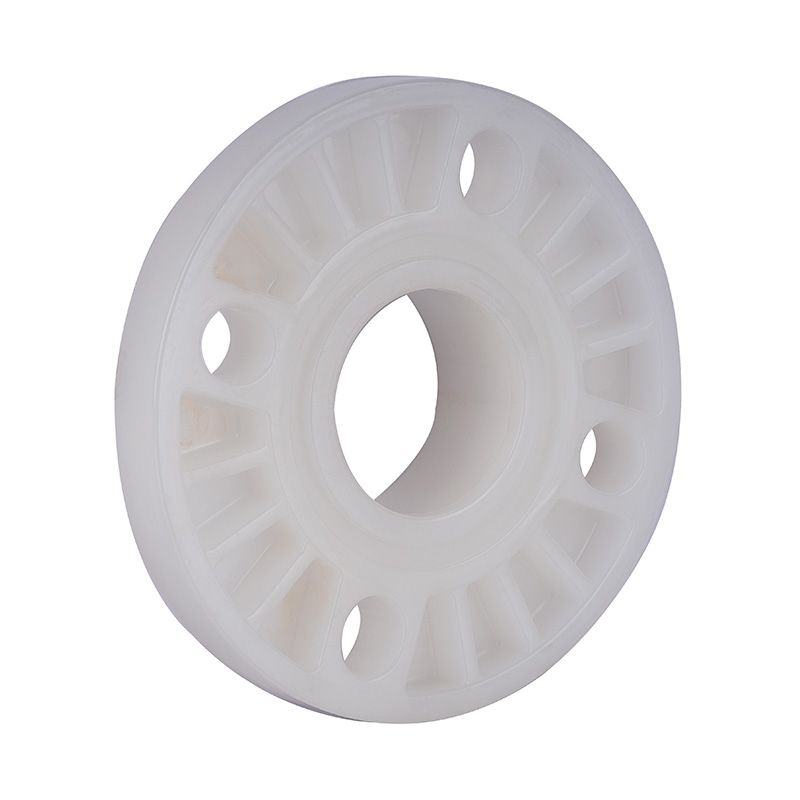

PVDF Hot Melt Socket Flange DN15-100 GB Standard

Wholesale High-Quality White PVDF Socket Flange, 1.0-1.6 MPa Working Pressure, DN15-DN100 General-Purpose Plastic Pipe Fittings for the Sewage and Chemical Industries
Place of Origin: China
Brand Name: KXPV
Material: PVDF
Technics: Forged
Connection: Socket
Shape: Equal
Head Code: Square
Color: White
Size: DN15-DN100
Application: Industry
Packing: Carton Box
Working Pressure: 1.0-1.6Mpa (10-25bar)

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Excellent heat resistance and high dielectric strength
PVDF has a highly regular molecular structure. The fluorine and chlorine atoms in the molecule are of similar size, resulting in densely packed polymer chains and strong hydrogen bonding. Consequently, the polymer exhibits high tensile strength, compressive strength, and impact toughness. PVDF also has a melting point of around 170°C, offering excellent processability and easy molding.
2. Wear resistance, high mechanical strength, and toughness
It boasts exceptional toughness among fluoroplastics, a low coefficient of friction, and aging resistance, resulting in strong wear and impact resistance. Furthermore, it exhibits high resistance to fading and UV rays in harsh and hostile environments.
3. Weather resistance, UV resistance, and nuclear radiation resistance
It boasts high purity, excellent chemical stability, corrosion resistance, high temperature resistance, high barrier properties, oxidation resistance, weather resistance, and radiation resistance, as well as special properties such as piezoelectricity, dielectricity, and thermoelectricity.
4. Wide range of applications
PVDF piping systems are widely used in the storage and transportation of high-purity chemicals in the petrochemical, electrical and electronic industries, fluorocarbon coatings, nuclear power projects, the semiconductor industry, and the petrochemical industry.

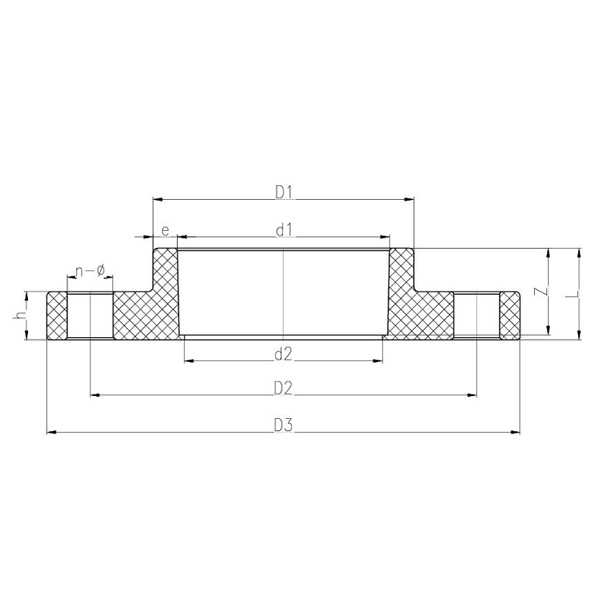

PVDF Hot Melt Socket Flange

DN D1 D2 D3 d1 d2 L h Z e n-Φ
15  30.5  65  95  20  15  24  14  18.5  4-Φ14
20  36.5  75  105  25  20  25  16  20  5.7  4-Φ14
25  46.5  85  115  32  26  26  16  20.5  7.2  4-Φ14
32  53.5  100  135  40  32  27  18  22  6.7  4-Φ18
40  65  110  145  50  41  30  18  25  7.5  4-Φ18
50  82  125  160  63  51  33  20  27.5  9.5  4-Φ18
65  93.5  145  185  75  61  37.5  20  31  9.2  4-Φ18
80  114.7  160  196  90  74.5  41.5  21  36  12.5  8-Φ18
100  134.5  180  215  110  95  52.5  23  47.5  12.5  8-Φ18
