PVDF Blind Plate DN15-350 GB Standard

Wholesale High-Quality White PVDF Blind Plate, 1.0-1.6 MPa Working Pressure, DN15-DN350, General-Purpose Plastic Pipe Fittings for the Sewage and Chemical Industries
Place of Origin: China
Brand Name: KXPV
Material: PVDF
Technics: Forged
Connection: Socket
Shape: Equal
Head Code: Square
Color: White
Size: DN15-DN350
Application: Industry
Packing: Carton Box
Working Pressure: 1.0-1.6Mpa (10-25bar)

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Excellent heat resistance and high dielectric strength
PVDF has a highly regular molecular structure. The fluorine and chlorine atoms in the molecule are of similar size, resulting in densely packed polymer chains and strong hydrogen bonding. Consequently, the polymer exhibits high tensile strength, compressive strength, and impact toughness. PVDF also has a melting point of around 170°C, offering excellent processability and easy molding.
2. Wear resistance, high mechanical strength, and toughness
It boasts exceptional toughness among fluoroplastics, a low coefficient of friction, and aging resistance, resulting in strong wear and impact resistance. Furthermore, it exhibits high resistance to fading and UV rays in harsh and hostile environments.
3. Weather resistance, UV resistance, and nuclear radiation resistance
It boasts high purity, excellent chemical stability, corrosion resistance, high temperature resistance, high barrier properties, oxidation resistance, weather resistance, and radiation resistance, as well as special properties such as piezoelectricity, dielectricity, and thermoelectricity.
4. Wide range of applications
PVDF piping systems are widely used in the storage and transportation of high-purity chemicals in the petrochemical, electrical and electronic industries, fluorocarbon coatings, nuclear power projects, the semiconductor industry, and the petrochemical industry.

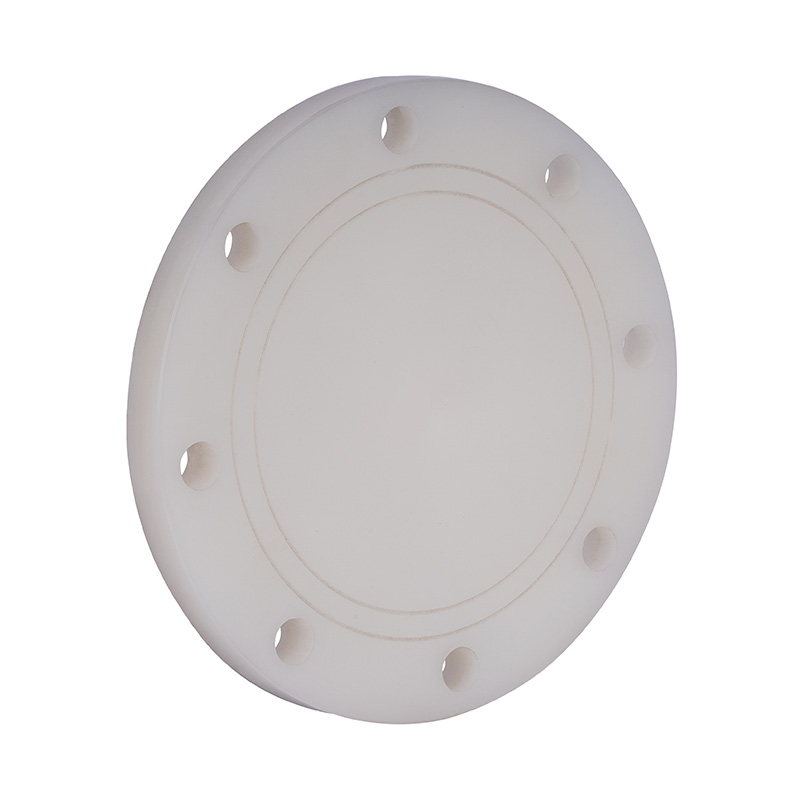

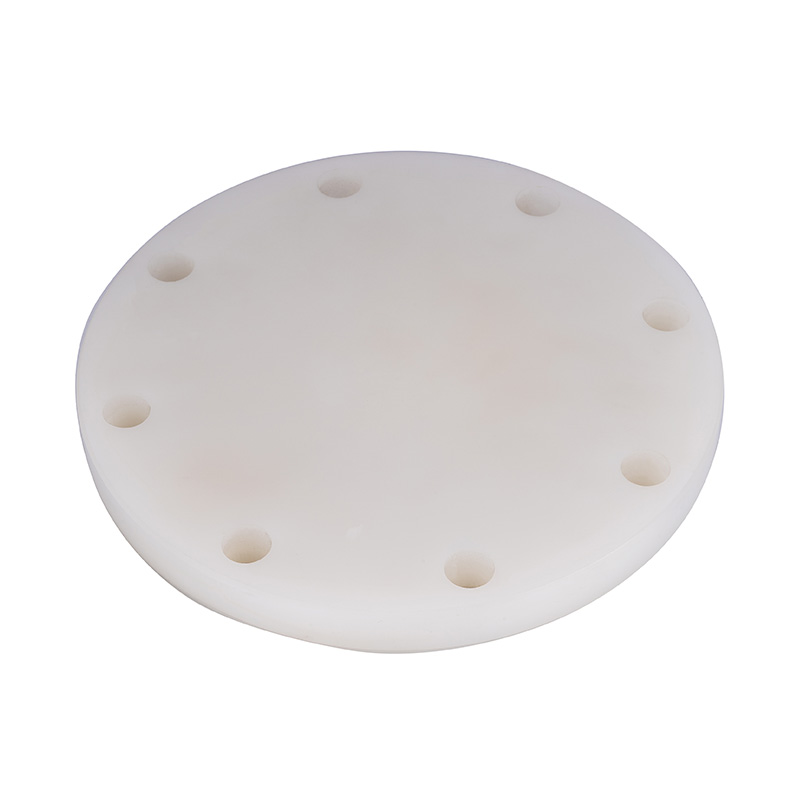

PVDF Blind Flange

DN   D d1 d2 t n-Φ
15  92.5  68.5  59  13  4-Φ14.5X19.5
20  103  73.5  69  15.5  4-Φ14.5X17
25  123  87.5  77  17.5  4-Φ14.5X20
32  136.5  97.5  87  18.5  4-Φ17.5X23
40  147  110.5  96  18  4-Φ17.5X24.5
50  161  125  117  18.5  4-Φ17.5X21.5
65  180.5  145.5  136  19  4-Φ17X22
80  195.5  159  146.5  18.5  8-Φ17X23.5
100  222.5  190  170.5  20.5  8-Φ17.5X22
125  249  214  204.5  21  8-Φ17.5X22.5
150  280  240.5  234.5  22.5  8-Φ21.5X24.5
200  342  299  287  28  8-Φ23X29
