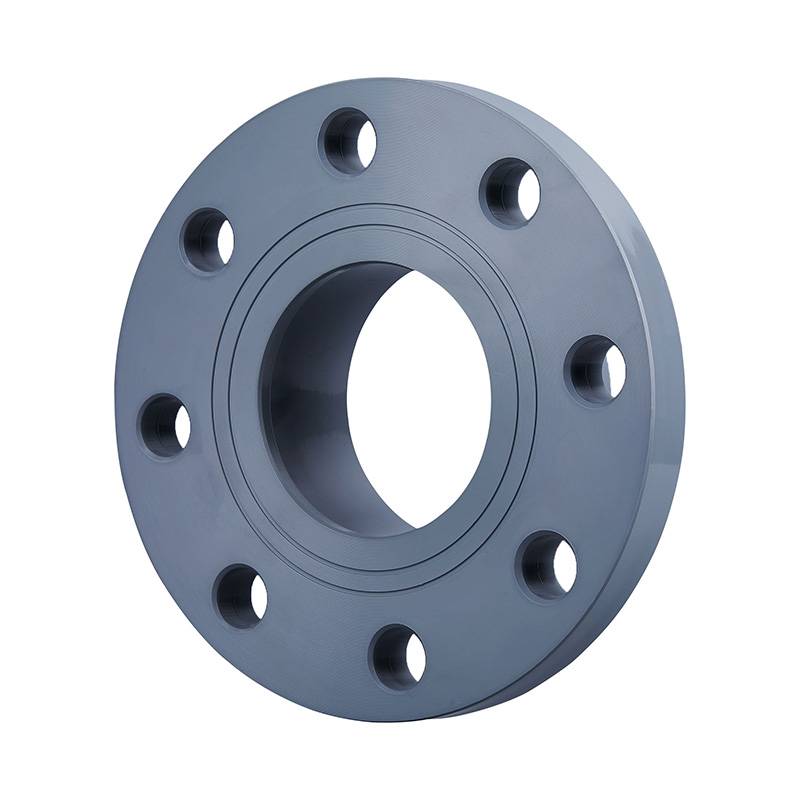

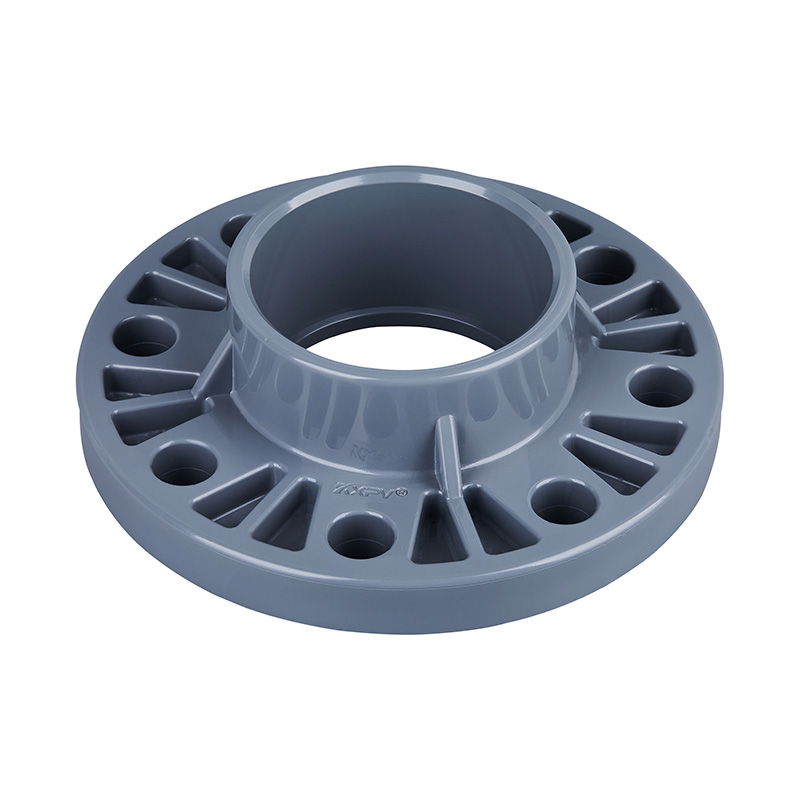

PVC-C General Purpose Socket Flange DN15-600 GB Standard

New, commonly used light gray PVC-C General Purpose Socket Flange DN15-DN600 chemical and sanitary plastic pipe fittings
Place of Origin: China
Brand Name: KXPV
Material: Plastic
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Color: Light Gray
Sizes: DN15-DN600
Application: Industry
Packing: Carton Box
Working Pressure: 1Mpa
Delivery Time: 7 Days
MOQ: 1 Piece

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Superior Chemical Resistance: Wide operating temperature range -20°C to 95°C, heavy ion content in the medium meets ultrapure water standards, and hygienic properties meet national health standards.
2. Excellent strength, toughness, and chemical corrosion resistance.
3. Durability: Excellent aging and UV resistance significantly extend the service life of other piping systems.
4. Low thermal conductivity: Approximately 1/200 that of steel; self-extinguishing flame retardancy.
5. Lightweight: Lightweight, equivalent to 1/5 of steel pipe and 1/6 of copper pipe.
6. Low resistance, high flow rate: Smooth, clean pipe surface, minimizes friction and adhesion when conveying fluids.
7. Easy installation, low cost: Adhesive and threaded connections are available, with glue being the most convenient.

Dimension List

DN D1 D2 D3 D4 d1 d2 L h Z e n-ø
15 28 65 95 20 17 20 14 16 4 4-ø15
20 32 75 105 25 22 24 17 19 3.5 4-ø15
25 40 85 117 32 28 29 18 22 4 4-ø15
32 50 100 140 40 36 33 20 26 5 4-ø19
40 61 110 146 50 45 38 20 31 5.5 4-ø19
50 75 125 165 63 58 50 25 38 6 4-ø19
65 88 145 184 75 69 54 25 44 6.5 4-ø19
80 105 160 199 90 84 62 26 51 7.5 8-ø19
100 127 180 220 110 104 70 26 61 8.5 8-ø19
125 161 210 249 140 134 87 28 76 10.5 8-ø19
150 184 240 282 160 154 99 30 86 12 8-ø23
200 (PN10) 249 295 340 225 219 129 32 119 12 8-ø23
200 (PN16) 249 295 340 225 219 129 32 119 12 12-ø23
250 310 350 362 406 280 254 153 30 146 15 12-ø25*31
300 346 400 432 483 315 300 174 30 164 15.5 12-ø25*41
350 393 460 470 520 355 348 197 35 184 19 16-ø22*27
400 440 515 525 580 400 390 218 35 206 20 16-ø26*31
450 494 561 589 640 450 430 243 40 231 22 20-ø26*40
500 548 620 650 715 500 480 271 40 256 24 20-ø26*41
600 692 725 770 840 630 571 506 42 321 31 20-ø26
20-ø36
700 758 840 895 710 690 376 50 361 22.5 24-ø30
