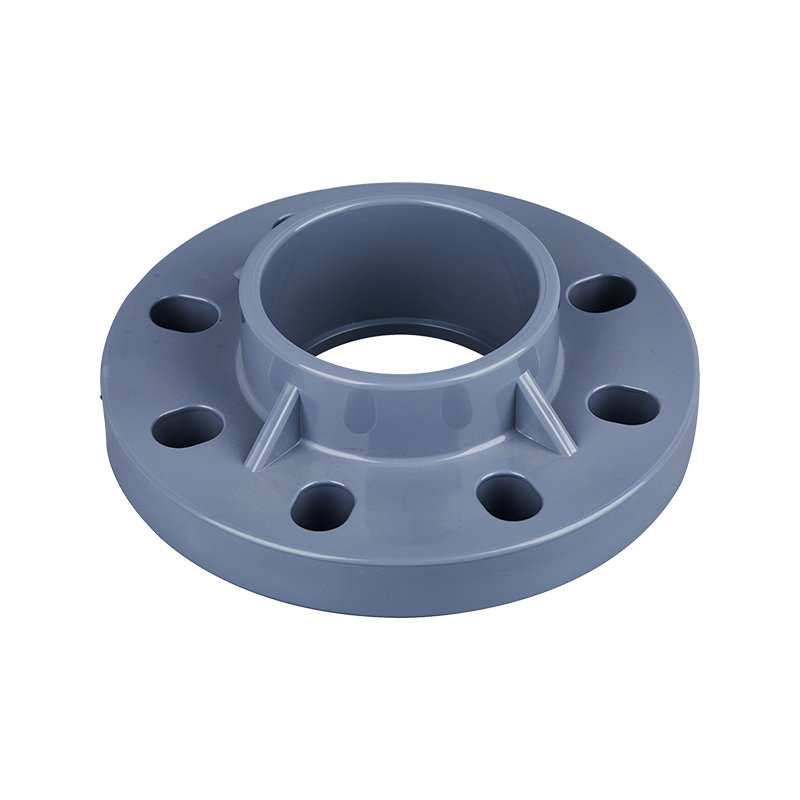

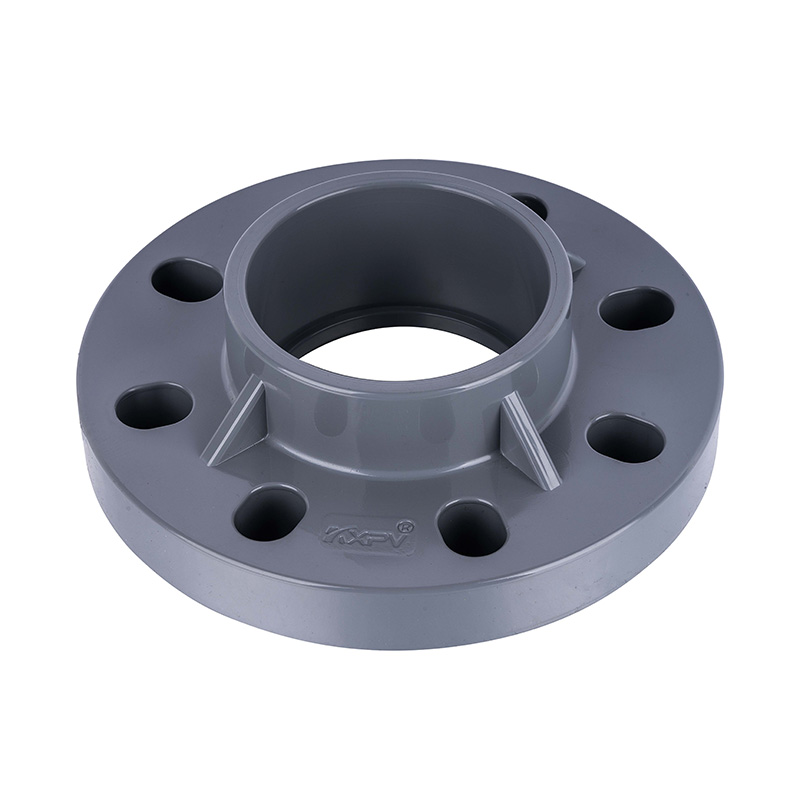

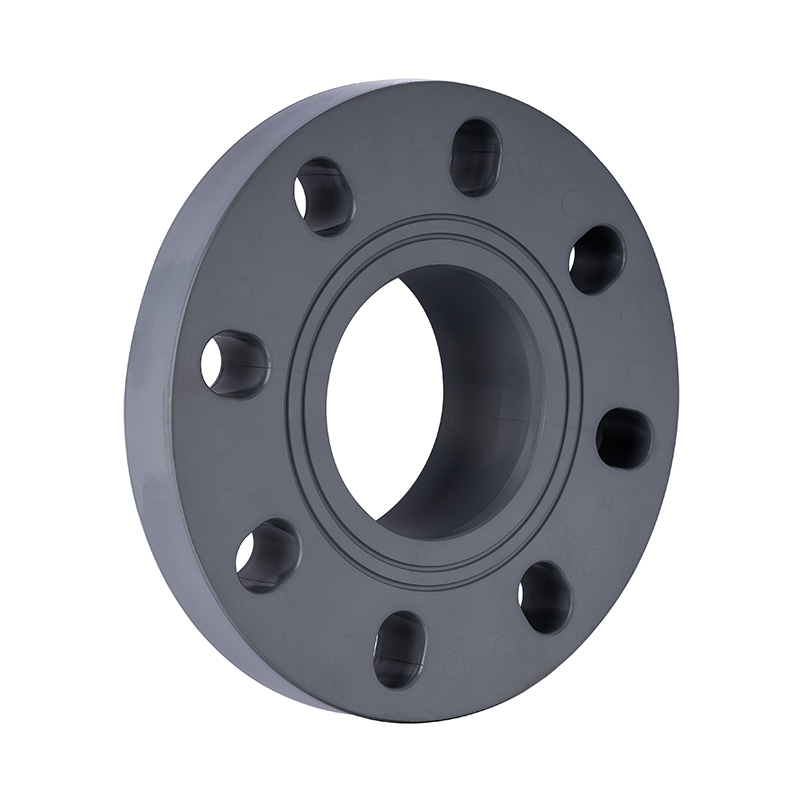

PVC-C Socket Flange DN15-200 GB Standard

New, commonly used light gray PVC-C Socket Flange DN15-DN200 chemical and sanitary plastic pipe fittings
Place of Origin: China
Brand Name: KXPV
Material: Plastic
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Color: Light Gray
Sizes: DN15-DN200
Application: Industry
Packing: Carton Box
Working Pressure: 1.0Mpa
Delivery Time: 7 Days
MOQ: 1 Piece

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Superior Chemical Resistance: Wide operating temperature range -20°C to 95°C, heavy ion content in the medium meets ultrapure water standards, and hygienic properties meet national health standards.
2. Excellent strength, toughness, and chemical corrosion resistance.
3. Durability: Excellent aging and UV resistance significantly extend the service life of other piping systems.
4. Low thermal conductivity: Approximately 1/200 that of steel; self-extinguishing flame retardancy.
5. Lightweight: Lightweight, equivalent to 1/5 of steel pipe and 1/6 of copper pipe.
6. Low resistance, high flow rate: Smooth, clean pipe surface, minimizes friction and adhesion when conveying fluids.
7. Easy installation, low cost: Adhesive and threaded connections are available, with glue being the most convenient.

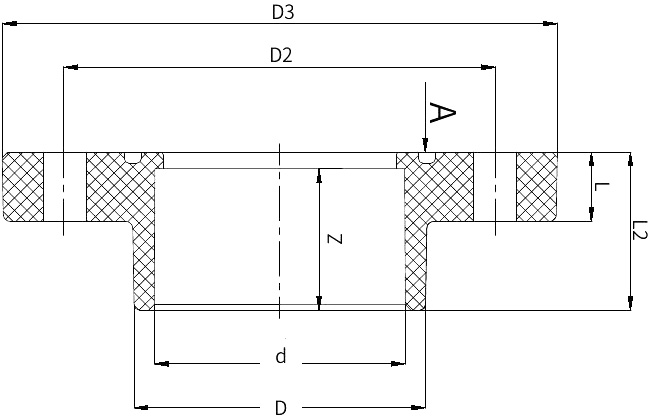

Dimension List

DN D1 D2 D3 D4 d1 d2   L h Z e n-Φ
15  28  61  70  95  20  17    20  14  16  4-Φ15X19.5
20  32  70  75  105  25  22    24  17  19  3.5  4-Φ15X17.5
25  40  79  90  120  32  28    29  18  22  4-Φ16X21.5
32  50  89  100  140  40  36    34  20  26  4-Φ18.5X24
40  61  98  110  150  50  45    37  20  31  5.5  4-Φ18.5X24.5
50  75  120  125  165  63  58    47  25  38  4-Φ18.5X21
65  88  140  145  185  75  69    53  25  44  6.5  4-Φ18.5X21
80  105  150  160  200  90  84    58  26  51  7.5  8-Φ18.5X23.5
100  127  175  190.5  225  110  104    67  28  61  8.5  8-Φ18.5X26.25
125  161  210  216  250  140  134    82  30  76  10.5  8-Φ20X24
150  184  240  242  280  160  154    92  30  86  12  8-Φ23X24
200  249  290  298.5  338  225  219    125  35  119  12  8-Φ23X27.25
