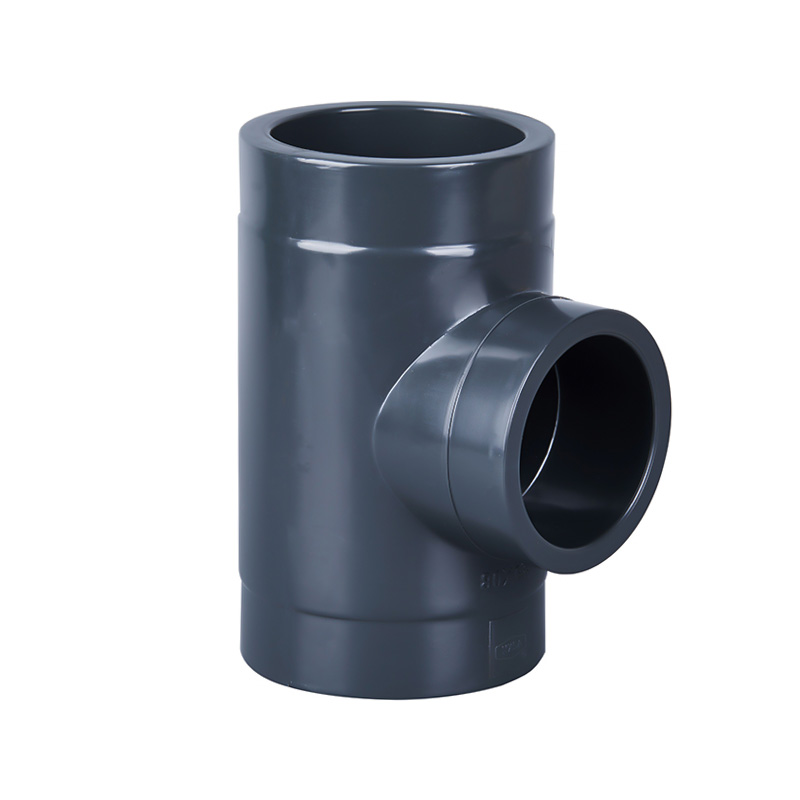

UPVC Reducing Tee DN15-600

Excellent Quality T Type 3 Way Joint UPVC Reducing Tee Plastic Pipe Connector Fitting For hot and cold water and chemical Industrial

Place of Origin: China

Brand Name: KXPV

Material: Plastic

Technics: Forged

Connection: socket

Shape: Equal

Head Code: Square

Color: Gray Black

Size: DN15-DN600

Application: Industry

Packing: Carton Box

Working Pressure: 1.0-1.6Mpa (10-25bar)

Delivery Time: 7 Days

MOQ: 1 Piece

Supply Ability: 10000 Piece / Pieces per Month

PREV：UPVC Tee DN15-600
NEXT：UPVC Cross DN15-200 0086 180 6712 3173 Contact Us

Description
Additional Information

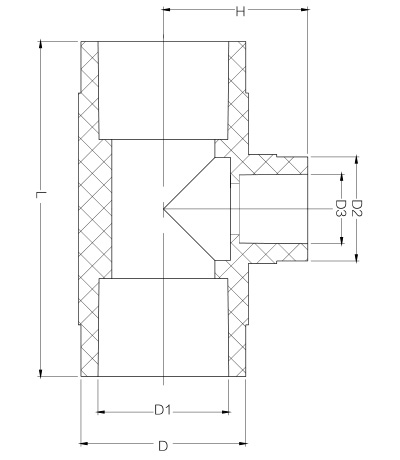

UPVC Reducing Tee Main Connection Dimension

DN	D1	D3	D	D2	H	L
DN20 × 15	25	20	32	26	28	65
DN25 × 15	32	20	41	26	32	80
DN25 × 20	32	25	41	32	35	80
DN32 × 15	40	20	50	26	36	96
DN32 × 20	40	25	50	32	39	96
DN32 × 25	40	32	50	41	42	96
DN40 × 15	50	20	63	26	41	116
DN40 × 20	50	25	63	32	44	116
DN40 × 25	50	32	63	41	47	116
DN40 × 32	50	40	63	50	51	116
DN50 × 15	63	20	79	26	48	142
DN50 × 20	63	25	79	32	51	142
DN50 × 25	63	32	79	41	54	142
DN50 × 32	63	40	79	50	58	142
DN50 × 40	63	50	79	63	63	142
DN65 × 15	75	20	95	26	53	167
DN65 × 20	75	25	95	32	57	167
DN65 × 25	75	32	95	41	59	167
DN65 × 32	75	40	95	50	63	167
DN65 × 40	75	50	95	63	68	167
DN65 × 50	75	63	95	79	75	167
DN80 × 15	90	20	113	26	61	197
DN80 × 20	90	25	113	32	64	197
DN80 × 25	90	32	113	41	67	197
DN80 × 32	90	40	113	50	71	197
DN80 × 40	90	50	113	63	76	197
DN80 × 50	90	63	113	79	83	197
DN80 × 65	90	75	113	95	89	197
DN100 × 15	110	20	134	26	71	236
DN100 × 20	110	25	134	32	74	236
DN 100 × 25	110	32	134	41	77	236
DN100 × 32	110	40	134	50	81	236
DN100 × 40	110	50	134	63	86	236
DN100 × 50	110	63	134	79	93	236
DN100 × 65	110	75	134	95	99	236
DN100 × 80	110	90	134	113	106	236
DN125 × 100	140	110	163	134	131	300
DN150 × 125	160	140	185	163	156	335
DN200 × 150	225	160	262	185	200	490
DN250 × 200	280	225	318	262	260	595
DN300 × 250	315	280	362	318	300	652
DN350 × 300	355	315	391	362	340	765
DN400 × 350	400	355	452	391	384	920
DN450 × 400	450	400	495	452	450	926
DN500 × 450	500	450	540	495	481	1026
DN600 × 500	600	500	678	540	570	1286
