PVC-U Tee DN15-600 GB Standard

Factory Price Dark Gray PVC-U Tee Equal Shape Plastic Pipe Connector DN15-DN600 Water Pipe Connector Straight Tee Connector for Drainage and Sanitation
Place of Origin: China
Brand Name: KXPV
Material: PVC-U
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Color: Dark Gray
Size: DN15-DN600
Application: Industrial
Packing: Carton Box
Delivery Time: 7 Days
MOQ: 1 Piece
Working Pressure: 1.0MPA

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Lightweight: PVC-U is only 1/10 the weight of cast iron, making it easy to transport and install, reducing costs.
2. Superior Chemical Resistance: PVC-U has excellent resistance to acids and alkalis, with the exception of strong acids and alkalis near their saturation point.
3. Durable: PVC-U offers excellent weather resistance and is resistant to corrosion by bacteria and fungi.
4. Non-conductive: PVC-U is non-conductive and is not susceptible to corrosion by electrolysis or electric current, eliminating the need for secondary processing. It is non-flammable and does not support combustion, eliminating fire safety concerns.
5. Low resistance and high flow rate: The smooth inner wall minimizes fluid flow loss, and dirt is less likely to adhere to the smooth pipe surface, making maintenance simple and cost-effective.
6. Easy Installation and Low Cost: Cutting and joining are simple. PVC glue has proven to be safe, reliable, easy to use, and cost-effective.

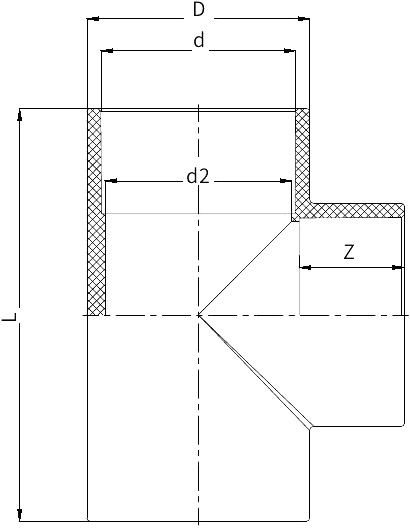

PVC-U Tee

DN D d1 d2 L Z h e
15 27 20 18 56 16 28 3.5
20 32 25 22 66 18.5 33 3.5
25 40 32 29 80 22 40 4
32 50 40 37 99 26 49.5 5
40 61 50 47 120 31 60 5.5
50 75 63 59 148 38 74 6
65 88 75 71 169 43.5 84.5 6.5
80 104 90 86 198 51 99 7
100 127 110 105 238 61 119 8.5
125 161 140 135 298 76 149 10.5
150 184 160 154 338 86 169 12
200 249 225 219 484 118.5 242 12
250 308 280 270 595 146 297.5 14
300 346 315 310 662 163.51 331 15.5
350 390 355 340 749 184 374.5 17.5
400 440 400 386 840 206 420 20
450 494 450 430 944 231 472 22
500 540 500 480 1040 256 520 20
600 692 630 591 1772 321 886 30
700 758 710 675 1902 361 951 22.5
