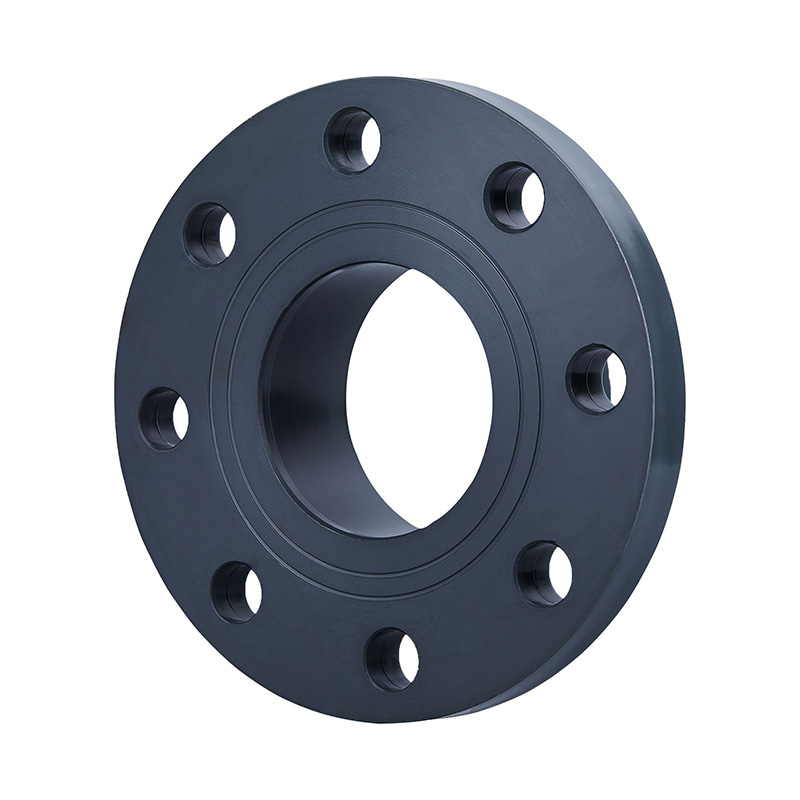

PVC-U General Purpose Socket Flange DN15-600 GB Standard

New, Commonly Used Dark Gray PVC-U Universal Socket Flange DN15-DN600 Chemical and Sanitary Plastic Pipe Fittings
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Sizes: DN15-DN600
Application: Industry
Packing: Carton Box
Working Pressure: 1Mpa
Delivery Time: 7 Days
MOQ: 1 Piece

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Lightweight: PVC-U is only 1/10 the weight of cast iron, making it easy to transport and install, reducing costs.
2. Superior Chemical Resistance: PVC-U has excellent resistance to acids and alkalis, with the exception of strong acids and alkalis near their saturation point.
3. Durable: PVC-U offers excellent weather resistance and is resistant to corrosion by bacteria and fungi.
4. Non-conductive: PVC-U is non-conductive and is not susceptible to corrosion by electrolysis or electric current, eliminating the need for secondary processing. It is non-flammable and does not support combustion, eliminating fire safety concerns.
5. Low resistance and high flow rate: The smooth inner wall minimizes fluid flow loss, and dirt is less likely to adhere to the smooth pipe surface, making maintenance simple and cost-effective.
6. Easy Installation and Low Cost: Cutting and joining are simple. PVC glue has proven to be safe, reliable, easy to use, and cost-effective.

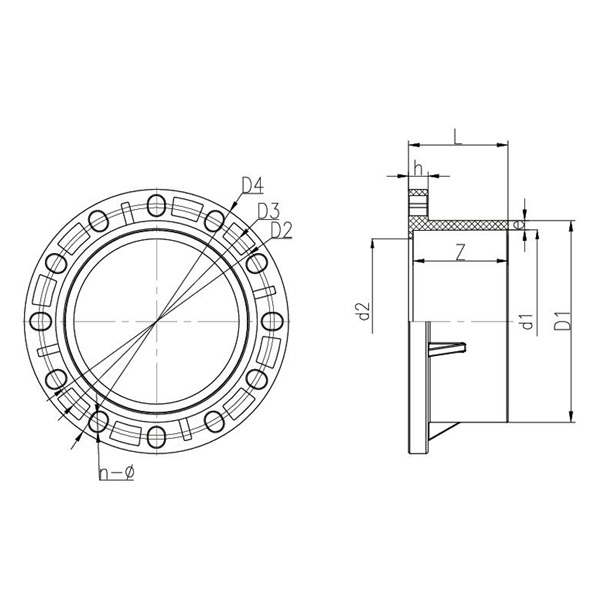

PVC-U Socket Flange

DN D1 D2 D3 D4 d1 d2 L Z e n-Ø
15 28 65 95 20 17 20 16 4 4-Ø15
20 32 75 105 25 22 24 19 3.5 4-Ø15
25 40 85 117 32 28 29 22 4 4-Ø15
32 50 100 140 40 36 33 26 5 4-Ø19
40 61 110 146 50 45 38 31 5.5 4-Ø19
50 75 125 165 63 58 50 38 6 4-Ø19
65 88 145 184 75 69 54 44 6.5 4-Ø19
80 105 160 199 90 84 62 51 7.5 8-Ø19
100 127 180 220 110 104 70 61 8.5 8-Ø19
125 161 210 249 140 134 87 76 10.5 8-Ø19
150 184 240 282 160 154 99 86 12 8-Ø23
200 (PNI0) 249 295 340 225 219 129 119 12 8-Ø23
200 (PN16) 249 295 340 225 219 129 119 12 12-Ø23
250 310 350 362 406 280 254 153 146 15 12-Ø25*31
300 346 400 432 483 315 300 174 164 15.5 12-Ø25*41
350 393 460 470 520 355 348 197 184 19 16-Ø22*27
400 440 515 525 580 400 390 218 206 20 16-Ø26*31
450 494 561 589 640 450 430 243 231 22 20-Ø26*40
500 548 620 650 715 500 480 271 256 24 20-Ø26*41
600 692 725 770 840 630 571 506 321 31 20-Ø26
20-Ø36
700 758 840 895 710 690 376 361 22.5 24-Ø30
