PVC-U End Cap DN15-200 GB Standard

Dark Gray PVC-U End Cap DN15-DN200. Custom 10 Inch 12 inch industrial plastic pipe caps for chemical and water supply
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: Socket
Material: PVC-U
Head Code: Square
Head Code: Square
Color: Gray-Black
Sizes: DN15-DN200
Application: Industry
Packing: Carton Box
Working Pressure: 1.6Mpa
Delivery Time: 7 Days
MOQ: 1 Piece

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Lightweight: PVC-U is only 1/10 the weight of cast iron, making it easy to transport and install, reducing costs.
2. Superior Chemical Resistance: PVC-U has excellent resistance to acids and alkalis, with the exception of strong acids and alkalis near their saturation point.
3. Durable: PVC-U offers excellent weather resistance and is resistant to corrosion by bacteria and fungi.
4. Non-conductive: PVC-U is non-conductive and is not susceptible to corrosion by electrolysis or electric current, eliminating the need for secondary processing. It is non-flammable and does not support combustion, eliminating fire safety concerns.
5. Low resistance and high flow rate: The smooth inner wall minimizes fluid flow loss, and dirt is less likely to adhere to the smooth pipe surface, making maintenance simple and cost-effective.
6. Easy Installation and Low Cost: Cutting and joining are simple. PVC glue has proven to be safe, reliable, easy to use, and cost-effective.

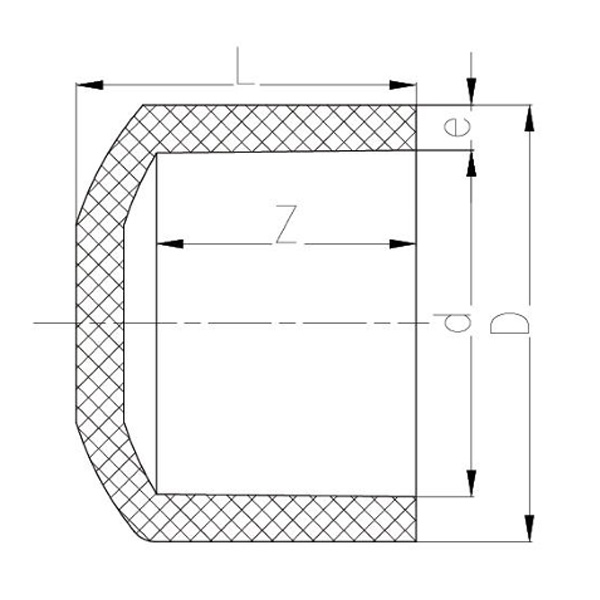

PVC-U Endcap

DN D d L Z e
15  28  20  21.3  16
20  32  25  24.3  19  3.5
25  41  32  29.1  22  4.5
32  51  40  34.1  27  5.5
40  63  50  40.9  31  6.5
50  79  63  52.4  38
65  92  75  63.4  44  8.5
80  110  90  76.6  51  10
100  132  110  83.8  61  11
125  162  140  104  76  11
150  183  160  114.8  86  11.5
200  250  225  154  118.5  12.5
250  308  280  190  146  14
300  346  315  218  164  15.5
350  392  355  230  184  18.5
400  442  400  246  206  21
