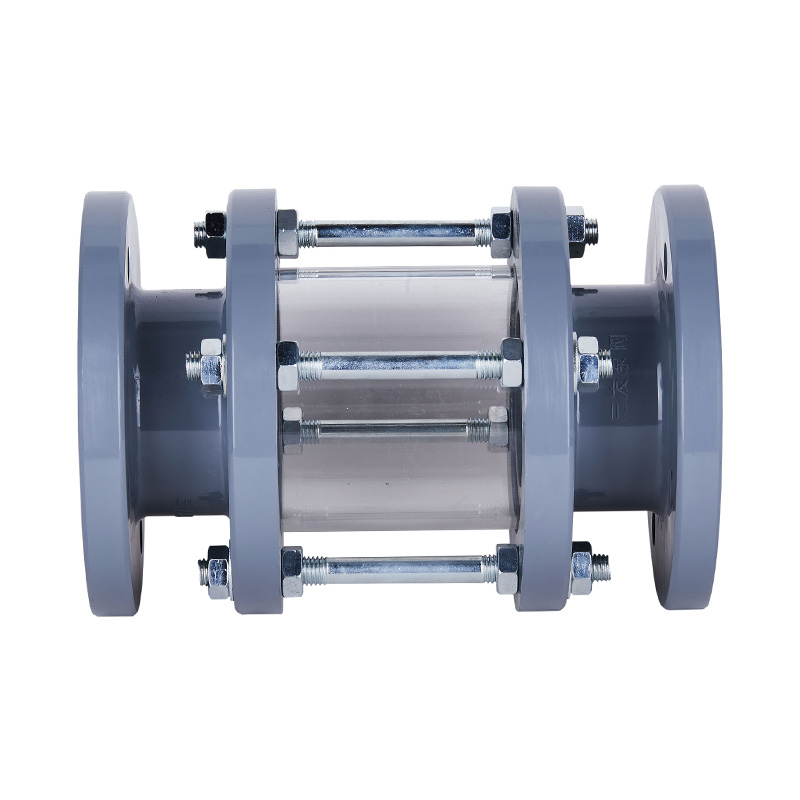

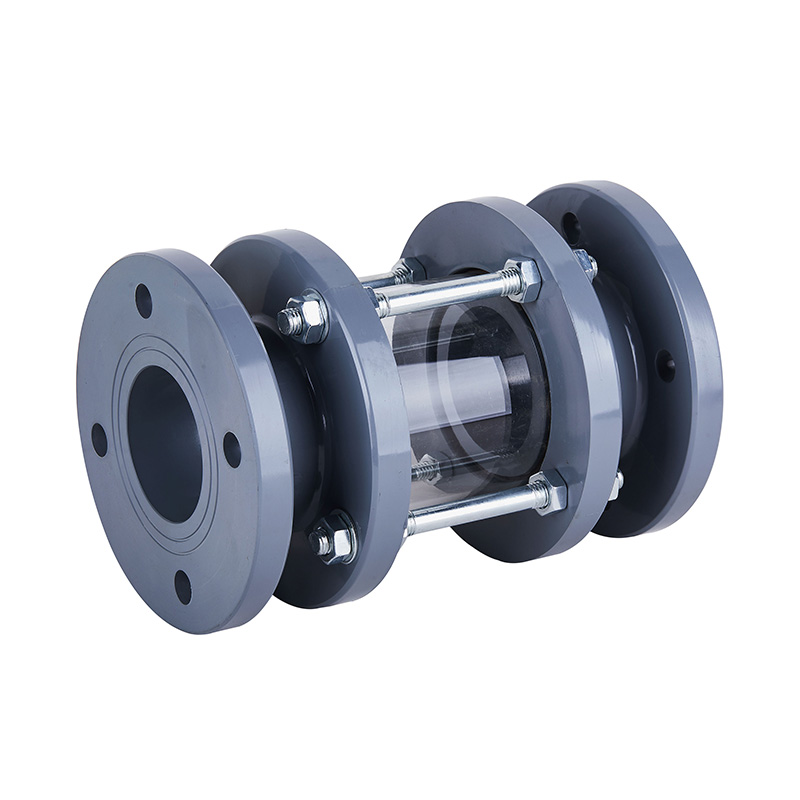

PVC-C Sight Glass DN15-200 GB Standard

Grey PVC-C Sight Glass DN15-200 Reducing Shape High Pressure Plastic Oil Level Flange Sight Glass JIS DIN ANSI Standard
Origin: Ningbo, Zhejiang
Brand Name: KXPV
Material: PVC-C
Technics: Forged
Color: Grey
Connection: Flange
Shape: Reducing
Head Code: Hexagon
Product name: Sight Glass
Size: DN15-200
Delivery Time: 7 Days
MOQ: 1 Pieces
Supply Ability: 10000 Piece/Pieces per Month

Pressure Class: 1.0Mpa(10bar)

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Compact and attractive appearance
2. Lightweight and easy to install
3. Wear-resistant and easy to disassemble, ensuring simple maintenance
4. Made of borosilicate glass, it is highly corrosion-resistant and suitable for a wide range of applications
5. Suitable for most harsh working environments and boasts a long service life



Part Material Table

Sight Glass Assembly Detail Drawing

No.

Name

Material

1

Base

FRPP,PVDF,PVC-C,PVC-U,PPH

2

Hexagonal nut

Steel

3

Double headed stud

Steel

4

Glass

Glass

5

Washer

EPDM,FPM

6

Base

FRPP,PVDF,PVC-C,PVC-U,PPH

Dimension List



DN(mm) D d L b n-Φ
GB JIS ANSI GB JIS ANSI
25(1/2") 115  85  90  79.4  240  14  4-Φ14 4-Φ19 4-Φ16
32(11/4") 150  100  100  232  16  4-Φ18 4-Φ19
40(11/2") 150  110  105  98.4  232  16  4-Φ18 4-Φ19 4-Φ16
50(2") 165  125  120  120.7  233  16  4-Φ18 4-19 4-Φ18
65(21/2") 195  145  140  139.7  278  19  4-Φ18 4-19 4-Φ18
80(3") 195  160  150  152.4  278  20  8-Φ18 8-Φ19 4-Φ18
100(4") 220  180  175  190.5  310  21  8-Φ18 8-Φ19 8-Φ18
125(5") 250  210  210  215.9  350  26  8-Φ18 8-Φ23 8-Φ22
150(6") 285  240  240  241.3  385  26  8-Φ22 8-Φ23 8-Φ22
200(8") 340  295  298.5  400  30  8-Φ22 8-Φ22
250(10") 406  350  355  362  400  30  12-Φ22 12-Φ25 12-Φ26
300(12") 475  400  431.8  440  32  12-Φ22 12-Φ26
