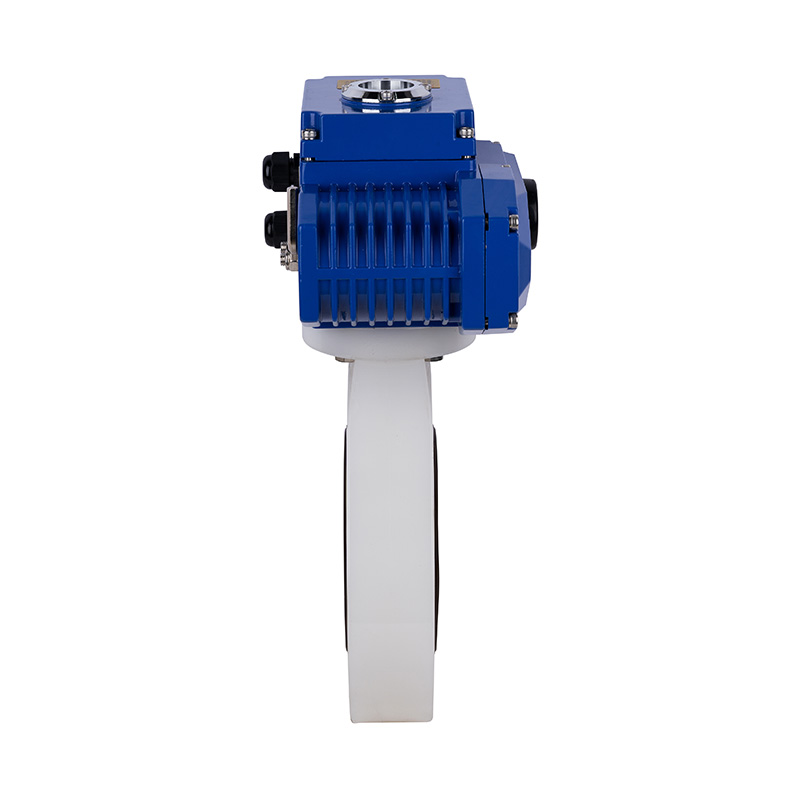

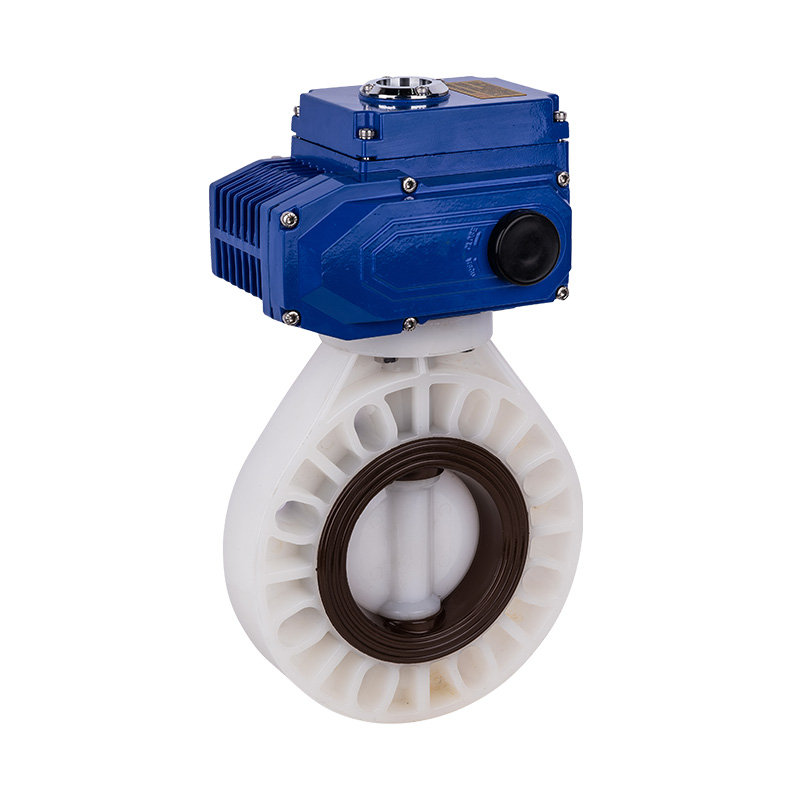

PVDF D971X-10F Electric Butterfly Valve DN32-1000 1-1/4"-30" ANSI Standard

PVDF Electric Actuated Butterfly Valve, Center Seal Soft Seal DN32-1000, Industrial and Residential Plastic Butterfly Valve ANSI Standard
Operation Mode: Automatic
Connection Type: Wafer
Structure: Center Seal
Seal Type: Forced Seal
Stem: Standard
Pressure Class: 1.0Mpa(10bar)
Working Temperature: -40~150°C
Seal Material: Soft Seal
Application: Industrial Use, Water Industry Use
Stem Material: Steel, Stainless Steel
Brand: KXPV
Size: DN32-1000
Origin: Zhejiang, Ningbo

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1.The engineering plastic series butterfly valves are made from FRPP, PVDF, PVC-C, PVC-U, PPH, and other corrosion-resistant thermoplastic materials, molded in a single injection process, offering strong corrosion resistance.
2.High corrosion-resistant rubber is used to ensure the valve's sealing performance, making it suitable for transporting high-viscosity media.
3.The valve has a simple structure with a 90° rotation for quick opening and closing, easy installation, and good regulation performance.
4.The actuator can be remotely controlled via a computer or control center, allowing the valve to regulate the flow and flow rate of the medium, making operation more convenient, efficient, and reducing labor costs while ensuring the safety of on-site personnel.

Part Material Table

No. Name Material Qty.
CPVC UPVC PVDF PPH FRPP
Body CPVC UPVC PVDF PPH FRPP
 Disc CPVC UPVC PVDF PPH FRPP
Sealing rubber FPM EPDM FPM EPDM
Stem Steel

Dimension List

Specification D1(mm) D2(mm) D3(mm) D4(mm) T(mm) n-Φ(mm) YxY(mm) S(mm) d1(mm) d2(mm) 4-Φ1(mm)
1¼"(32) 140 106 89 33 35 4-Φ17 11x11 12 50 50 4-Φ7
1½"(40) 148 110 98 41.5 39 4-Φ19 14x14 12 72 68 4-Φ10
2"(50) 162 125 110 48.5 43 4-Φ19 14x14 12 72 68 4-Φ10
2½"(65) 180 145 130 63 45 4-Φ19 14x14 16 72 68 4-Φ10
3"(80) 198 160 150 75.5 45 8-Φ19 14x14 16 72 68 4-Φ10
4"(100) 225 191 170 95 56.5 8-Φ19 17x17 18 80 70 4-Φ10
5"(125) 255 216 200 120 65 8-Φ23 17x17 18 80 70 4-Φ10
6"(150) 285 241 225 143.5 75 8-Φ23 17x17 23 80 70 4-Φ10
8"(200) 340 299 295 195 85 8-Φ23 22x22 23 80 70 4-Φ10
10"(250) 423 366 350 245.5 110 12-Φ23x32 22x22 30 102 102 4-Φ12
12"(300) 495 436 400 291.5 115 12-Φ23x42 22x22 30 102 102 4-Φ12
14"(350) 555 470 460 340 127 16-Φ22 12-Φ29 22x22 35 102 102 4-Φ12
16"(400) 607 540 515 399 140 16-Φ23x45 27x27 35 140 140 4-Φ18
18"(450) 645 583 565 446 150 20-Φ28.5 16-Φ34.5 27x27 40 165 165 4-Φ22
20"(500) 708 640 615 494 150 20-Φ26x41 36x36 40 165 165 4-Φ22
24"(600) 820 750 725 570 170 20-Φ35x47 36x36 40 254 254 4-Φ22
