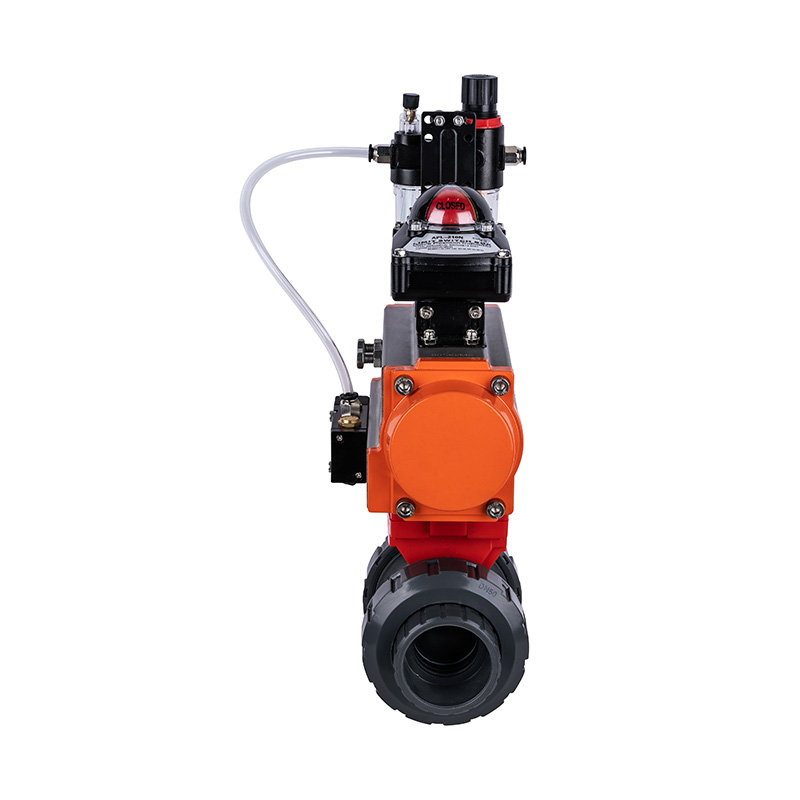

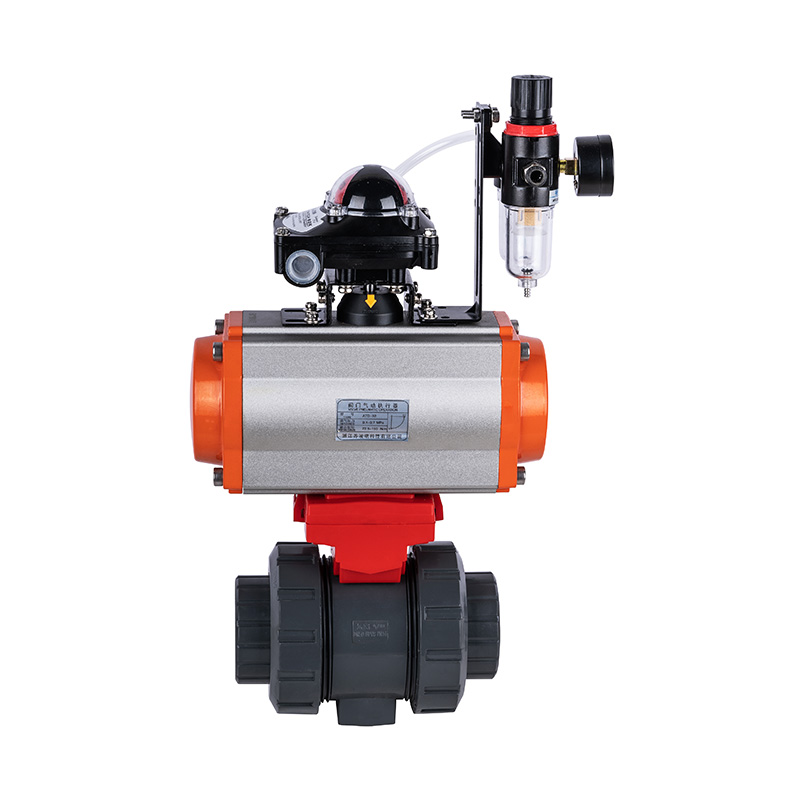

PVC-U Q661F-10UPneumatic Double Union Ball Valv DN15-100 1/2"-4" ANSI Standard

Excellent Quality Ultra-Durable Pneumatic Socket Ball Valve, High-Temperature Plastic Pneumatic Ball Valve, Suitable for Chemical Industry ANSI Standard
Model: Q661F-10U
Material: Plastic
Connection Type: Double Union
Operation Mode: Manual
Nominal Pressure: 10kg
Flow Path: Straight Through
Structure: Fixed Ball Valve
Function: By-pass Valve
Temperature: High Temperature
Application: Industrial Use, Water Industry Use
Brand: KXPV
Size: DN15-DN100
Origin: Zhejiang, Ningbo

Pressure Class: 1.0Mpa(10bar)

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1.The engineering plastic series ball valves are made of FRPP, PVDF, PVC-C, PVC-U, PPH, and other corrosion-resistant thermoplastic materials, molded in a single injection process, offering strong corrosion resistance.
2.The PTFE seat's tightness can be adjusted appropriately.
3.The double O-ring design provides dual leak protection.
4.The valve features a refined appearance, smooth surface, fine processing, and a full-flow design.
5.The actuator can be remotely controlled via a computer or control center, allowing the valve to regulate the flow and flow rate of the medium, making operation more convenient, efficient, and reducing labor costs while ensuring the safety of on-site personnel



Part Material Table

No. Name Material Qty.
PVC-C PVC-U
1 Electro-pneumatic support Alloy material 1
2 Stem PVC-C PVC-U 1
3 Body PVC-C PVC-U 2
4 Seal seat O-ring 1 FPM EPDM 1
5 Seal seat PVC-C PVC-U 1
6 Seal seat O-ring 2 FPM EPDM 2
7 Seal seat O-ring 3 FPM EPDM 2
8 Sten seal PTFE PTFE 2
9 Ball PVC-C PVC-U 1
10 cap press PVC-C PVC-U 2
11 American Standard Union Fitting PVC-C PVC-U 2
12 StemO-rings FPM EPDM 2
13 StemConnectors Alloy material 1

Dimension List

Specification D(mm) D1(mm) L(mm) Z(mm) H(mm) Φ1(mm) L1XL1(mm) L2(mm) n-Φ1(mm)
1/2"(15) 50 21.34 110 22.5 87.8 Φ50 11x11 13 4-Φ6.5
3/4"(20) 58 26.67 126 25.5 97.5 Φ50 11x11 13 4-Φ6.5
1"(25) 70 33.4 140 29 106.6 Φ50 11x11 13 4-Φ6.5
1¼"(32) 85 42.16 160 32 123.5 Φ50 14x14 17 4-Φ6.5
1½"(40) 98 48.26 170 35 138.5 Φ50 14x14 17 4-Φ6.5
2"(50) 124 60.32 190 38.5 163.5 Φ50 14x14 17 4-Φ6.5
2½"(65) 135 73.02 230 45 191 Φ70 17x17 21 4-Φ9
3"(80) 158 88.9 280 48 222.5 Φ70 17x17 21 4-Φ9
4"(100) 192 114.3 340 57.5 261.5 Φ70 Φ102 22x22 21 4-Φ9 4-Φ11
