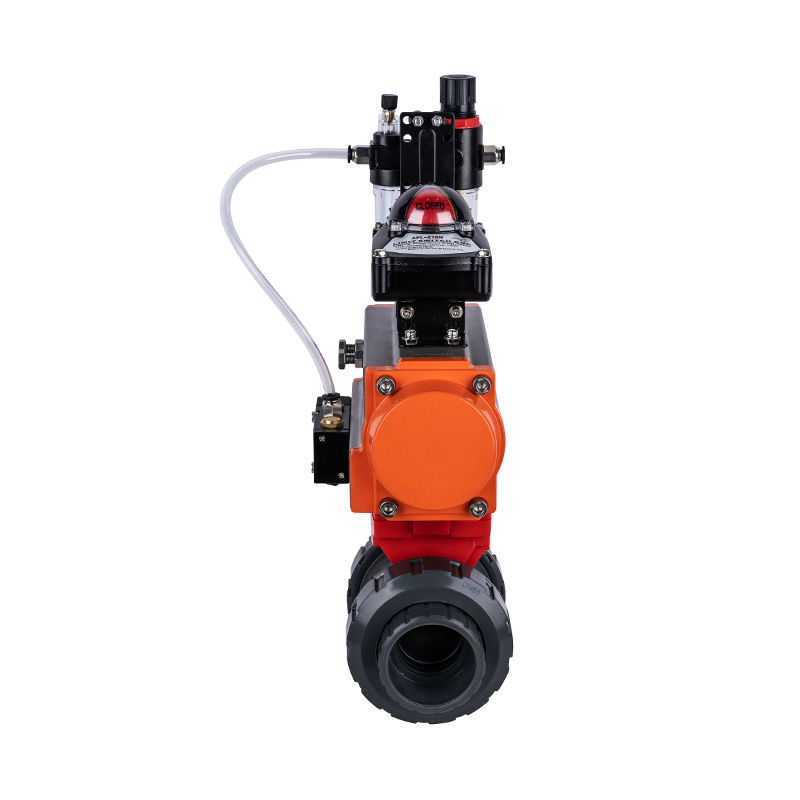

PVC-U Q661F-10U Pneumatic Double Union Ball Valve DN15-100 GB Standard

Excellent quality, ultra-durable pneumatic socket ball valve, plastic high-temperature pneumatic ball valve suitable for industrial
Model: Q661F-10U
Material: Plastic
Connection: Union Type
Operation mode: Manual
Nominal pressure: 10 kg
Passage: Straight-through
Structure: Trunnion ball valve
Function: Bypass valve
Temperature: High temperature
Applications: Industrial, Water industry
Trademark: KXPV
Specifications: DN15-DN100
Origin: Ningbo, Zhejiang

Pressure Class: 1.0Mpa(10bar)

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. These engineering plastic ball valves are injection-molded in one piece using corrosion-resistant thermoplastics such as FRPP, PVDF, PVC-C, PVC-U, and PPH, offering strong corrosion resistance.
2. The PTFE seat is adjustable for tightness.
3. Double-layer O-rings provide dual leak protection.
4. Exquisite appearance, smooth surface, fine machining, and full-flow design.
5. The actuator can be remotely controlled via a computer or control center, controlling the flow and flow of media by opening and closing the valve. This provides greater convenience and speed, reduces labor costs, and ensures the safety of on-site workers.



Part Material Table

No. Name Material Qty.
Electric/Pneumatic actuator bracket Alloy material 1
Stem PPH、PVC-C、PVC-U、PVDF、FRPP 1
Body PPH、PVC-C、PVC-U、PVDF、FRPP 2
Seal seat O-ring 1 FPM,EPDM 1
Seal seat PPH、PVC-C、PVC-U、PVDF、FRPP 1
Seal seat O-ring 2 FPM,EPDM 2
Seal seat O-ring 3 FPM,EPDM 2
Sten seal(Sealed ball) PTFE 2
Ball body PPH、PVC-C、PVC-U、PVDF、FRPP 1
10  Retaining PPH、PVC-C、PVC-U、PVDF、FRPP 2
11  Union PPH、PVC-C、PVC-U、PVDF、FRPP 2
12  StemO-ring FPM,EPDM 2
13  StemConnectors Alloy material 1
14  Pneumatic actuator Aluminium alloy 1
15  Signal feedback device 1

Dimension List

Specification D d L H Z
15  50  20  110  87.8  20
20  58  25  126  97.5  24
25  70  32  140  106.6  27
32  85  40  160  123.5  30
40  98  50  170  138.5  32
50  127  63  190  163.5  37
65  144  75  230  191  44
80  158  90  280  222.5  51
100  192  110  340  261.5  61
