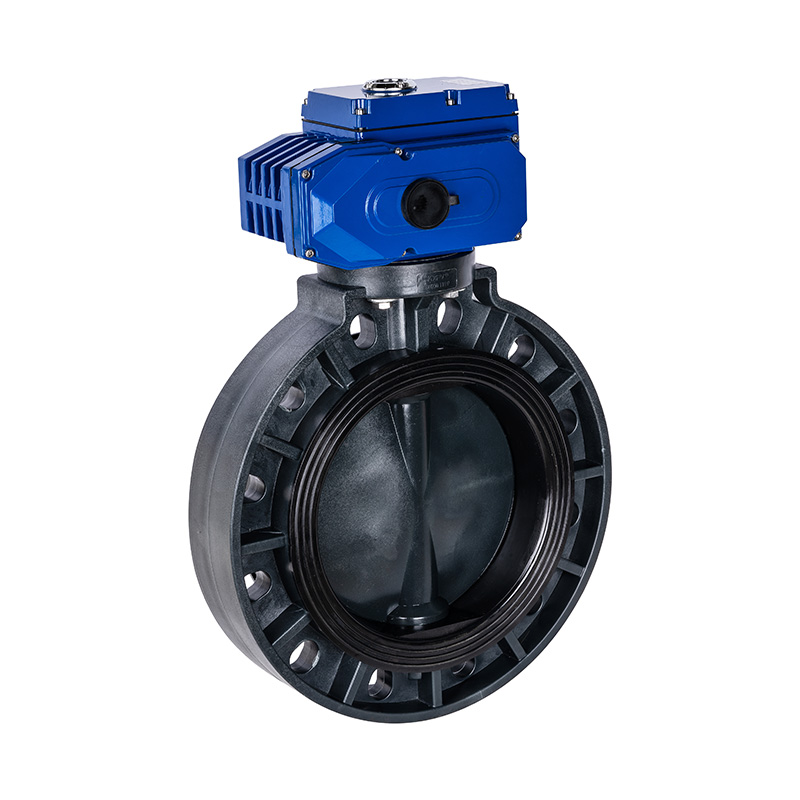

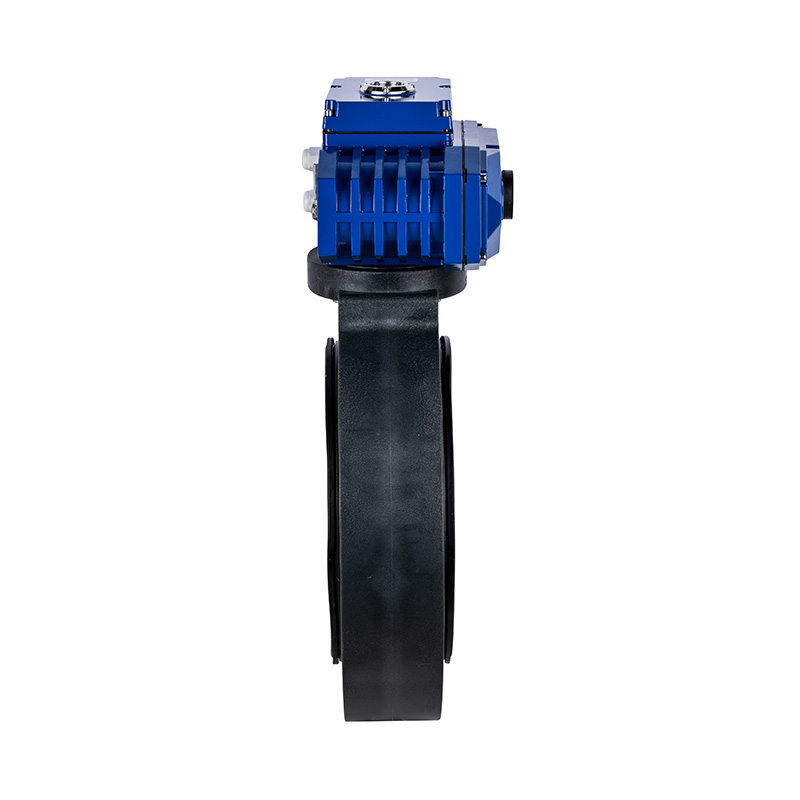

PVC-U D971X-10U Electric Butterfly Valve DN32-1000 GB Standard

PVC-U Electric Automatic Butterfly Valve, Center Seal, Soft Seal, DN32-1000, Industrial and Household Plastic
Actuation Mode: Manual
Connection Type: Wafer
Structure: Center Seal
Seal Type: Forced Seal
Valve Stem: Standard
Pressure Class: 1.0Mpa(10bar)
Working Temperature:-5~45°C
Seal Surface Material: Soft Seal
Applications: Industrial, Water Industrial
Valve Stem: Steel, Stainless Steel
Brand Name: KXPV
Specifications: DN32-1000
Place of Origin: Ningbo, Zhejiang

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. These engineering plastic butterfly valves are injection-molded from corrosion-resistant thermoplastics such as FRPP, PVDF, PVC-C, PVC-U, and PPH, offering strong corrosion resistance.
2. Highly corrosion-resistant rubber is used to ensure a tight seal, making them suitable for conveying high-viscosity media.
3. They feature a simple structure, 90° rotation for quick opening and closing, easy installation, and excellent adjustability.
4. The actuator can be remotely controlled via a computer or control center, allowing the opening and closing of the valve to control the flow and flow of the media. This provides greater convenience and speed, reduces labor costs, and ensures the safety of on-site workers.



Part Material Table

No. Name Material
1 Electric actuator Aluminium
2 Stud Steel,StainlessSteel
3 Hexagonal nut SS Steel、Steel
4 Body FRPP,PVDF,PVC-C,PVC-U,PPH
5 Sealing rubber EPDM,FPM
6 Valve Plate FRPP,PVDF,PVC-C,PVC-U,PPH
7 Stem Steel,StainlessSteel

Dimension List

DN(mm) D1 D2 D3 T H n-Φ
GB JIS ANSI GB JIS ANSI
32(11/4") 140  100  100  88.9  33  35  270  4-Φ17 4-Φ17 4-Φ17
40(11/2") 150  110  105  98.4  41.5  39  280  4-Φ19X25 4-Φ19X25 4-Φ19X25
50(2") 160  125  120  120.7  50  40  300  4-Φ19X26.5 4-Φ19X26.5 4-Φ19X26.5
65(21/2") 180  145  140  139.7  64  42  310  4-Φ19X26.5 4-Φ19X26.5 4-Φ19X26.5
80(3") 200  160  150  152.4  77  42  400  8-Φ19X25 8-Φ19X25 4-Φ19X20
100(4") 225  180  175  190.5  96  52  410  8-Φ19X32 8-Φ19X32 8-Φ19X32
125(5") 255  210  210  215.9  120  61  500  8-Φ23X33 8-Φ23X33 8-Φ23X33
150(6") 290  240  240  241.3  145  71  530  8-Φ23X34 8-Φ23X34 8-Φ23X34
200(8") 340  295  290  298.5  196.5  81  600  8-Φ23X33.5 12-Φ23X27 8-Φ23X33.5
250(10") 420  350  355  362  245.5  110  650  12-Φ23.5X32 12-Φ23.5X32 12-Φ23.5X32
300(12") 500  400  431.8  291.5  115  750  12-Φ28X48 12-Φ28X48
350(14") 550  460  476.3  340  127  850  16-Φ26 12-Φ33
400(16") 619  515  510  539.8  399  140  950  16-Φ36X52 16-Φ36X52 16-Φ36X52
450(18") 655  565  565  577.9  446  150  1050  20-Φ25 20-27 16-Φ33
500(20") 705  620  620  635  494  150  1140  20-Φ26X33 20-Φ27X33 20-Φ26X33
600(24") 816  725  749.3  570  170  1290  20-Φ28X38 20-Φ28X38
700(28") 910  840  840  670  185  1530  24-Φ33X44 24-33X44
800(32") 1055  960  950  977.9  755  240  1690  24-Φ44.5X65 28-Φ36X52 24-Φ44.5X65
1000(40") 1230  1160  1160  935  236  1800  28-Φ36X52 28-Φ39
