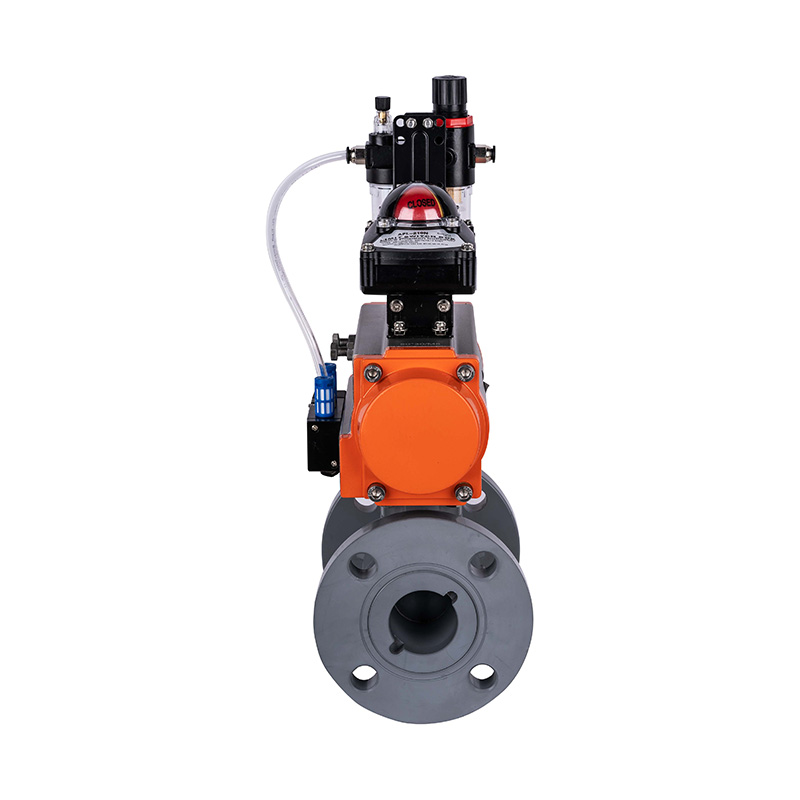

PVC-C Q641F-10V Pneumatic Flange Ball Valve DN15-300 1/2"-12" ANSI Standard

Competitive Price PVC-C Pneumatic Actuated Ball Valve Custom for Agriculture and Water Systems ANSI Standard
Type: Ball Valve
Origin: China
Brand: KXPV
Model: D641X-10V
Application: General
Medium Temperature: High Temperature, Medium Temperature
Power: Pneumatic
Medium: Acid
Port Size: DN15-300
Structure: Fixed Ball Valve
Main Material: PVC-C
Connection: Flanged End
Standard: GB/T37842 F4
Use: Industrial
Working Temperature: -20~+95℃
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece

Pressure Class: 1.0Mpa(10bar)

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1.The engineering plastic series ball valves are made of FRPP, PVDF, PVC-C, PVC-U, PPH, and other corrosion-resistant thermoplastic materials, molded in a single injection process, offering strong corrosion resistance.
2.The PTFE seat's tightness can be adjusted appropriately.
3.The double O-ring design provides dual leak protection.
4.The valve features a refined appearance, smooth surface, fine processing, and a full-flow design.
5.The actuator can be remotely controlled via a computer or control center, allowing the valve to regulate the flow and flow rate of the medium, making operation more convenient, efficient, and reducing labor costs while ensuring the safety of on-site personnel



Part Material Table

No. Name Material Qty.
1 Stem PVC-C 1
2 Body PVC-C 1
3 Seal seat PVC-C 1
4 Inner plug PVC-C 1
5 Ball PVC-C 1
6 Sten seal PTFE 2
7 Sten seal PTFE 4

Dimension List

Specification D1(mm) D2(mm) D3(mm) L(mm) h(mm) n-Φ1(mm) Φ1(mm) Φ2(mm) SXS(mm) 4-Φ2(mm) Z(mm)
2"(50) 161 121 44 185 22 4-Φ19 70 72 14x14 4-Φ10x11 16.5
4"(100) 219 191 78 285 25 8-Φ19 102 104.5 22x22 4-Φ12x13.25 20
5"(125) 249 216 97 357 30 8-Φ19 124 126 22x22 4-Φ14x15 25
6"(150) 285 241 110 410 30 8-Φ19 124 126 22x22 4-Φ14x15 27
8"(200) 341 299 140 407 35 8-Φ23 125 125 22x22 4-Φ14 30
10"(250) 396 362 170 458 40 12-Φ25 125 125 22x22 4-Φ14 30
