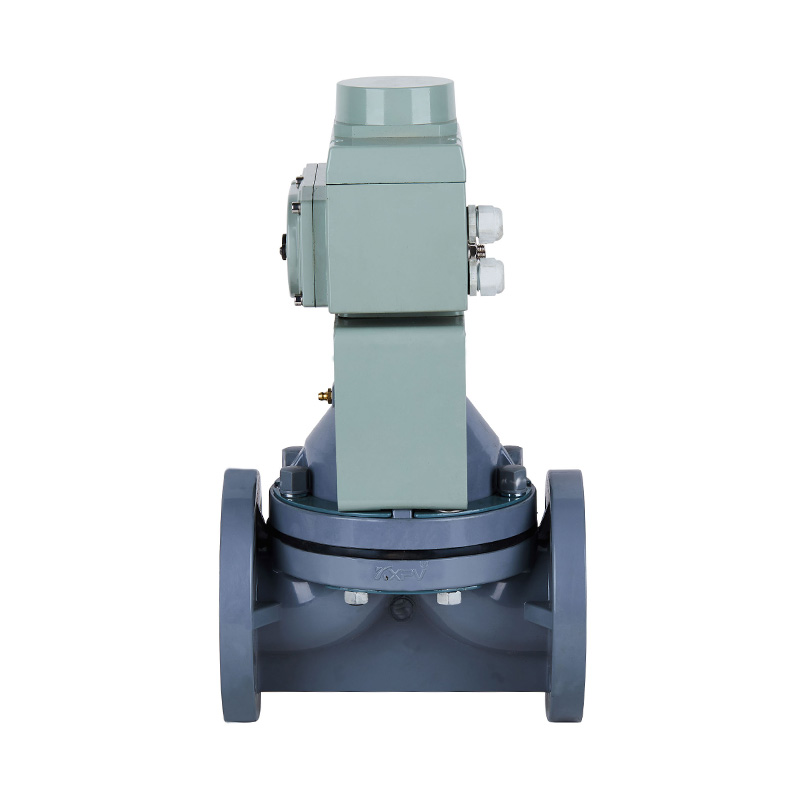

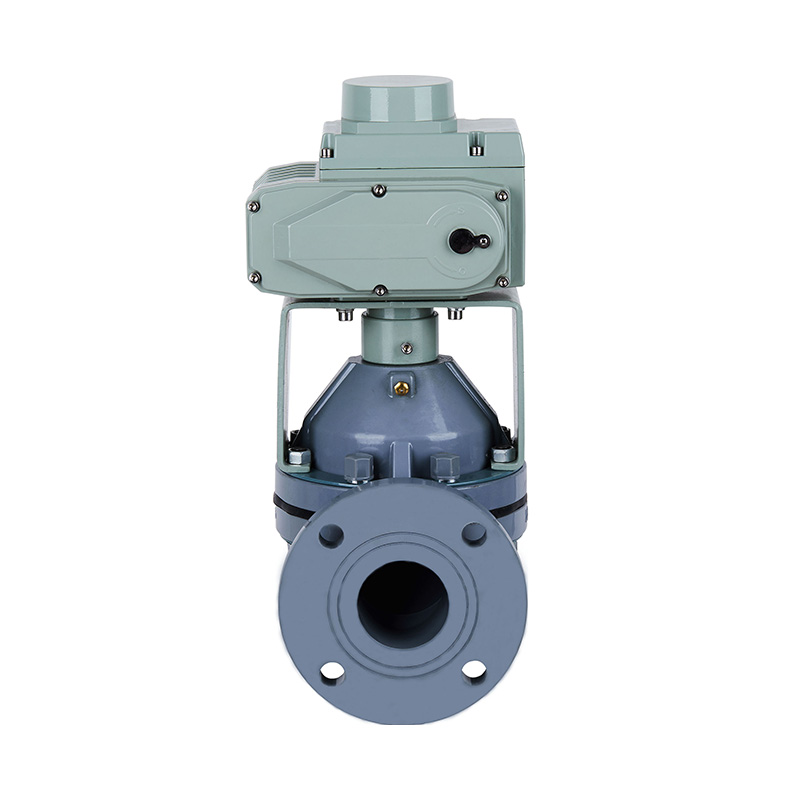

| App Temperature Bound List |
| Material | Medium temperature℃ | Material | Medium temperature℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVC-C | -20℃~+95℃ | PVC-U | -5℃~+45℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| FRPP | -20℃~+120℃ | PPH | -20℃~+110℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVDF | 40℃~+150℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Structural Features |
1. The sealing diaphragm is made of F46 or PFA, with a folding endurance of ≥ 120,000 times and corrosion resistance comparable to F4.
2. The screw-type lifting mechanism provides low opening and closing torque and excellent stability.
3. The actuator can be remotely controlled via a computer or control center, controlling the flow and flow of the medium by opening and closing the valve. This provides greater convenience and speed, reduces labor costs, and ensures the safety of on-site workers.
| Part Material Table |

| No. | Name | Material | Qty. | |||||||||||||||||||||||||
| 1 | Electric actuator | Aluminium alloy | 1 | |||||||||||||||||||||||||
| 2 | Connecting rod | Steel | 2 | |||||||||||||||||||||||||
| 3 | Electric/Pneumatic actuator bracket | Iron | 1 | |||||||||||||||||||||||||
| 4 | Connectiong pin | Steel | 1 | |||||||||||||||||||||||||
| 5 | Bonnet | PPH、PVC-C、PVC-U、PVDF、FRPP | 1 | |||||||||||||||||||||||||
| 6 | Yoke Nut | SS Steel、Copper | 1 | |||||||||||||||||||||||||
| 7 | Platen | Q345、SS Steel | 2 | |||||||||||||||||||||||||
| 8 | Screw | Steel,StainlessSteel | 4 | |||||||||||||||||||||||||
| 9 | Platen | Q345、SS Steel | 2 | |||||||||||||||||||||||||
| 10 | Body | PPH、PVC-C、PVC-U、PVDF、FRPP | 1 | |||||||||||||||||||||||||
| 11 | Stem | Steel,StainlessSteel | 1 | |||||||||||||||||||||||||
| 12 | Nut Cap | Steel,StainlessSteel | 4 | |||||||||||||||||||||||||
| 13 | Valve Plate | PPH,PVC-C,PVC-U FRPP,PVDF/cast iron |
1 | |||||||||||||||||||||||||
| 14 | Flim | EPDM,FPM | 1 | |||||||||||||||||||||||||
| 15 | Diaphragm | F46.PFA.PTFE | 1 | |||||||||||||||||||||||||
| Dimension List |
| Specification | D | d | L | b | n-Φ | |||||||||||||||||||||||
| 15 | 95 | 65 | 125 | 14 | 4-Φ14 | |||||||||||||||||||||||
| 20 | 105 | 75 | 135 | 18 | 4-Φ14 | |||||||||||||||||||||||
| 25 | 115 | 85 | 145 | 18 | 4-Φ14 | |||||||||||||||||||||||
| 32 | 135 | 100 | 160 | 18 | 4-Φ18 | |||||||||||||||||||||||
| 40 | 145 | 110 | 180 | 20 | 4-Φ18 | |||||||||||||||||||||||
| 50 | 160 | 125 | 210 | 22 | 4-Φ18 | |||||||||||||||||||||||
| 65 | 180 | 145 | 250 | 24 | 4-Φ18 | |||||||||||||||||||||||
| 80 | 195 | 160 | 300 | 24 | 8-Φ18 | |||||||||||||||||||||||
| 100 | 225 | 180 | 350 | 28 | 8-Φ18 | |||||||||||||||||||||||
| 125 | 245 | 210 | 400 | 30 | 8-18 | |||||||||||||||||||||||
| 150 | 280 | 240 | 455 | 30 | 8-Φ23x27 | |||||||||||||||||||||||
| 200 | 335 | 295 | 570 | 40 | 8-Φ22 | |||||||||||||||||||||||
| 250 | 390 | 350 | 680 | 38 | 12-Φ23 | |||||||||||||||||||||||
| 300 | 445 | 400 | 680 | 38 | 12-Φ23 | |||||||||||||||||||||||
