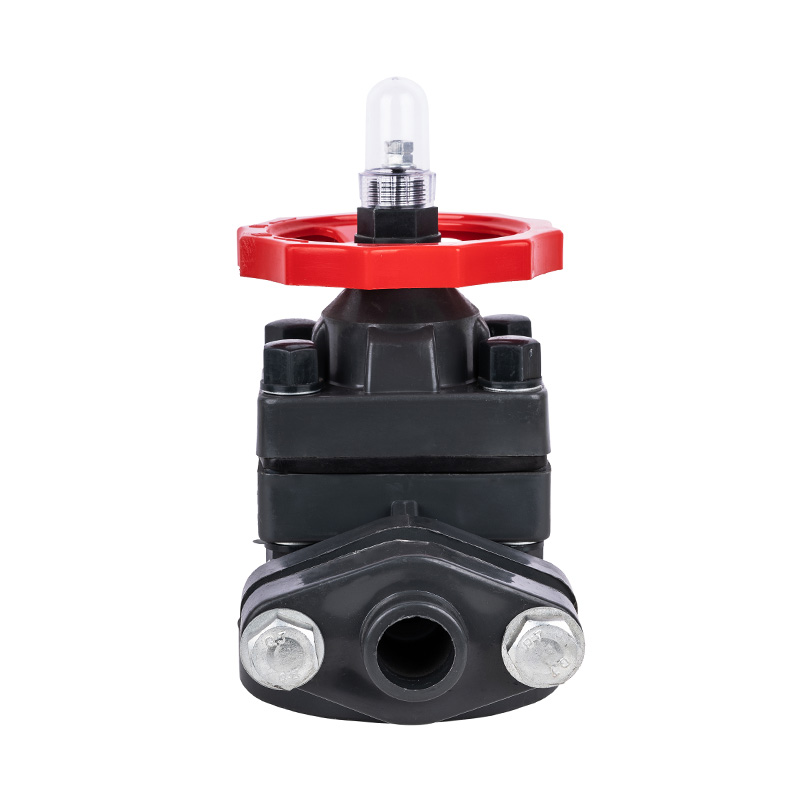

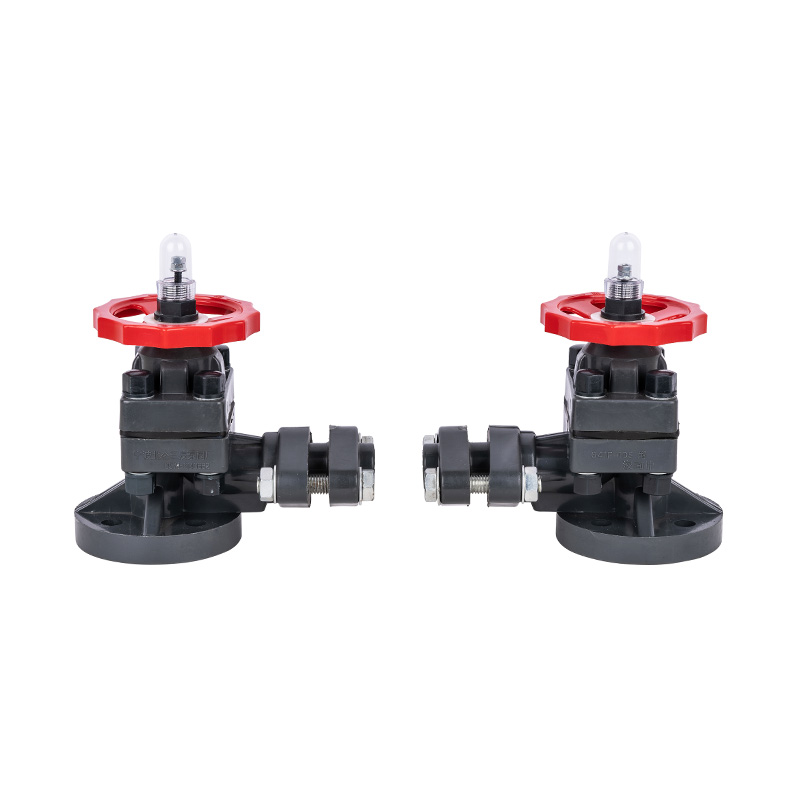

PVC-U G41F-10F Level Indicator DN15-50 1/2"-2" ANSI Standard

PVC-U Level Indicator Custom DN15-50U PVC, PVC Competitive Price Water Tank Plastic Level Indicator for Water Treatment ANSI Standard
Origin: Zhejiang, Ningbo
Brand Name: KXPV
Model: G41F-10U
Product Name: Level Indicator
Color: Dark Gray
Size: DN15-50
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece
Supply Capacity: 10,000 Pieces/Month

Pressure Class: 1.0Mpa(10bar)

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1.The valve body is lightweight, highly corrosion-resistant, does not adsorb scale, and has a long service life.
2.Scientifically designed for stable operation; reliable quality, sturdy and durable; flanged connection for easy installation.
3.The valve cover, valve disc, valve body, and fittings are available in materials such as PVDF, PVC-C, PVC-U, PPH, and FRPP, customizable according to customer requirements.
4.The product is suitable for various acidic and alkaline solvents and pipelines, offering excellent resistance to aging and corrosion.



Part Material Table
No. Name Material Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Cover limit AS AS AS AS AS 1
2 Wheel Alloy material 1
3 Connecting rod PVC-C PVC-U PVDF PPH FRPP 1
4 Sealing PTFE PTFE PTFE PTFE PTFE 1
5 Bonnet PVC-C PVC-U PVDF PPH FRPP 1
6 Body PVC-C PVC-U PVDF PPH FRPP 1
7 Diaphragm F46 F46 F46 F46 F46 1
8 Sealing rubber EPDM EPDM EPDM EPDM EPDM 1

Dimension List





Specification D(mm) d(mm) L(mm) n-Φ(mm)
1/2"(15) 95 60 20 4-Φ16
3/4"(20) 105 70 20 4-Φ16
1"(25) 115 79 20 4-Φ16
1¼"(32) 135 89 20 4-Φ16
1½"(40) 145 98 20 4-Φ16
2"(50) 160 121 20 4-Φ19
