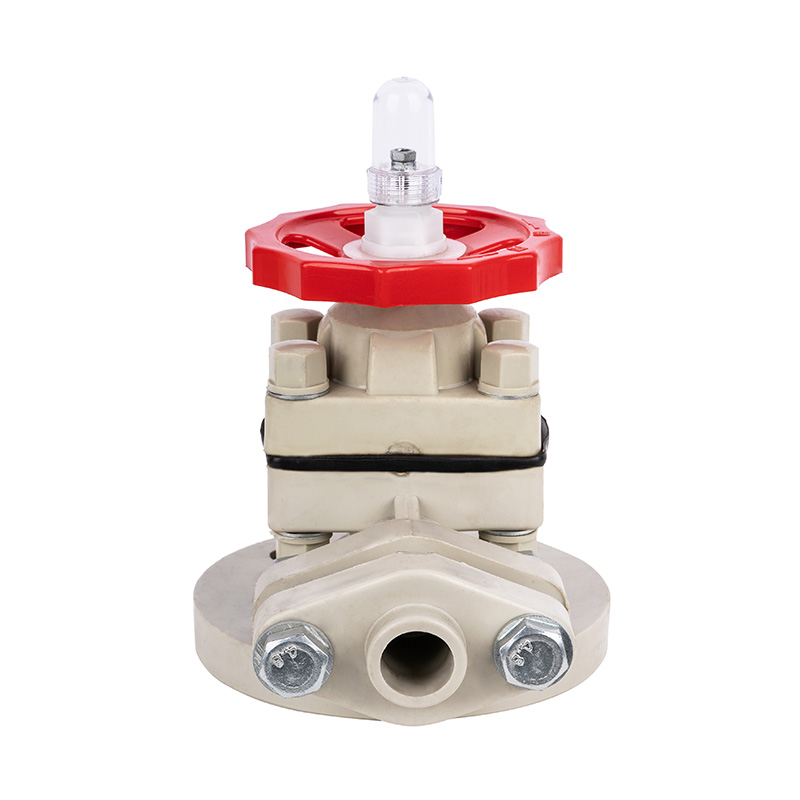

PPH G41F-10S Level Indicator DN15-50 GB Standard

PPH Level Indicator Custom low price PPH Level indicators for water
Origin: Ningbo, Zhejiang
Brand Name: KXPV
Material: PPH
Model Number: G41F-10S
Product name: Level Indicator
Color: Earthy Yellow
Size: DN15-50
Delivery Time: 7 Days
MOQ: 1 Pieces
Supply Ability: 10000 Piece/Pieces per Month

Pressure Class: 1.0Mpa(10bar)

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. The valve body is lightweight, corrosion-resistant, scale-resistant, and has a long service life.
2. Scientific design ensures smooth operation; reliable quality and durability; flange connection for easy installation.
3. The valve cover, disc, body, and connectors are available in PVDF, PVC-C, PVC-U, PPH, and FRPP, and can be customized to meet customer needs.
4. The product is suitable for use in various acidic and alkaline solvents and pipelines, and exhibits excellent aging and corrosion resistance.

Part Material Table
No. Name Material
1 Retaining Nut FRPP
2 Wheel Alloy material
3 Hexagonal nut Steel
4 Filling plece Steel
5 Bonnet PPH,PVC-C,PVC-U,FRPP,PVDF
6 Yoke Nut cast iron
7 Disc PPH,PVC-C,PVC-U,FRPP,PVDF
8 Diaphragm EPDM,F46
9 Body PPH,PVC-C,PVC-U,FRPP,PVDF
10 Cover limit AS
11 Liner ring FRPP
12 Cap nut FRPP
13 Double headed stud Steel
14 Stem Steel
15 Flim EPDM
16 Sealing PTFE
17 Filling plece Steel
18 Hexagonal nut Steel
19 Connectors PPH,PVC-C,PVC-U,FRPP,PVDF
20 Double headed stud Steel



Level Indicator Assembly Detail Drawing

Dimension List





DN(mm) D d L1 L2 b n-Φ
GB JIS ANSI GB JIS ANSI
15(1/2") 95  65  70  60.3  195  50  20  4-Φ14 4-Φ15 4-Φ16
20(3/4") 105  75  75  69.9  195  50  20  4-Φ14 4-Φ15 4-Φ16
25(1") 115  85  90  79.4  200  50  20  4-Φ14 4-Φ19 4-Φ16
32(11/4") 135  100  100  88.9  200  50  20  4-Φ18 4-Φ19 4-Φ16
40(11/2") 145  110  105  98.4  205  50  20  4-Φ18 4-Φ19 4-Φ16
50(2") 160  125  120  120.7  205  50  20  4-Φ18 4-Φ19 4-Φ18
