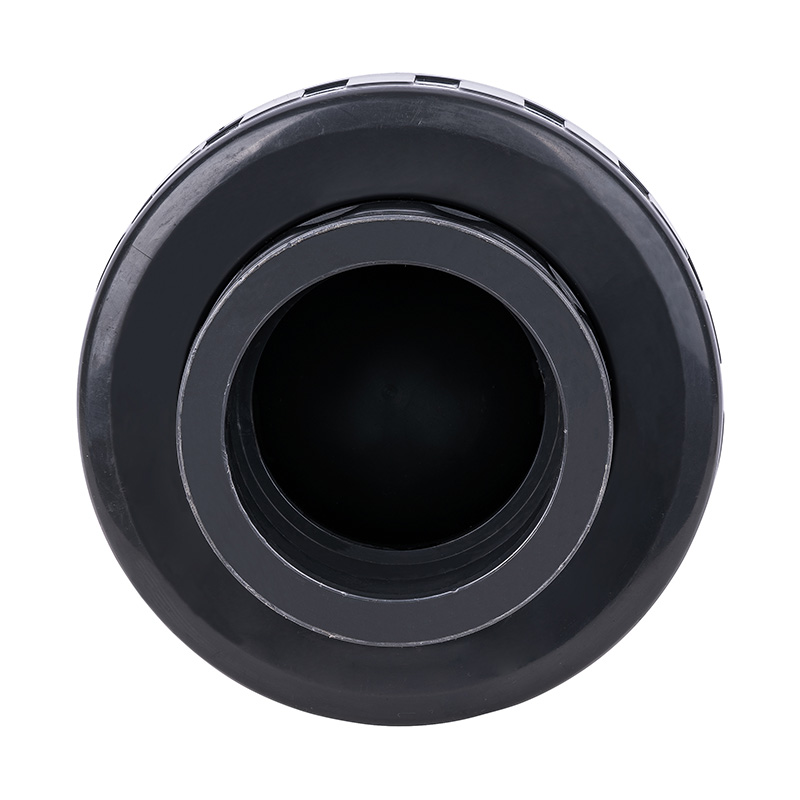

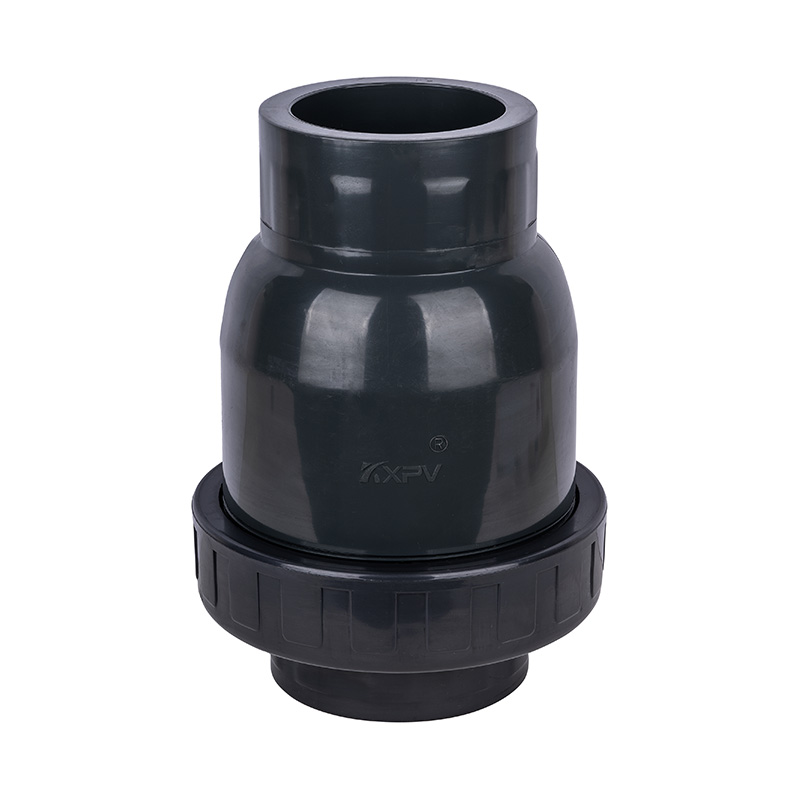

PVC-U H61F-10U Single Union Socket Check Valve DN15-100 GB Standard

Factory Price Grey PVC-U Single Socket Union Wafer Check Valve DN15-DN100 Plastic Check Valve for chemical and sanitary industry
Type: Plastic Check Valves
Place of Origin: China
Brand Name: KXPV
Model Number: H61F-10U
Application: General
Temperature of Media: Medium Temperature, Normal Temperature
Power: Manual
Media: Acid
Port Size: DN15-DN100
Structure: Socket Type
Product name: Single Union Socket Check Valve
Delivery Time: 7 Days
MOQ: 1 Piece
Color: Grey

Pressure Class: 1.0Mpa(10bar)

Product Structural Features

1. Backflow Protection
Due to its reduced number of components, this valve is less susceptible to external pressure. Furthermore, its high precision completely prevents backflow.

2. Compact and Lightweight
The check valve's compact structure and lightweight design allow it to be installed in confined spaces and are easy to maintain.



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table
No. Name Material
1 Body FRPP,PVDF,PVC-C,PVC-U,PPH
2 Solld ball FRPP,PVDF,PVC-C,PVC-U,PPH
3 Bonnet FRPP,PVDF,PVC-C,PVC-U,PPH
4 Sealing rubber FPM,EPDM
5 Socket joint FRPP,PVDF,PVC-C,PVC-U,PPH
6 Retaining Nut FRPP,PVDF,PVC-C,PVC-U,PPH

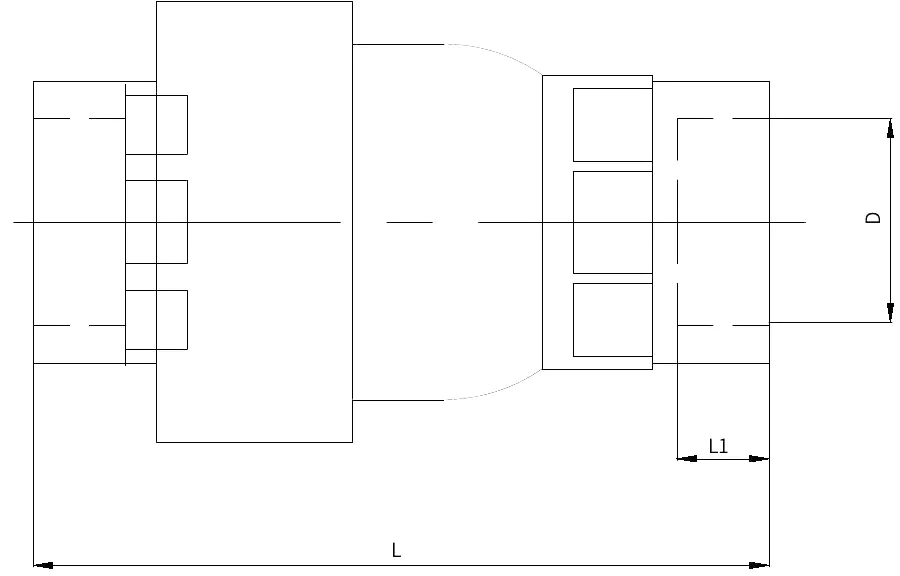

Single Union Soket Check Valve Assembly Detail Drawing



Dimension List



Specification DN L D Z
15 86 20 20
20 103 25 24
25 117 32 26.5
32 144 40 26
40 154 50 31
50 175 63 35
65 270 75 45
80 275 90 45
100 320 110 57
