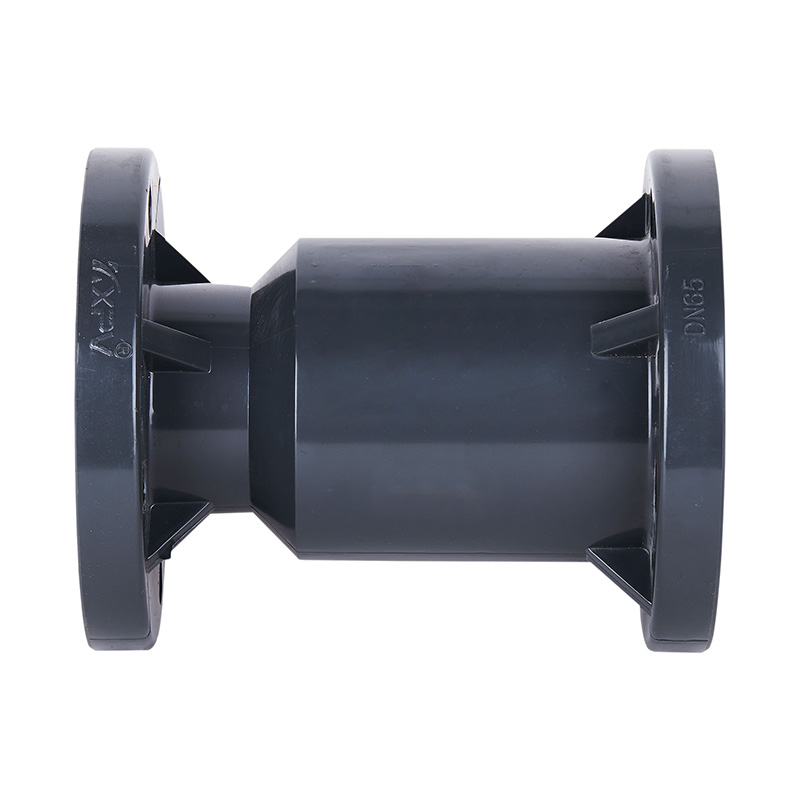

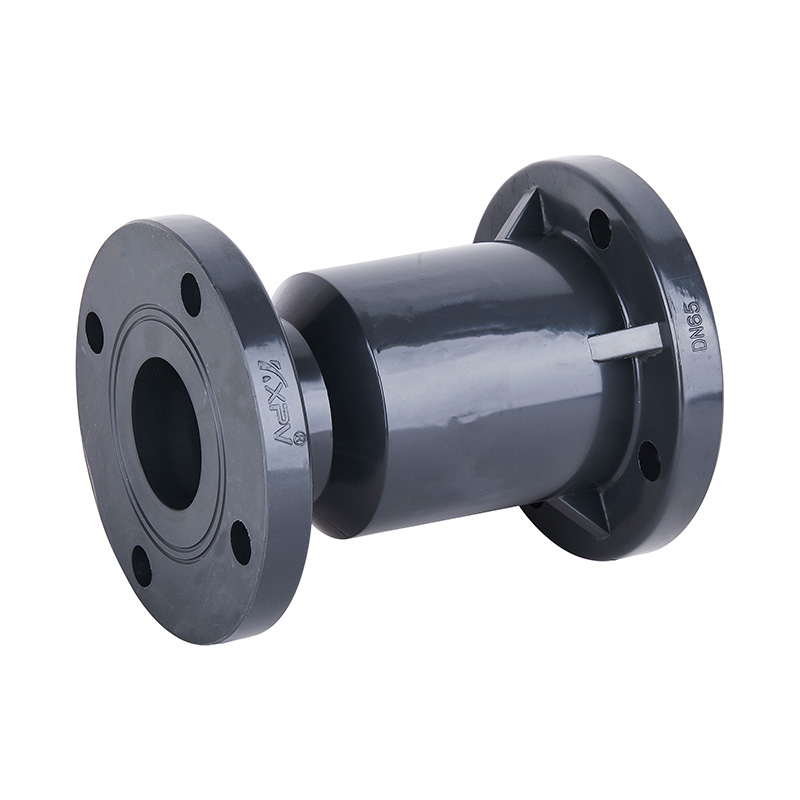

PVC-U H41F-10U Vertical Check Valve DN15-300 1/2"-12" ANSI Standard

Gray PVC-U Vertical Ball Check Valve Custom 6" 8" Small Flanged End PVC-U Horizontal Check Valve for Wastewater and Chemical Industry ANSI Standard
Origin: China
Brand: KXPV
Model: H41F-10U
Application: General
Material: Plastic
Medium Temperature: Medium, Ambient
Color: Gray/Black
Pressure: Medium Pressure
Power Supply: Manual
Medium: Acid
Port Size: DN15–DN300
Structure: Check Valve
Product Name: Vertical Check Valve
Connection: Flanged End
Pressure Class: 1.0Mpa(10bar)
Operation: Handwheel
Body Material: Plastic
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece

Product Structural Features

1.Corrosion Resistance
The valve is made from new plastic materials, providing strong corrosion resistance against various acidic and alkaline media.
2.Large Flow Capacity
The valve is designed with a reasonable structure that reduces pipeline resistance, allowing the medium to flow smoothly and reducing pressure loss while ensuring flow.
3.Check Valve Functionality
With a simple structure and minimal external influences, it offers excellent backflow prevention.
4.Compact and Lightweight
The valve has a small and compact design, making it ideal for installation in tight spaces



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table
No. Name Material Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Body PVC-C PVDF PPH FRPP 1
2 Ball Core PVC-C PVDF-C PVC-C 1
3 Sealing rubber FPM 1
4 Seal seat PVC-C PVC-U PVDF PPH FRPP 1



Dimension List



Specification d(mm) D(mm) L(mm) b(mm) n-Φ(mm)
2"(50) 121 160 185 22 4-Φ19
4"(100) 191 215 285 25 8-Φ19
5"(125) 216 245 357 31 8-Φ22
6"(150) 241 280 410 30 8-Φ23
8"(200) 299 335 400 35 8-Φ23
10"(250) 362 406 450 38 12-Φ25
