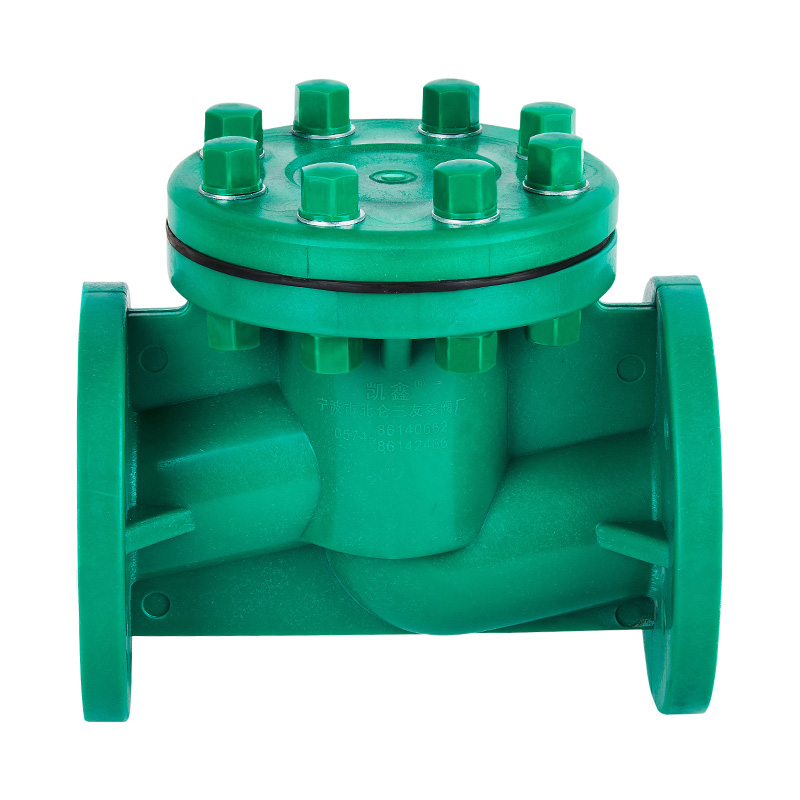

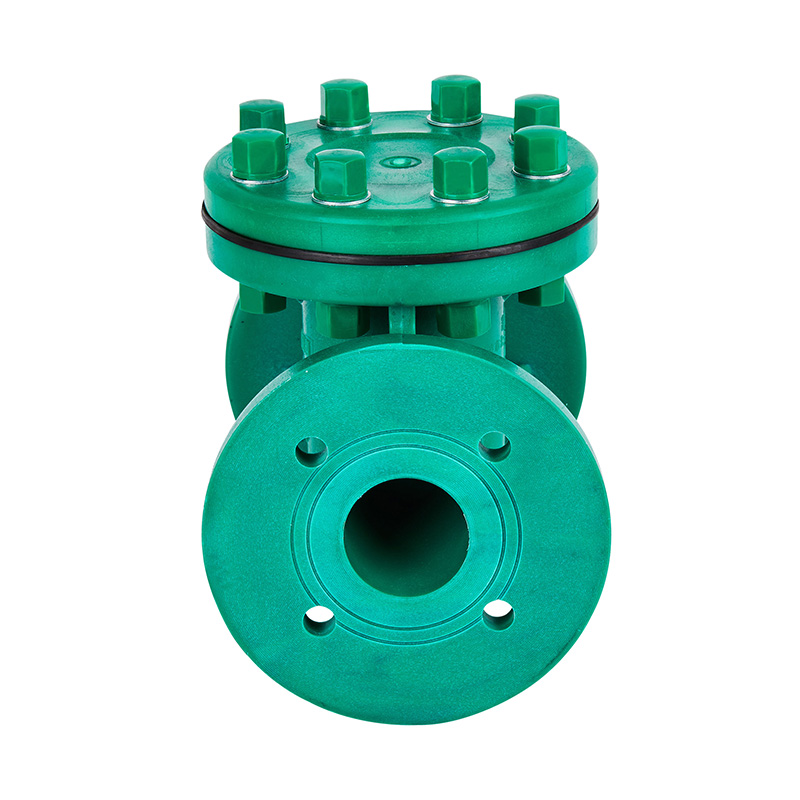

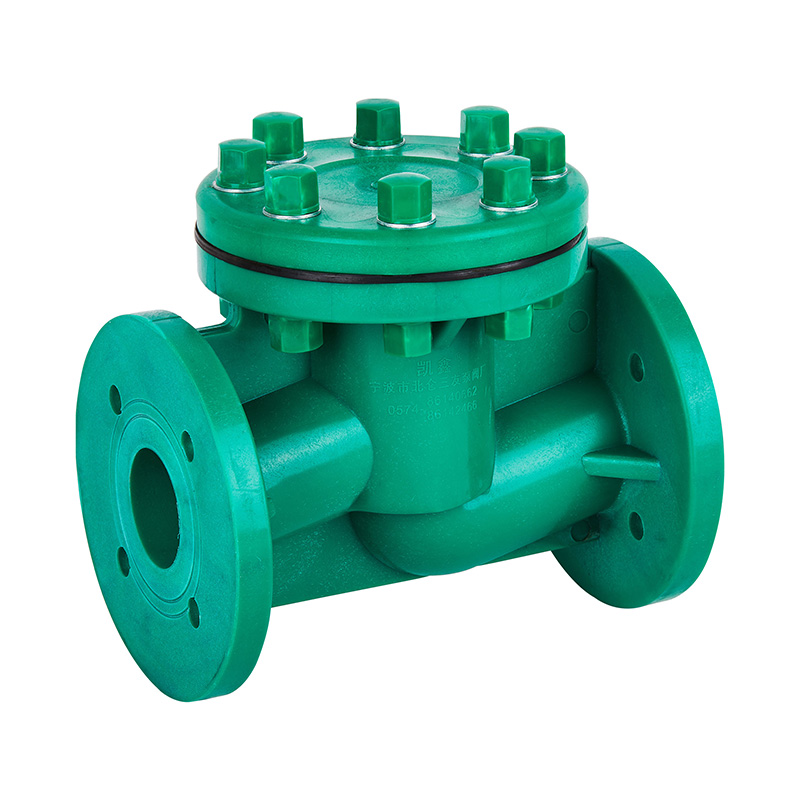

FRPP H41F-10S Life Type Check Valve DN40-80 GB Standard

Green Long Working Life Lift Type Check Valve Custom DN40-DN80 6 10 Inch Two Way Plastic FRPP Check Valve
Place of Origin: China
Brand Name: KXPV
Model Number: H41F-10S
Application: General
Material: Plastic
Temperature of Media: Medium Temperature, Normal Temperature
Pressure: Medium Pressure
Power: Manual
Media: Acid
Port Size: DN40-DN80
Structure: Check
Product name: Lift Check valve
Color: Green
Packing: Carton Box
Delivery Time: 7 Days
MOQ: 1 Piece

Pressure Class: 1.0Mpa(10bar)

Product Structural Features

1. Complete range of specifications
2. Reliable performance
3. Wide range of applications
4. Easy and reliable installation
5. Can be installed in any location



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

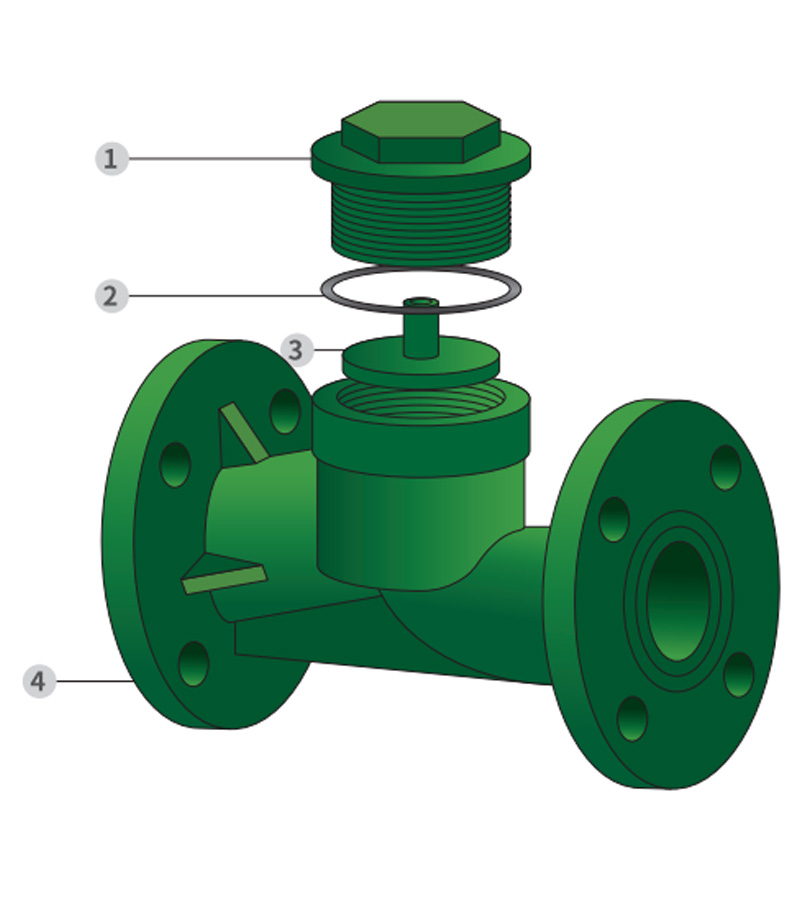

Part Material Table
No. Name Material
1 Bonnet FRPP
2 O-ring EPDM
3 Pistons PP+PTEE
4 Body FRPP

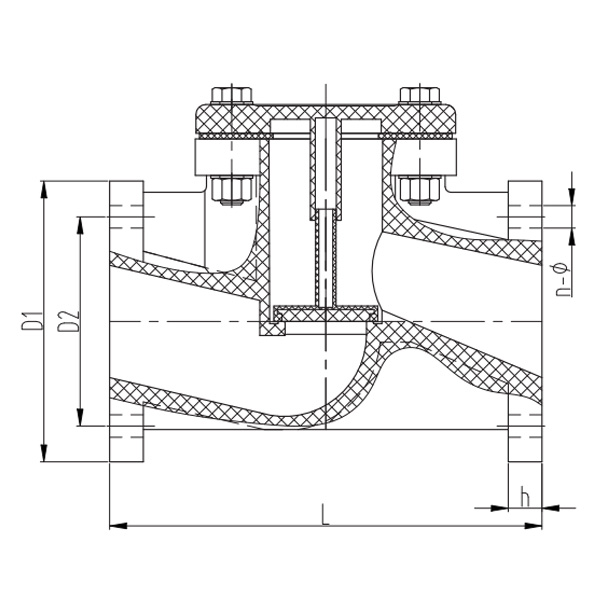

Life Type Check Valve Assembly Detail Drawing



Dimension List



 DN(mm) D d L b n-Φ
GB JIS ANSI GB JIS ANSI
40(11/2") 150  110  110  98.4  200  20  4-Φ18 4-Φ19 4-Φ16
50(2") 165  125  125  120.7  230  20  4-Φ18 4-Φ19 4-Φ18
65(21/2") 185  145  145  139.7  295  24  4-Φ18 4-Φ19 4-Φ18
80(3") 200  160  160  152.4  310  25  8-Φ18 8-Φ19 4-Φ18
