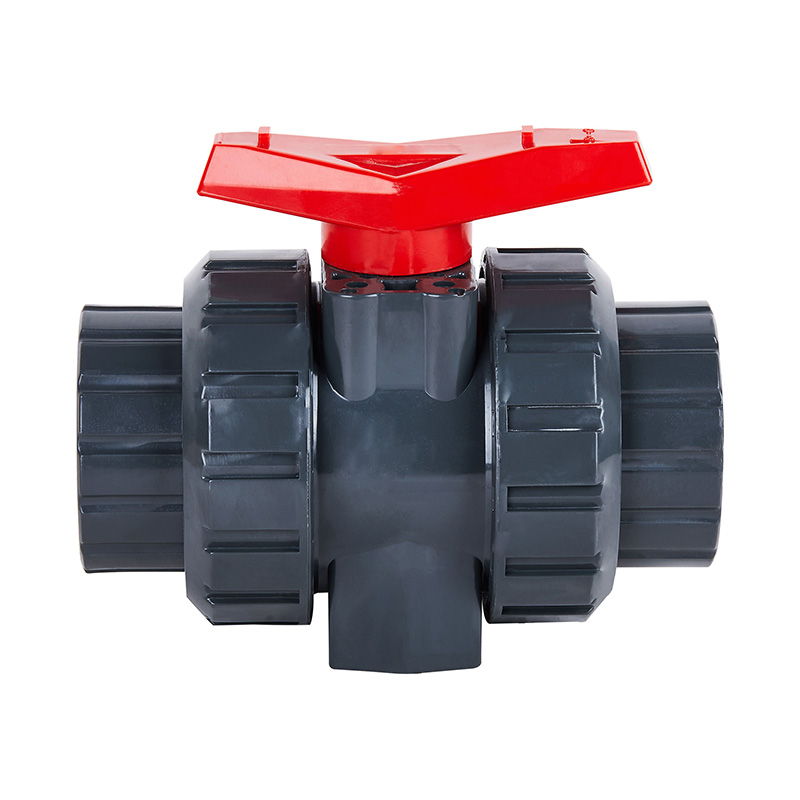

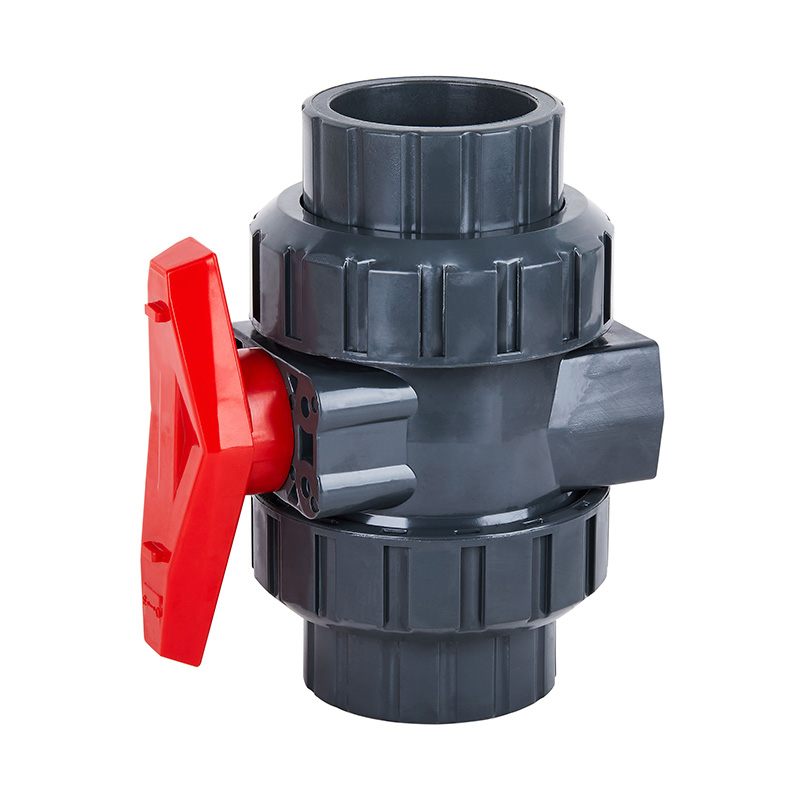

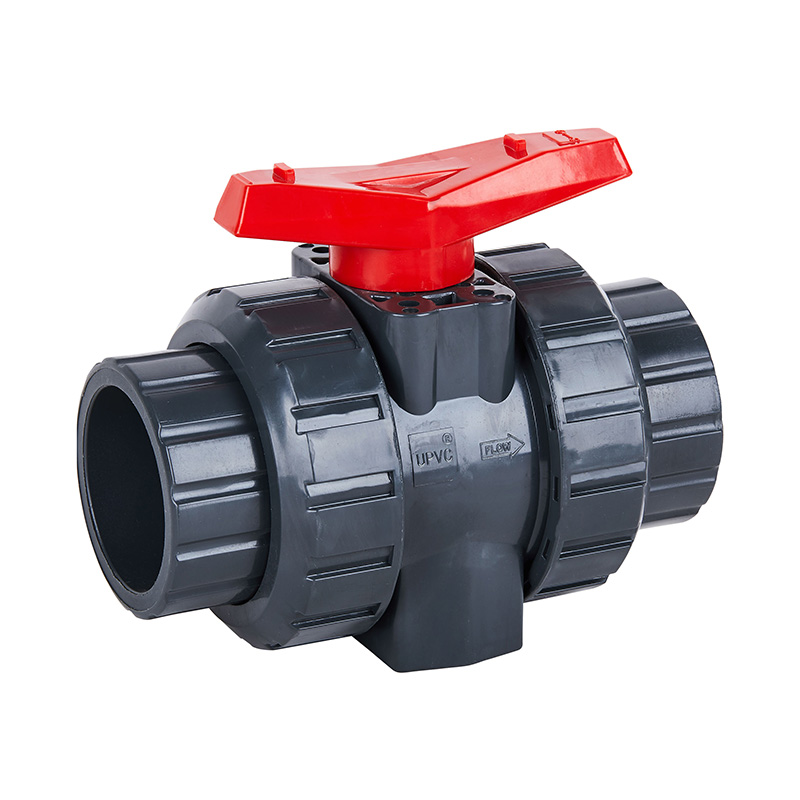

PVC-U Q61F-10U Socket Ball Valve DN15-100 GB Standard

Custom DN15 DN80 DN100 medium temperature PVC-U true double-union socket ball valve medium temperature manual DN15-100 1.0-1.6Mpa industrial plastic valve
Model: Q61F-10U, Q11F-10U
Application: General
Material: Plastic
Pressure: Low
Pressure Power: Manual
Media: Acids
Port Size: DN15-100, 1/2"-4" (20mm-110mm)
Structure: Ball
Product Name: Socket Union Ball Valve
Body Material: PVC-U
Connection: Union
Pressure Class: 1.0Mpa(10bar)
Packaging: Standard Carton Box
Design Standard: ISO STD
Seal Material: PTFE Seal
Delivery Time: 7 Days
MOQ: 1 piece

Product Structural Features

1. The PTFE seat of double-union ball valve can be adjusted tightly.
2. Double O-rings provide double leak protection.
3. Exquisite appearance, smooth surface, fine processing, full flow design.

App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Part Material Table

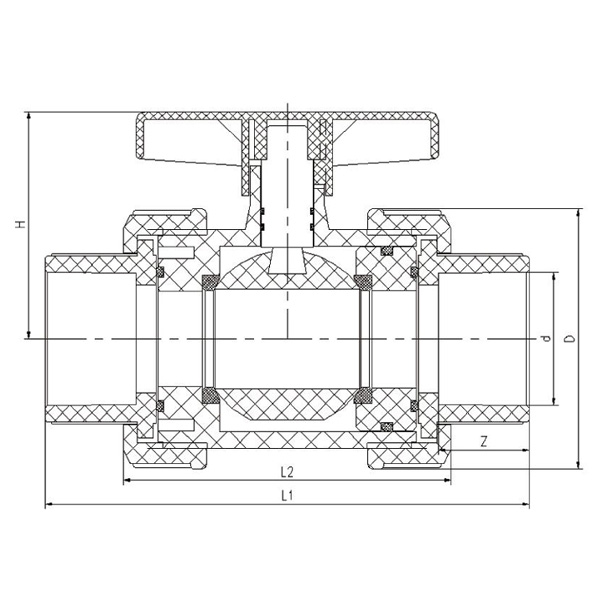

Socket Ball Valve Assembly Detail Drawing

No. Name Material
1 Handle Alloy material
2 Sealing ring EPDM,FPM
3 Stem FRPP,PVDF,PVC-U,PVC-C,PPH
4 Ball FRPP,PVDF,PVC-U,PVC-C,PPH
5 Sealing ring EPDM,FPM
6 Socket join FRPP,PVDF,PVC-U,PVC-C,PPH
7 Retaining Nut FRPP,PVDF,PVC-U,PVC-C,PPH
8 Seal seat FRPP,PVDF,PVC-U,PVC-C,PPH
9 Sealed ball PTFE
10 Body FRPP,PVDF,PVC-U,PVC-C,PPH
11 Sealing ring EPDM,FPM
12 Sealing ring EPDM,FPM

Dimension List

DN D d L1 L2 Z H
15  48  20  105  80  17.5  42
20  60  25  127  92.5  23  52
25  72  32  144.5  107  26.5  61.5
32  82.5  40  171.5  114  36  80
40  100.5  50  183.5  128.5  34.5  87.5
50  112  63  201.5  146.5  38  95
65  133  75  232.5  159.5  44.5  113.5
80  154  90  284  190  53  130
100  172  110  340  230  65.5  153.5
