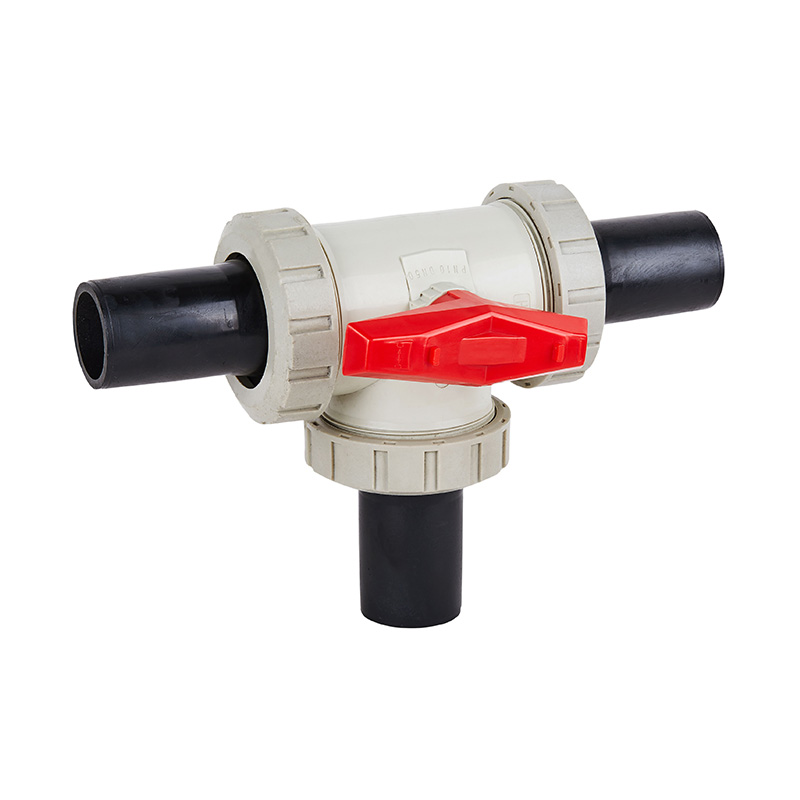

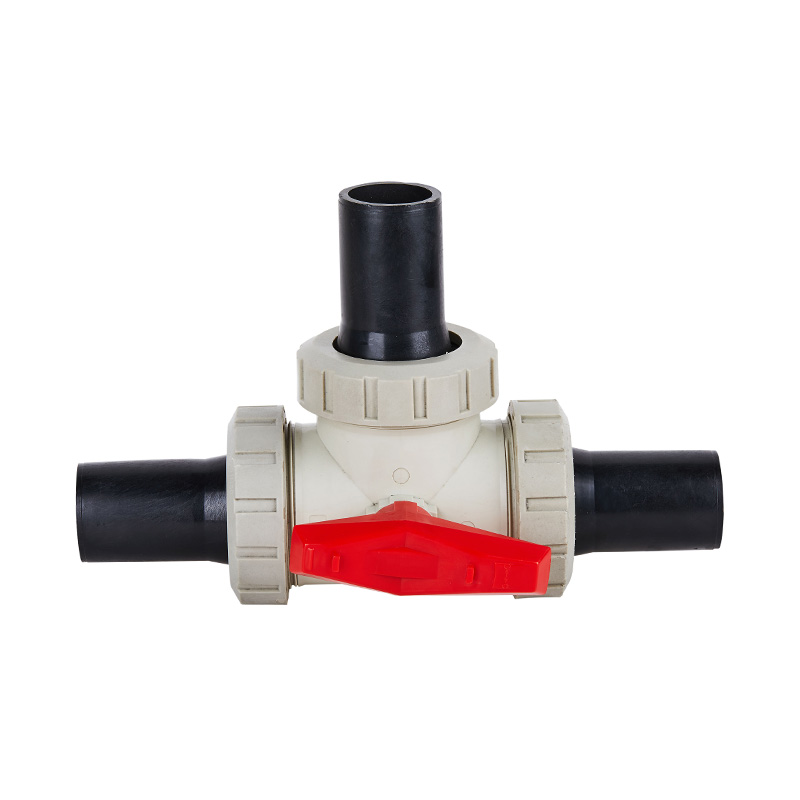

PPH PE Butt Welded Three-Way Ball Valve DN50 GB Standard

High Performance PPH Tee Manual Socket Ball Valve High Temperature DN15-DN100 Industrial Plastic Valve for Water Supply
Model Number: TQ41F-10S
Material: Plastic
Connection Form: Welding
Driving Mode: Manual
Nominal Pressure: 10kg
Channel: Straight Through Type
Structure: Fixed Ball Valve
Type: Fixed Ball Valve
Function: Bypass-Valve
Temperature Resistance: High Temperature
Application: Industrial Usage, Water Industrial Usage
Trademark: KXPV
Specification: DN15
Origin: Ningbo, Zhejiang

Pressure Class: 1.0Mpa(10bar)

Product Structural Features

1. The engineering plastic series ball valve body is injection-molded from corrosion-resistant PPH thermoplastic, offering strong corrosion resistance.
2. The PTFE seat for PPH and PE butt-weld three-way ball valves is adjustable in tightness.
3. Double O-rings provide dual leak protection.
4. Exquisite appearance, smooth surface, fine machining, and full-flow design.



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃
