PVC-U Universal Socket Flange DN15-600 1/2"-24" ANSI Standard

Newly Commonly Used Dark Gray PVC-U Universal Socket Flanged Pipe Fitting, DN15-DN600, for Chemical and Sanitary Applications, ANSI SCH80 Standard
Origin: China
Brand Name: KXPV
Material: Plastic
Process: Forged
Connection: Socket
Shape: Equal
Head Code: Square
Color: Dark Gray
Size: DN15-DN600
Application: Industry
Packaging: Carton
Working Pressure: 1 MPa
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1.Lightweight: PVC-U material has only 1/10 the weight of cast iron, making transportation and installation easy, thus reducing costs.
2.Excellent Chemical Resistance: PVC-U offers excellent resistance to acids and alkalis, except for near-saturated strong acids and bases.
3.Durable: PVC-U has outstanding weather resistance and is not susceptible to corrosion by bacteria or fungi.
4.Non-conductive: PVC-U material does not conduct electricity, nor is it subject to corrosion from electrical currents, thus eliminating the need for secondary processing. It is non-flammable and will not support combustion, so there are no fire hazards.
5.Low Resistance, High Flow Rate: The smooth inner walls minimize fluid flow loss, and dirt is not easily attached to the smooth pipe surface, making maintenance easier and reducing maintenance costs.
6.Easy Installation, Low Cost: Cutting and connecting PVC-U pipes is simple. PVC glue connections are proven to be safe, reliable, easy to operate, and cost-effective.

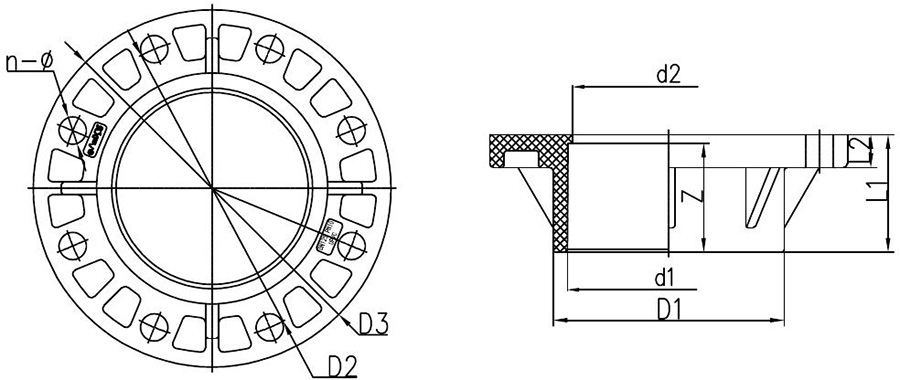

UPVC Flange

Specification D1
(mm)
D2
(mm)
D3
(mm)
d1
(mm)
d2
(mm)
H
(mm)
h
(mm)
Z
(mm)
n-Ф
(mm)
1/2"(15) 89 60 31.5 21.34 18 27 16 22.5 4-Ф16
3/4"(20) 95 70 37 26.67 23 30.5 18 25.5 4-Ф16
1"(25) 108 79 45 33.4 29 34.5 18 29 4-Ф16
1¼"(32) 117 89 54.5 42.16 38 37.5 18 32 4-Ф16
1½"(40) 127 98 61 48.26 44 40.5 20 35 4-Ф16
2"(50) 152 121 74 60.32 55 44.5 20 38.5 4-Ф19
2½"(65) 178 140 90 73.02 68 51 20 45 4-Ф19
3"(80) 191 152 107 88.9 83 54.5 21 48 4-Ф19
4"(100) 229 191 134 114.3 109 64 24 57.5 4-Ф19
5"(125) 254 216 163 141.3 134 73.5 25 67 8-Ф22
6"(150) 279 241 192 168.28 160 83.5 25 76.5 8-Ф22
8"(200) 343 299 247 219.08 210 109 29 102 8-Φ22
