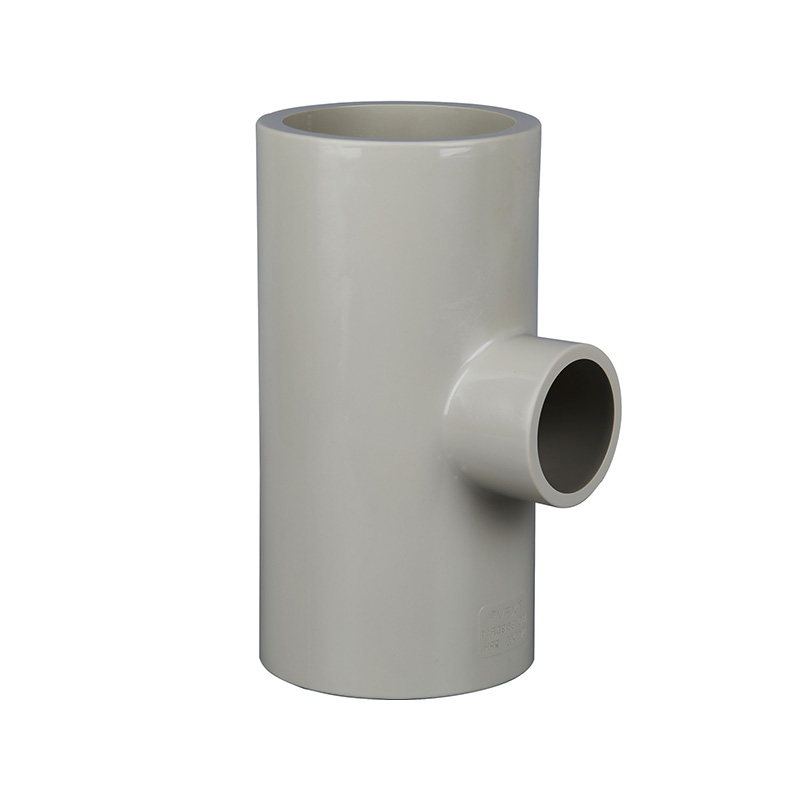

PPH Butt Weld Reducing tee DN50*40-400*350 GB Standard

High quality Earthy Yellow PPH Reducing Tee Female Socket plastic pipe fitting for chemical and water usage
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection:Socket
Shape: Reducing
Head Code: Round
Color: Earthy Yellow
Application: Industrial & Chemical
Material: PPH
Delivery Time: 7 Days
MOQ: 1 Piece
Supply Ability: 10000 Piece / Pieces per Month

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. High Crystallinity
Made from a single polypropylene monomer, the molecular chain contains no ethylene monomers; the molecular chain is highly regular and offers a long service life.
2. Excellent Corrosion Resistance
It can withstand corrosion from high-concentration acids and bases within a pH range of 1-14.
3. Heat-Resistant, Insulating, and Energy-Saving
It can operate in temperatures from -20°C to 110°C. Its low thermal conductivity provides excellent insulation performance.
4. Reliable Connection
The hot-melt joints are stronger than the pipe itself, preventing them from breaking due to soil movement or loads.
5. Excellent Construction Performance
This product is lightweight, features a simple welding process, is easy to install, and offers a low overall cost, suitable for complex process piping. PPH piping systems are widely used in industries such as electroplating, etching, chemicals, pharmaceuticals, wastewater treatment, and environmental engineering.

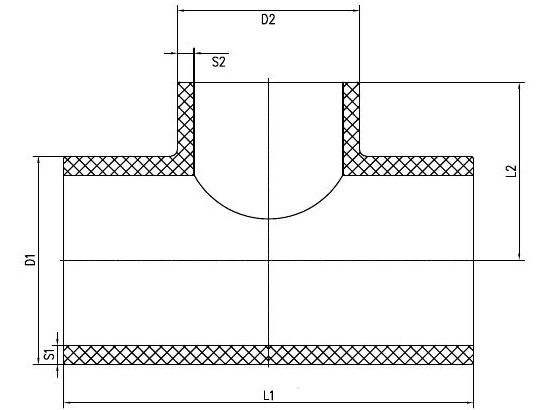

PPH Butt Welding Reducing Tee

DN D1 S1 D2 S2 L h
50X40 63  5.8  50  4.6  149  66.5
65X40 75  6.9  50  4.6  175  72.5
65X50 75  6.9  63  5.8  175  80.5
80X40 90  8.2  50  4.6  181  80
80X50 90  8.2  63  5.8  181  88
80X65 90  8.2  75  6.9  181  90.5
100X50 110  10  63  5.8  223  98
100X65 110  10  75  6.9  223  100.5
100X80 110  10  90  8.2  223  105
125X50 140  12.8  63  5.8  293  112.5
125X65 140  12.8  75  6.9  293  112.5
125X80 140  12.8  90  8.2  293  112.5
125X100 140  12.8  110  10  293  117
150X80 160  14.6  90  8.2  315  124
150X100 160  14.6  110  10  315  130
150X125 160  14.6  140  12.8  315  137
200X100 225  20.5  110  10  400  156
200X125 225  20.5  140  12.8  400  162
200X150 225  20.5  160  14.6  400  168
