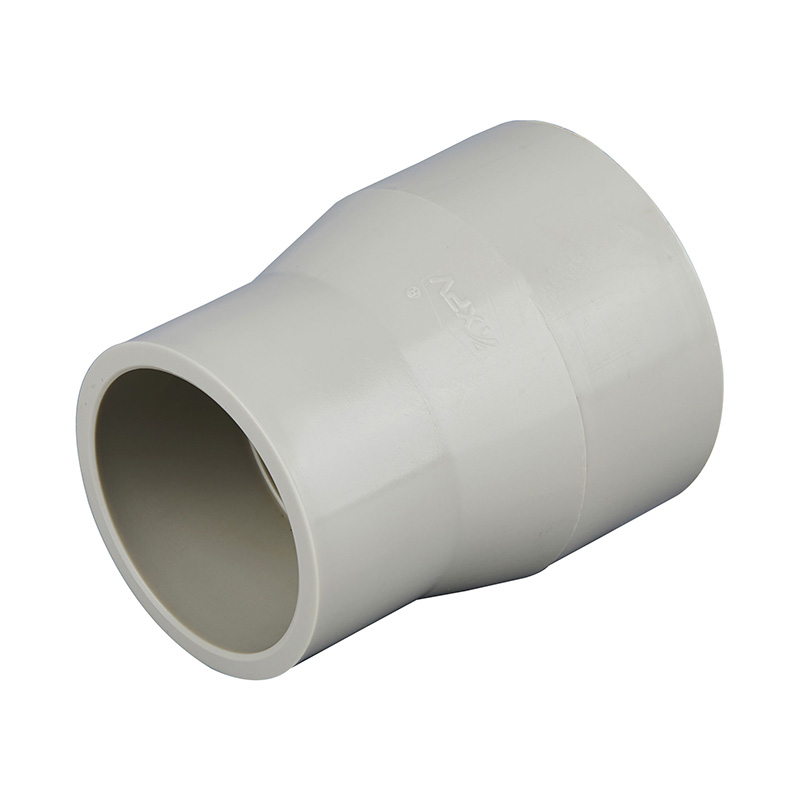

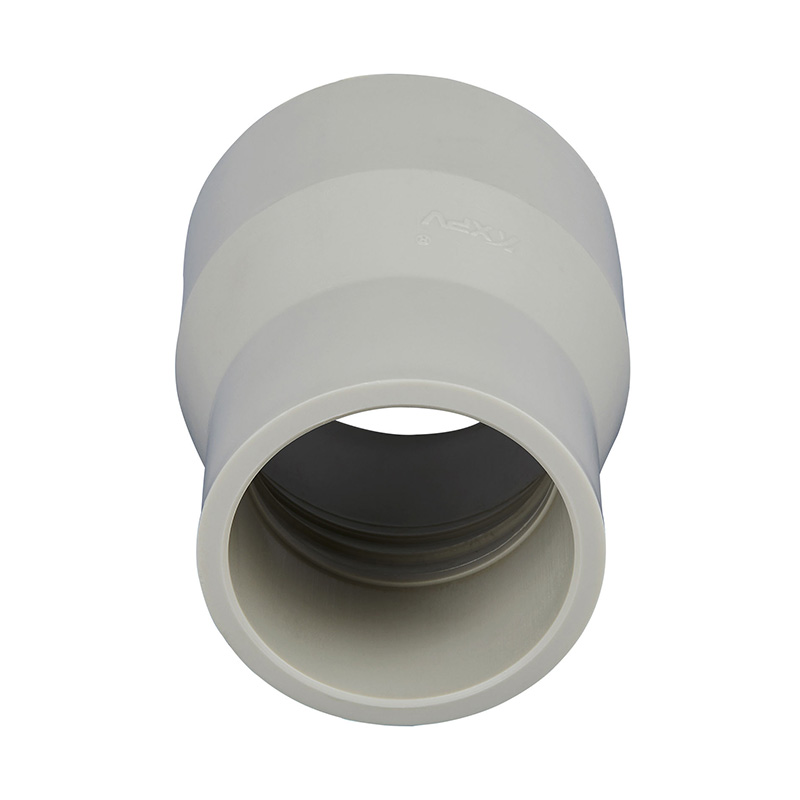

PPH Hot Melt Socket Reducer DN20*15-100*80 GB Standard

PPH Hot Melt Socket Reducer DN20*15-100*80 GB Standard

Earthy Yellow  Hot Melt Socket PPH Reducers DN20*15-100*80 Custom 4 inches Industrial plastic pipe cap fittings for chemical and water supply
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: socket
Material: PPH
Shape: Equal
Head Code: Square
Color: Earthy Yellow
Size: DN20*15-100*80
Application: Industry
Packing: Carton Box
Working Pressure: 1.6MPA
Delivery Time: 7 Days
MOQ: 1 Piece

Contact Us
PREV：PPH Butt-Weld Reducer DN50*40-300*250 GB Standard
NEXT：PPH Hot Melt Socket End Cap DN15-100 GB Standard
App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. High Crystallinity
Made from a single polypropylene monomer, the molecular chain contains no ethylene monomers; the molecular chain is highly regular and offers a long service life.
2. Excellent Corrosion Resistance
It can withstand corrosion from high-concentration acids and bases within a pH range of 1-14.
3. Heat-Resistant, Insulating, and Energy-Saving
It can operate in temperatures from -20°C to 110°C. Its low thermal conductivity provides excellent insulation performance.
4. Reliable Connection
The hot-melt joints are stronger than the pipe itself, preventing them from breaking due to soil movement or loads.
5. Excellent Construction Performance
This product is lightweight, features a simple welding process, is easy to install, and offers a low overall cost, suitable for complex process piping. PPH piping systems are widely used in industries such as electroplating, etching, chemicals, pharmaceuticals, wastewater treatment, and environmental engineering.

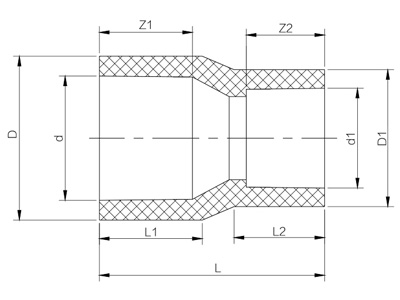

PPH Hot Melt Socket Reducer

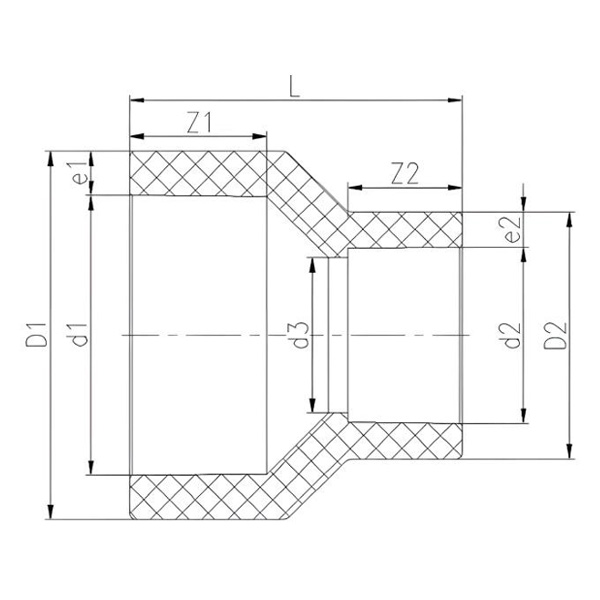

DN D1 D2  d1 d2 d3 L Z1 Z2 e1 e2
20*15 35  29   25  20  16  40  18  15  5  4.5
25*15 43  29   32  20  16  46  20  15  5.5  4.5
25*20 43  35   32  25  20  47  20  18  5.5  5
32*20 51  35   40  25  20  53  22  18  5.5  5
32*25 51  43   40  32  27  52  22  20  5.5  5.5
40*20 64  35   50  25  20  60  24  18  7  5
40*25 64  43   50  32  27  58  24  20  7  5.5
40*32 64  51   50  40  35  56  24  22  7  5.5
50*25 82  44   63  32  27  70  28.5  20.5  9.5  6
50*32 82  52   63  40  36  68  28.5  22.5  9.5  6
50*40 82  65   63  50  46  65  28.5  24.5  9.5  7.5
65*32 94  52   75  40  36  76  31  22  9.5  6
65*40 94  65   75  50  45  73  31  24  9.5  7.5
65*50 94  82   75  63  57  71  31  28  9.5  9.5
80*40 115.5  66   90  50  45  85  35  24  13  8
80*50 115.5  82.5   90  63  56  83  35  28  13  10
80*65 116  95   90  75  68  80  35  31.5  13  10
100*40 134  64.5   110  50  45  99  41  24  12  7.5
100*50 134  81.5   110  63  56.5  97  41  28  12  9.5
100*65 134  93   110  75  67.5  95  41  31  12  9
100*80 136  116   110  90  82  93.5  41  36  13  13
