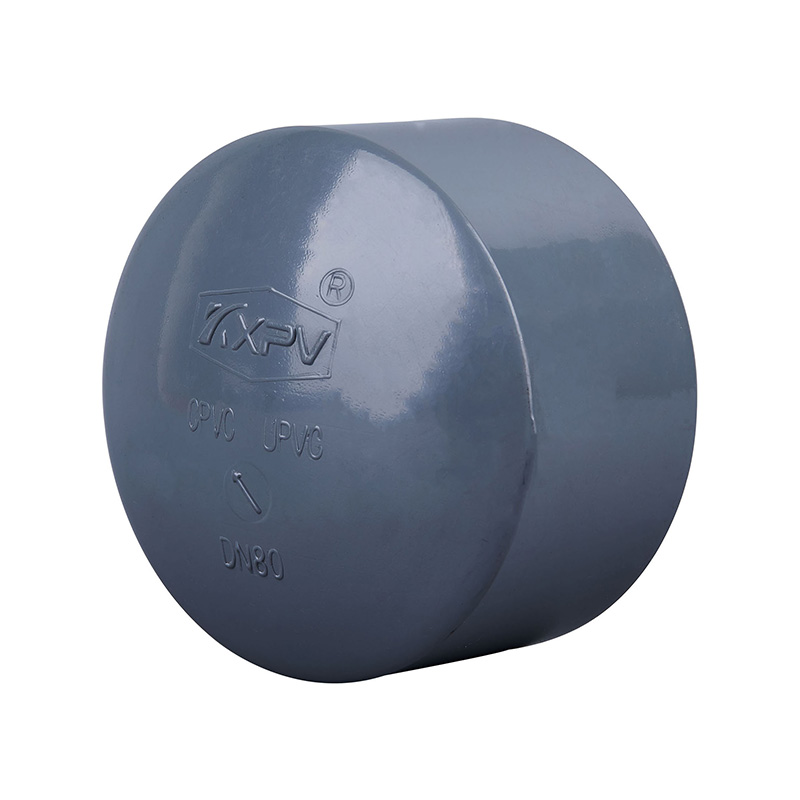

PVC-C End Cap DN15-200 GB Standard

Light Gray PVC-C Pipe End Cap DN15-DN200 Customized 10 Inch 12 inch industrial plastic pipe cap fittings for chemical and water supply
Place of Origin: China
Brand Name: KXPV
Technics: Forged
Connection: socket
Material: PVC-C
Color: Gray-Black
Shape: Equal
Head Code: Square
Sizes: DN15-DN200
Application: Industry
Packing: Carton Box
Working Pressure: 1.6Mpa
Delivery Time: 7 Days
MOQ: 1 Piece

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Superior Chemical Resistance: Wide operating temperature range -20°C to 95°C, heavy ion content in the medium meets ultrapure water standards, and hygienic properties meet national health standards.
2. Excellent strength, toughness, and chemical corrosion resistance.
3. Durability: Excellent aging and UV resistance significantly extend the service life of other piping systems.
4. Low thermal conductivity: Approximately 1/200 that of steel; self-extinguishing flame retardancy.
5. Lightweight: Lightweight, equivalent to 1/5 of steel pipe and 1/6 of copper pipe.
6. Low resistance, high flow rate: Smooth, clean pipe surface, minimizes friction and adhesion when conveying fluids.
7. Easy installation, low cost: Adhesive and threaded connections are available, with glue being the most convenient.

Dimension List

DN D d L Z e
15  28  20  21.3  16
20  32  25  24.3  19  3.5
25  41  32  29.1  22  4.5
32  51  40  34.1  27  5.5
40  63  50  40.9  31  6.5
50  79  63  52.4  38
65  92  75  63.4  44  8.5
80  110  90  76.6  51  10
100  132  110  83.8  61  11
125  162  140  104  76  11
150  183  160  114.8  86  11.5
200  250  225  154  118.5  12.5
250  308  280  190  146  14
300  346  315  218  164  15.5
350  392  355  230  184  18.5
400  442  400  246  206  21
