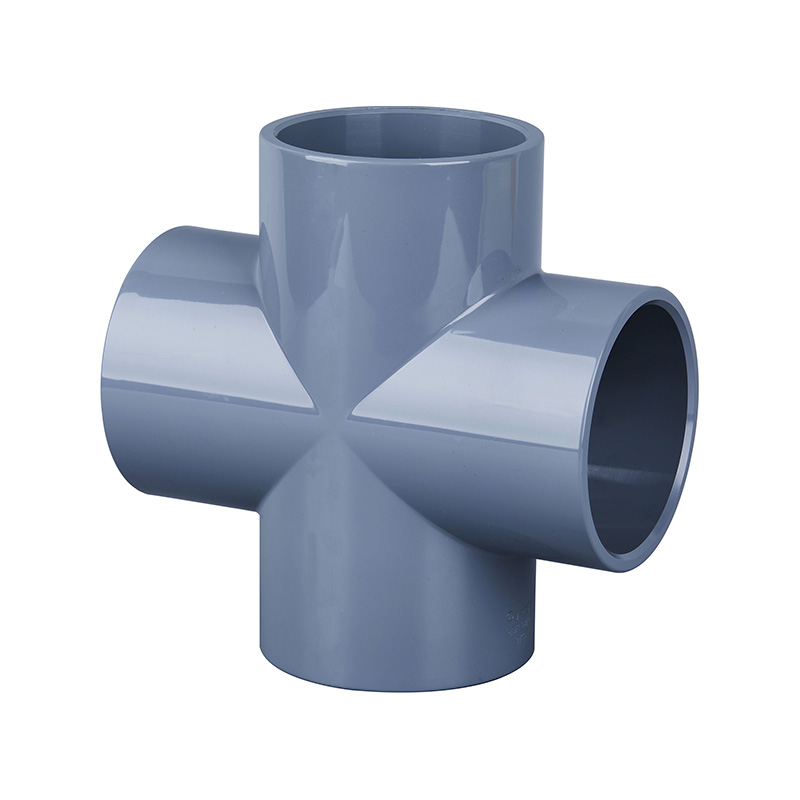

PVC-C Cross DN15-200 GB Standard

Competitive Price Light Gray PVC-C Cross Seamless and Cross-Tie Fittings DN15-DN600 Sanitary and Water Supply Plastic Pipe Fittings
Place of Origin: China
Brand Name: KXPV
Material: PVC-C
Technics: Forged
Connection: socket
Shape: Equal
Head Code: Square
Color: Light Gray
Sizes: DN15-DN600
Application: Industry
Packing: Carton Box
Delivery Time: 7 Days
MOQ: 1 Piece
Supply Ability: 10000 Piece / Pieces per Month

App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Superior Chemical Resistance: Wide operating temperature range -20°C to 95°C, heavy ion content in the medium meets ultrapure water standards, and hygienic properties meet national health standards.
2. Excellent strength, toughness, and chemical corrosion resistance.
3. Durability: Excellent aging and UV resistance significantly extend the service life of other piping systems.
4. Low thermal conductivity: Approximately 1/200 that of steel; self-extinguishing flame retardancy.
5. Lightweight: Lightweight, equivalent to 1/5 of steel pipe and 1/6 of copper pipe.
6. Low resistance, high flow rate: Smooth, clean pipe surface, minimizes friction and adhesion when conveying fluids.
7. Easy installation, low cost: Adhesive and threaded connections are available, with glue being the most convenient.

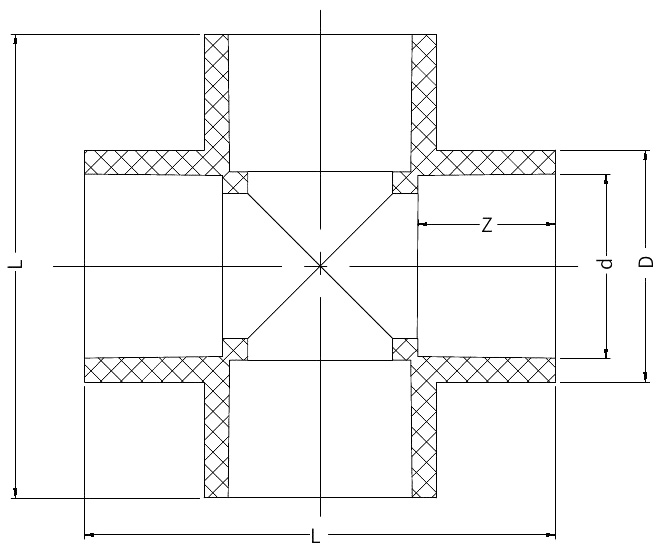

Dimension List

DN(mm) Dimension(mm)
D d1 d2 L Z e
25  40  32  26  80  22
32  50  40  33  98  26
40  61  50  47  120  31  5.5
50  75  63  59  148  37.5
65  88  75  71  169  44  6.5
80  104  90  86  198  51
100  127  110  105  238  61  8.5
125  161  140  135  298  76  10.5
150  184  160  154  338  86  12
200  249  225  219  480  118.5  12
