| App Temperature Bound List |
| Material | Medium temperature℃ | Material | Medium temperature℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVC-C | -20℃~+95℃ | PVC-U | -5℃~+45℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| FRPP | -20℃~+120℃ | PPH | -20℃~+110℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVDF | 40℃~+150℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Structural Features |
1. Superior Chemical Resistance: Wide operating temperature range -20°C to 95°C, heavy ion content in the medium meets ultrapure water standards, and hygienic properties meet national health standards.
2. Excellent strength, toughness, and chemical corrosion resistance.
3. Durability: Excellent aging and UV resistance significantly extend the service life of other piping systems.
4. Low thermal conductivity: Approximately 1/200 that of steel; self-extinguishing flame retardancy.
5. Lightweight: Lightweight, equivalent to 1/5 of steel pipe and 1/6 of copper pipe.
6. Low resistance, high flow rate: Smooth, clean pipe surface, minimizes friction and adhesion when conveying fluids.
7. Easy installation, low cost: Adhesive and threaded connections are available, with glue being the most convenient.

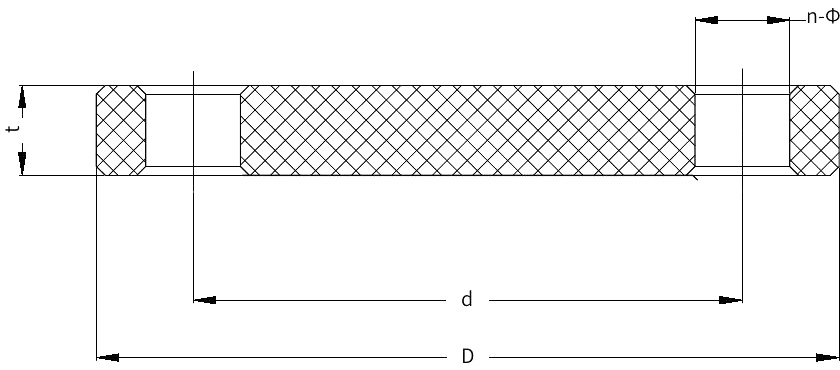

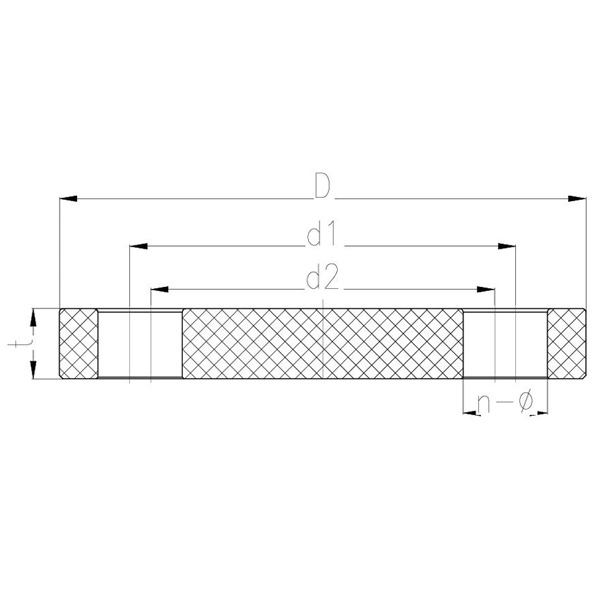

| Dimension List |

| DN | D | d1 | d2 | t | n-Φ | |||||||||||||||||||||||
| 15 | 95 | 70 | 60 | 14 | 4-Φ15X20 | |||||||||||||||||||||||
| 20 | 105 | 75 | 70 | 18 | 4-Φ15X17.5 | |||||||||||||||||||||||
| 25 | 125 | 90 | 79 | 18 | 4-Φ15X20.5 | |||||||||||||||||||||||
| 32 | 140 | 100 | 89 | 20 | 4-Φ18X23.5 | |||||||||||||||||||||||
| 40 | 150 | 112 | 98 | 20 | 4-Φ18X25 | |||||||||||||||||||||||
| 50 | 165 | 127.5 | 120 | 20 | 4-Φ18X21.75 | |||||||||||||||||||||||
| 65 | 185 | 148 | 140 | 20 | 4-Φ18X22 | |||||||||||||||||||||||
| 80 | 200 | 163 | 150 | 20 | 8-Φ18X24.5 | |||||||||||||||||||||||
| 100 | 229 | 195 | 175 | 22 | 8-Φ18X28 | |||||||||||||||||||||||
| 125 | 254 | 220 | 210 | 22 | 8-Φ18X23 | |||||||||||||||||||||||
| 150 | 285 | 246 | 240 | 24 | 8-Φ22X25 | |||||||||||||||||||||||
| 200 | 347 | 305 | 295 | 32 | 8-Φ23X28 | |||||||||||||||||||||||
| 200 | 341 | 296 | 32 | 12-Φ22 | ||||||||||||||||||||||||
| 250 | 406 | 369 | 350 | 34 | 12-Φ23X32.5 | |||||||||||||||||||||||
| 300 | 445 | 400 | 40 | 12-Φ23 | ||||||||||||||||||||||||
| 350 | 505 | 460 | 40 | 16-923 | ||||||||||||||||||||||||
| 400 | 570 | 515 | 40 | 16-Φ27 | ||||||||||||||||||||||||
| 450 | 625 | 565 | 38 | 20-Φ26 | ||||||||||||||||||||||||
| 500 | 670 | 620 | 40 | 20-Φ27 | ||||||||||||||||||||||||
| 600 | 800 | 740 | 720 | 50 | 20-Φ30X40 | |||||||||||||||||||||||
